Product Introduction:

The Switchgear Integrated Online Monitoring System is a comprehensive condition monitoring solution consisting of three core modules: multi-type sensors, a local signal acquisition & monitoring host, and back-end analysis software. Designed specifically for medium and high-voltage switchgear (including switch cabinets, ring main units, box-type substations, and distribution cabinets), this system realizes real-time, continuous, and non-intrusive monitoring of the operating status of switchgear equipment, effectively solving the pain points of traditional manual inspection such as low efficiency, lagging fault discovery, and high labor costs. It provides full-cycle technical support for the safe, stable, and efficient operation of switchgear, and is widely used in power grids, industrial and mining enterprises, new energy power stations, rail transit, data centers and other fields that rely on high-voltage switchgear for power supply.

·Monitoring and analysis software deployed on the main control room server (supports remote WEB access)

·Over-limit detection of discharge amplitude and frequency, discharge (fault) type classification, and insulation condition trend prediction

·Supports multiple wired/wireless data transmission methods

·Supports standard protocols including Modbus, ModbusTCP, as well as proprietary protocol access

·Compatible with UHF, AA (Acoustic Emission), TEV, HFCT sensors, surface temperature, contact temperature, dual-spectrum cameras, etc.

·Equipped with high-speed AD and FLASH chips, supporting 12-bit resolution high-speed sampling and data storage

·Combined application of band-pass filtering technology and noise identification & elimination algorithms to effectively identify partial discharge (PD) signals

·High sensitivity for accurate detection of partial discharge signals

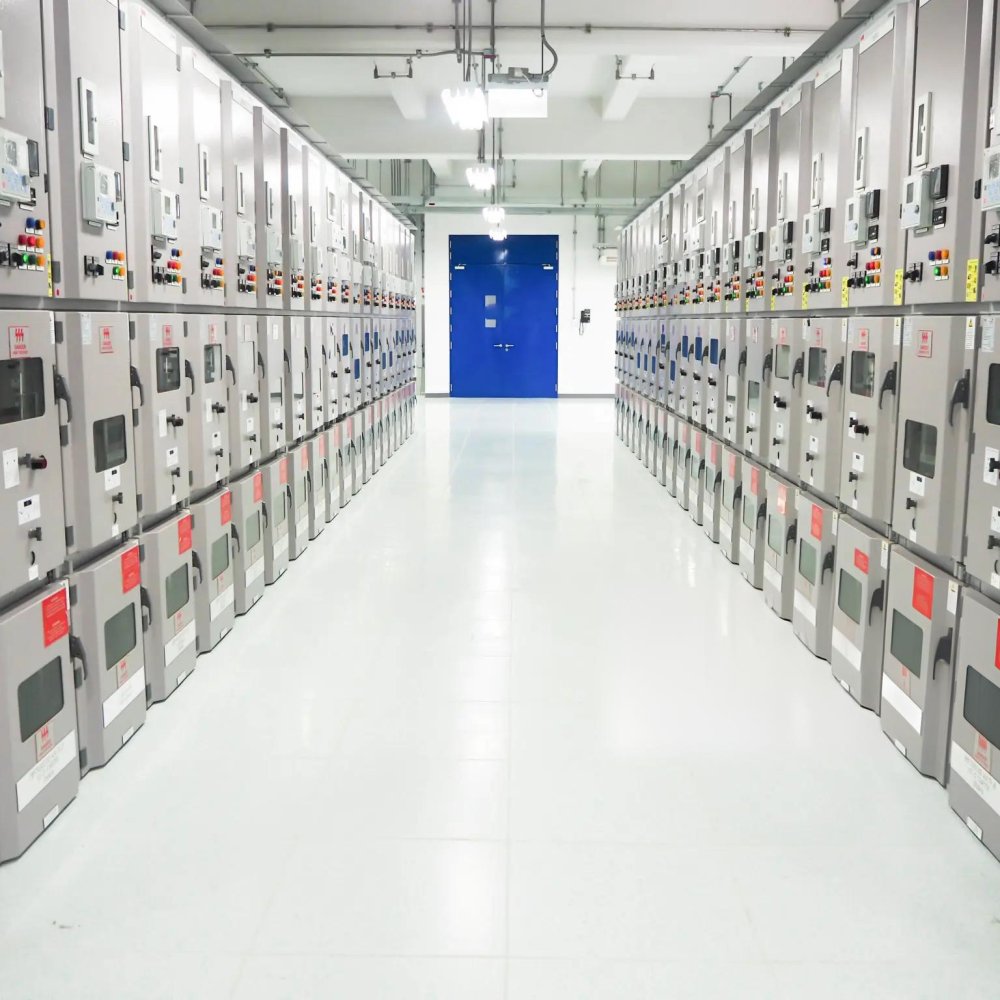

Power Grid SubstationsReal-time online monitoring for MV/HV switchgear in conventional, smart and unattended substations to ensure grid operational safety.

Industrial & Mining EnterprisesSuitable for factory power distribution rooms, steel plants and chemical plants, guaranteeing stable power supply and continuous production.

New Energy Power StationsApplied to wind farms, photovoltaic stations and energy storage stations for monitoring switchgear in outdoor and harsh working environments.

Data Centers & Commercial Complexes24/7 health monitoring for key switchgear of data centers and high-rise buildings, preventing sudden power failure and hidden insulation risks.

TECHNICAL PARAMETERS

Equipment Name	Key Specifications
Wireless Temperature Sensor	Measurement Range: -45 to 125°CAccuracy: ±0.5°CProtection Class: IP68
Spatial UHF Sensor	Detection Frequency Range: 300–1500 MHzEffective Height: ≥10 mmDynamic Range: ≥40 dB
Smart Wireless Concentrator	Power Supply: DC 12V / AC 220VMounting Method: DIN rail mountingOperating Temperature: -40°C to +80°CPower Consumption: <30WRelative Humidity: ≤99%Number of Channels: 4–16
Dual-lens Camera	Measurement Range: -20°C to 150°CMeasurement Accuracy: ±2°C or ±2%Reading Range Resolution: ≥150 × 100 pxField of View (FOV): 60° × 45°
