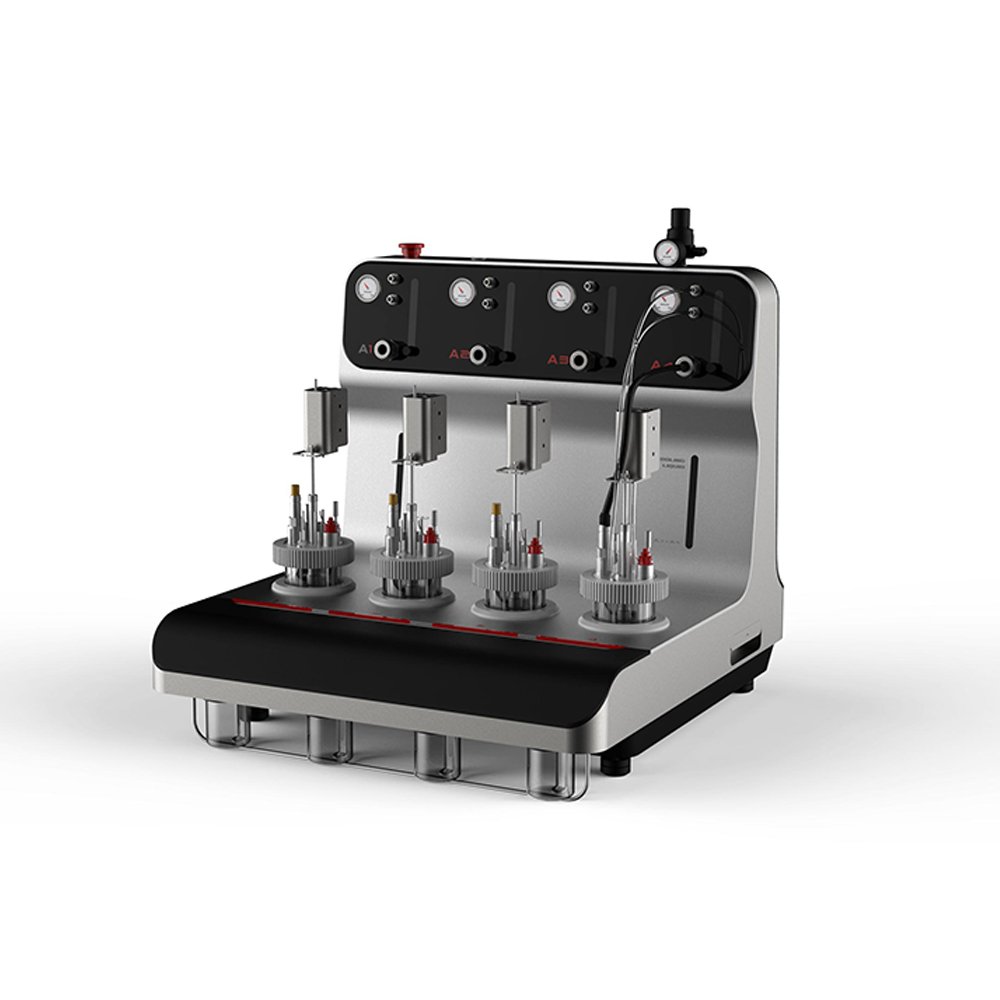

Available in 500ml and 1L volume
Supports 1–8 glass vessels simultaneously
Single-walled glass vessel
Temperature control： bottom-mounted semiconductor anhydrous temperature control
Agitation: Mechanical stirring or magnetic stirring is available, with support for interchangeable stirring paddles of various types.
Feed: 4 peristaltic pumps, expandable configuration
Intake：single-air-intake system, with optional multi-gas-intake system. Supports upgrade to automatic air-intake system.
Unified control: temperature, agitation, pH, DO, antifoam, feeding
PC software control, one-touch fermentation initiation, one-touch parameter adjustment.
All‑in‑one controller for reliable process control
- High-throughput parallel glass bioreactor with fully integrated design, professionally developed for laboratory microbial culture, high-efficiency strain screening and fermentation bioprocess optimization, widely applied in biotech R&D laboratories, scientific research institutions and university academic research scenarios

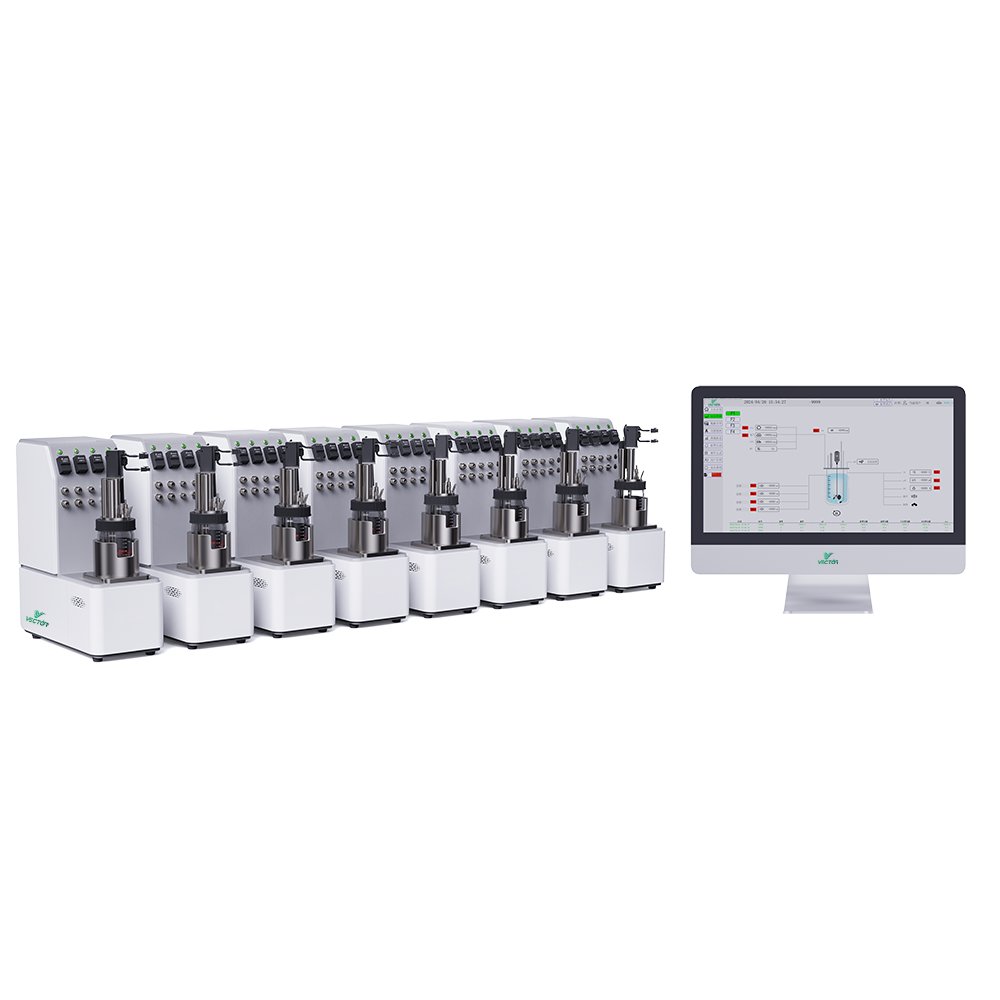

- Multi-unit parallel fermentation system controlled by single independent PC, realizing synchronous operation of multiple bioreactors, simplifying experimental operation, ensuring stable and comparable parallel experimental data, and greatly improving the efficiency of strain screening and process development
- Small-volume lab fermentation vessel available in 500mL and 1L standard specifications, perfectly tailored for high-throughput screening experiments and small-scale fermentation process optimization tasks
- 1–8 parallel bioreactor support allows one-batch multi-condition simultaneous experiments, effectively shortening R&D cycles, accelerating experimental iteration and greatly boosting laboratory research progress
Strain screening and comparison
Medium formulation optimization
Fermentation process development
Parallel batch and fed-batch culture
Culture condition screening
Growth curve and stability analysis
Item | Details |
Vessel | Single-wall glass vessel (optional) Material:High-quality borosilicate glass Total volume: 500ml/1L Working Load Rate:30%~70% Number of parallel units :2-8 |
Agitation | Magnetic stirring Speed:0-2000rpm Blades:all alternative impeller styles support customization |
Temp. | Temperature control range: Cooling water +5°C to 65°C Temperature sensor: PT100 platinum electrode |
Feed | Standard 4 pumps; fixed speed or variable speed optional |
Gas | Standard: single air intake with MFC Optional: multiple independent gas intakes(manual or automatic control) |
Control System | Temperature, agitation speed, pH, DO, antifoam, and feeding control Controlled via PC software, it offers a one-click fermentation function.Operation is simple and saves time. |
Sterilization | Autoclaveable |
Expandable | ORP electrode, biomass sensor, precision weighing balance, off-gas analyzer (global & domestic brand options available) |
A：The multi-vessel parallel design supports simultaneous batch experiments under different parameter conditions, thereby significantly reducing screening time and providing reproducible, comparable experimental data for strain and process research.
A：The system supports the simultaneous operation of 1–8 glass reactors, offering standard 500 mL and 1 L small-volume reactor options suitable for high-throughput laboratory screening.
A：No. All parallel glass reactors are centrally controlled by a single computer, which uniformly monitors, records, and adjusts parameters, thereby simplifying laboratory operations.
A： It supports both bacterial and cell cultures.
A: This equipment is ideal for high-throughput strain screening, comparative microbial culture, and small-scale bioprocess optimization. It is widely used in university laboratories, contract research organizations (CROs), and biotechnology R&D institutions.
VEC-JG-X is a fully automatic, integrated high-throughput system. A single controller can operate multiple glass vessels simultaneously, making it ideal for parallel and comparative fermentation experiments in the laboratory.
