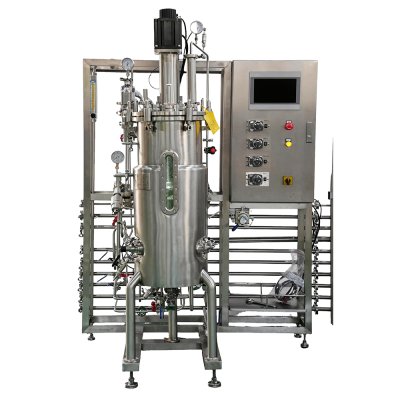

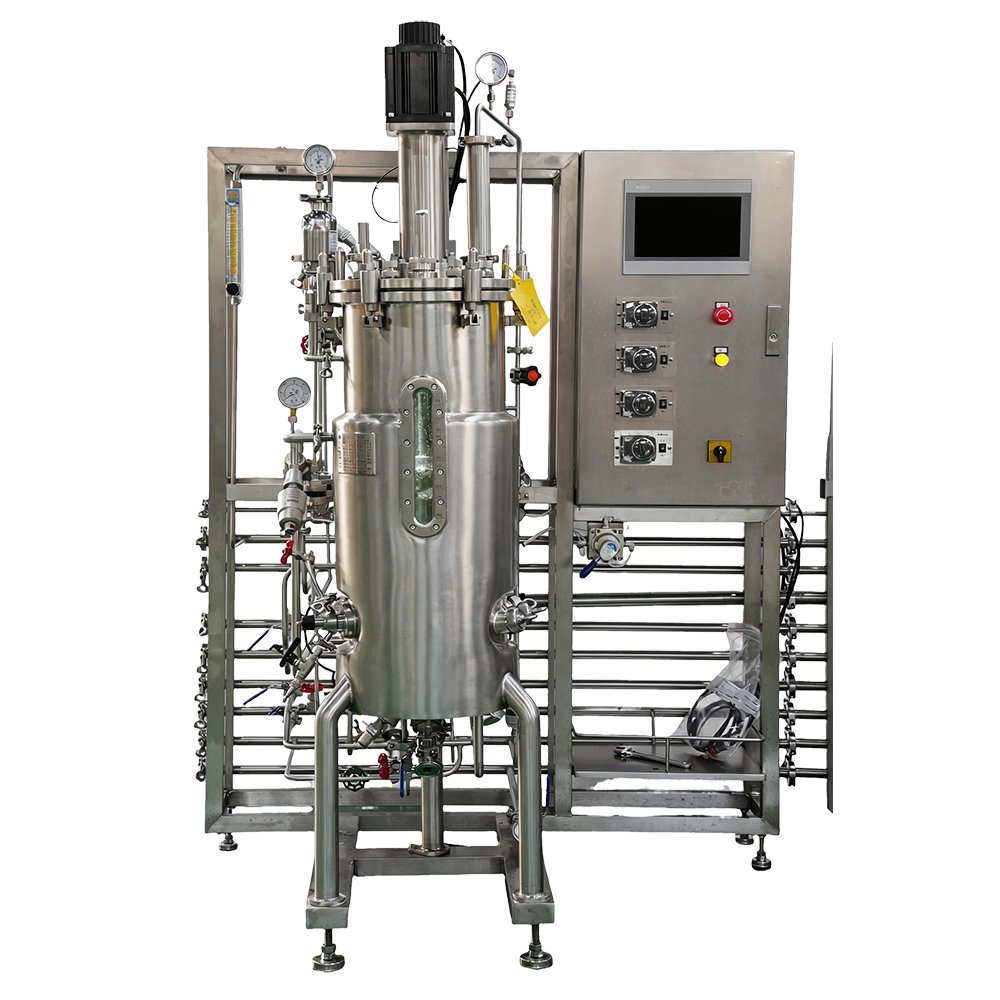

Customizable 5–10,000 L total volume stainless steel bioreactor
Constructed from SUS316L stainless steel with an internal surface finish of Ra ≤ 0.4 μm to minimize contamination risk.
Mechanical stirring or magnetic stirring is available, with support for interchangeable stirring paddles of various types.
Standard 4×n peristaltic pumps, expandable configuration
Standard single-air-intake system, with optional multi-gas-intake system. Supports upgrade to automatic air-intake system.
Unified control: temperature, agitation, pH, DO, antifoam, feeding
User-friendly 10-inch touch screen for intuitive and convenient operation.
Designed with stable and reliable seed-transfer pipelines.
Industrial scalable stainless steel bioreactor with in-situ sterilization function, built for pilot and mass microbial fermentation, core production equipment for biopharmacy, food fermentation, enzyme & microbial metabolite manufacturing
Robust full-process automatic control system with user-friendly operation, fits various microbial strains and fermentation workflows, delivers stable high-yield production and meets strict industrial hygiene & compliance standards
Tank body made of premium SUS316L stainless steel, inner surface polishing Ra ≤ 0.4 μm, effectively lowers residue and cross-contamination risks to guarantee consistent product purity
Integrated SIP in-situ sterilization design; no tank disassembly required during sterilization, shortens production cycles and avoids external contamination brought by repeated assembly
Customizable capacity ranging from 5L up to 100,000L, supports seamless scale-up from lab pilot process validation to large-volume industrial mass production
Jacket water circulation electric heating system realizes efficient heat exchange, maintains constant uniform temperature to support steady microbial growth and metabolic synthesis
Optional mechanical stirring and magnetic stirring drive systems with interchangeable impellers; balances mixing performance and low shear force to match different fermentation strain demands
Centralized precise control of temperature, agitation speed, pH, dissolved oxygen, feeding and defoaming; full data recording and traceability to satisfy industrial quality audit standards
Expandable auxiliary modules including multi-gas supply, exhaust gas detection, automatic feeding weighing system and sampling device for customized production lines
Microbial & cell suspension cultivation
Cell culture process development & optimization
Efficient seed culture & scale-up amplification
Pilot & large-scale industrial production
Item | Details |
Vessel | Double-wall jacketed stainless steel vessel Material:The parts in contact with the material are made of 316L stainless steel, the casing is constructed from 304 stainless steel. Total volume: 5~100,000L (customizable) Working Load Rate:30%~70% Number of tanks：1 |
Agitation | Magnetic stirring or mechanical stirring (optional) Speed:0-1000rpm Blades:all alternative impeller styles support customization |
Temp. | Temperature control range: Cooling water +5°C to 65°C Temperature sensor: PT100 platinum electrode |
Feed | Standard 4 pumps; fixed speed or variable speed optional |
Gas | Standard: single air intake Optional: multiple independent air intakes Standard: manual rotameter Optional: automatic mass flow controller (MFC) |
Control System | Temperature, agitation speed, pH, DO, antifoam, and feeding control |
Sterilization | Online steam sterilisation |
Expandable | ORP electrode, biomass sensor, precision weighing balance, off-gas analyzer, four-valve feed system, automatic CIP, automatic SIP, (global & domestic brand options available) |
A: Adopts SUS316L high-purity stainless steel with Ra ≤ 0.4μm mirror polishing, no dead corners and no residue. It effectively avoids bacterial contamination and adapts to high-purity bacterial culture and metabolite production requirements.
A: Yes. It features full SIP in-situ sterilization without tank disassembly, greatly improving sterilization efficiency and eliminating external contamination risks during bacterial fermentation.
A: Fully customizable capacity from 5L to 100,000L, supporting seamless scale-up from pilot bacterial process verification to industrial mass fermentation production.
A: Equipped with optional mechanical stirring and magnetic stirring systems with interchangeable impellers, balancing mixing efficiency and shear force to fit various aerobic and anaerobic bacterial culture processes.
A: Widely applied in biopharmaceuticals, enzyme preparation, food fermentation, microbial metabolite production and industrial bacterial strain cultivation projects.

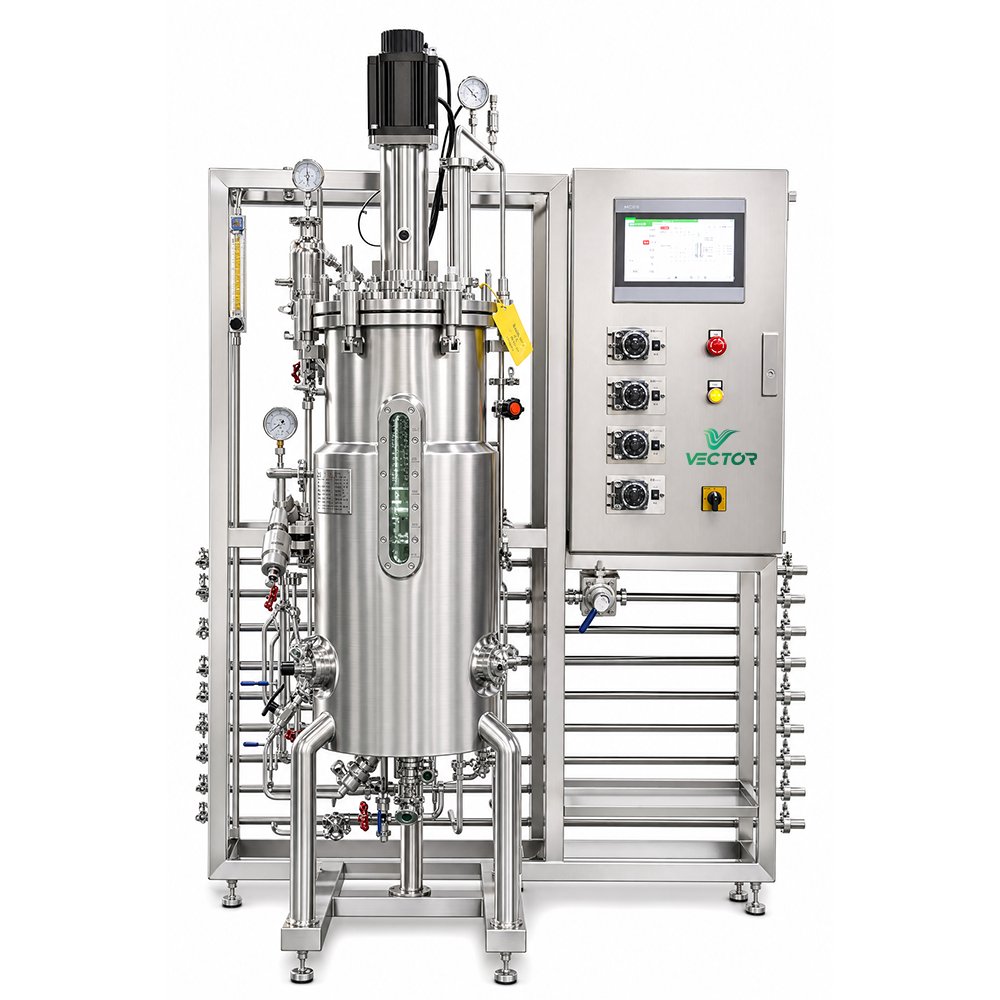

VEC‑JSMS‑X supports configurable multi‑stage seed culture vessels, providing a reliable solution for bioprocess research, development and optimization. It greatly saves labor and time, supporting efficient process validation and scale‑up for microbial and cell culture production.
VEC‑JSM‑X enables one controller to manage multiple parallel vessels of the same volume, supporting fast process validation and ideal for parallel screening and comparison experiments.
