Why Is pH Control Central to the Fermentation Process? A Comprehensive Guide

In industrial fermentation for biopharmaceutical production, process stability, batch-to-batch reproducibility, and high product yield are core quality control objectives. As a key process parameter in fermentation systems that is both sensitive and comprehensive, pH is directly linked to microbial cell physiology and metabolism, enzymatic reaction efficiency, and product synthesis pathways. It serves as the central link connecting equipment operating parameters with biological metabolic behavior. Compared to conventional physical parameters such as temperature and pressure, pH provides real-time feedback on microbial metabolic status and changes in the system’s microenvironment, making it a critical anchor for the precise control, large-scale scaling, and risk prevention of pharmaceutical fermentation processes. Based on industrial pharmaceutical fermentation applications, this paper systematically analyzes the regulatory mechanisms governing dynamic pH changes in relation to agitation speed, aeration, feed addition, growth stages, and induction operations, thereby providing technical support for the standardization, refinement, and intelligent control of pharmaceutical fermentation processes.

I. pH: A Core Control Parameter in Pharmaceutical Fermentation Systems

1. pH Reflects the Physiological Metabolism of Microbial Cells

All biochemical reactions within microbial cells—including respiratory metabolism, substrate degradation, and product synthesis—are accompanied by the release and consumption of hydrogen ions, which directly alter the acid-base balance of the fermentation broth. Intracellular enzyme activity, cell membrane permeability, membrane potential homeostasis, and the efficiency of transmembrane nutrient transport are all highly dependent on the stability of the environmental pH. Unlike other physical parameters, which are often lagging and indirect, pH provides a real-time, precise reflection of changes in microbial metabolic flux and physiological state. It serves as a core physiological indicator for monitoring microbial metabolic overload, metabolic disorders, and growth abnormalities.

2. pH: The Core Anchor for Process Stability and Scale-Up in Pharmaceutical Manufacturing

Large-scale biopharmaceutical fermentation production demands extremely high process consistency; even minor pH fluctuations can trigger a chain reaction of process risks. pH imbalance directly leads to changes in enzyme conformation and reduced activity, disrupts cellular physiological homeostasis, and causes issues such as growth inhibition, metabolic pathway shifts, and byproduct accumulation. Ultimately, this results in decreased product potency, batch-to-batch variability exceeding limits, and reduced production yield.

In industrial fermentation systems, pH is not an isolated parameter but rather a comprehensive reflection of all operational variables, including stirring speed, aeration rate, feed strategies, induction protocols, and the stage of microbial growth. Through precise acid-base dosing, intelligent feeding, and coordinated parameter control, microbial metabolism can be maintained within the optimal range, mitigating environmental disturbances during production. This fundamentally ensures process consistency and production stability across different batches and reactor scales.

II. Mechanism of How Stirring Speed Regulates Fermentation Broth pH

By altering the system’s mass transfer efficiency, mixing uniformity, and fluid shear environment, stirring speed regulates the dynamic changes in fermentation broth pH through both indirect mass transfer and direct cellular interaction. It is one of the core variables in the optimization of fermentation equipment process parameters.

1. Core Mass Transfer Effect: Regulating Metabolic Acid Production Levels via Dissolved Oxygen

The core function of stirring is to enhance mass transfer among the gas, liquid, and solid phases, thereby increasing the system’s dissolved oxygen concentration and uniformity. High-speed stirring effectively disrupts the gas-liquid interface boundary layer, increases the volumetric oxygen transfer coefficient, ensures an adequate supply of dissolved oxygen, and supports complete aerobic respiration in the microbial cells. This allows carbon source substrates to be thoroughly oxidized into carbon dioxide and water, significantly reducing the production and accumulation of acidic byproducts such as lactic acid and acetic acid, and maintaining pH homeostasis.

Conversely, insufficient stirring speed leads to uneven mixing and localized oxygen deficiency in the system. This impedes aerobic respiration in the microbial cells, causing metabolic pathways to shift toward inefficient anaerobic fermentation, resulting in the massive production of acidic metabolites and triggering a rapid and sustained decline in the fermentation broth’s pH. Additionally, the uneven distribution of substrates caused by low stirring speeds can easily lead to acidification inhibition due to localized substrate overload, further exacerbating pH fluctuations.

2. Secondary Shear Effects: Inducing Complex pH Fluctuations

The fluid shear forces generated by agitation directly act on bacterial cells, affecting cell morphology and membrane integrity. Moderate shear stress can optimize the microscopic morphology of mycelia and bacterial clusters, enhance mass transfer efficiency, and meet the mass transfer requirements of industrial fermentation. However, excessive shear stress generated by high rotation speeds damages cell membrane structures, causing cell lysis and the leakage of intracellular substances such as phosphates, organic acids, and functional proteins. This disrupts the acid-base balance of the fermentation broth, leading to irregular pH fluctuations.

Therefore, the setting of rotational speed parameters in pharmaceutical fermentation must adhere to the principles of optimal mass transfer and controllable shear. While ensuring adequate dissolved oxygen levels and mixing efficiency, it is essential to avoid process abnormalities caused by cell damage.

III. Bidirectional Regulation of pH by Aeration

Aeration influences the pH of the fermentation broth in two ways: through the physical effect of CO₂ dissolution and the biological effect of oxygen-dependent metabolism. These two effects interact dynamically throughout the fermentation process, presenting a key challenge for precise pH control.

1. Physicochemical Effects: The CO₂ dissolution equilibrium drives rapid pH fluctuations

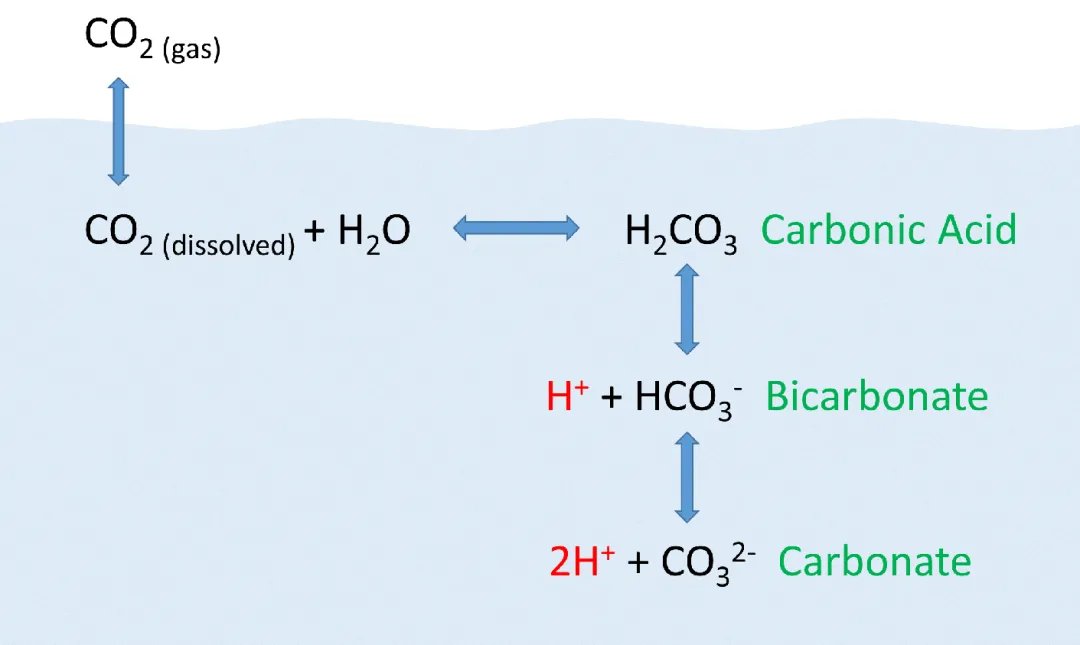

During fermentation, carbon dioxide generated by the aerobic metabolism of microbial cells dissolves into the fermentation broth, combines with water to form carbonic acid, and dissociates into hydrogen ions. This process is the primary physical mechanism driving the natural acidification of the system. Changes in aeration rates can directly alter the system’s CO₂ removal efficiency: increasing aeration accelerates the escape of CO₂ from the liquid phase, reduces hydrogen ion concentration, and causes a rapid rise in pH; conversely, reducing aeration leads to CO₂ accumulation and increased carbonic acid concentration, causing a drop in pH. This effect exhibits rapid response and high sensitivity, and is particularly pronounced during the middle and late stages of high-density fermentation and fermentation with high metabolic intensity.

2. Biological Metabolic Effects: Dissolved Oxygen Levels Determine the Type of Metabolic Acid Production

The core biological value of aeration is to maintain the steady state of dissolved oxygen in the system, and dissolved oxygen serves as the key regulator of microbial metabolic pathways. When dissolved oxygen is sufficient, the cells primarily rely on complete metabolism via the tricarboxylic acid cycle; carbon sources are thoroughly oxidized, with no significant production of acidic byproducts, resulting in a relatively neutral effect on pH. When dissolved oxygen is scarce, metabolic overflow occurs, triggering anaerobic fermentation pathways and leading to the massive accumulation of organic acids such as acetic acid, lactic acid, and formic acid. This causes a rapid, sharp drop in pH, directly inhibiting cell growth and product synthesis.

3. Industrial Aeration-pH Dynamic Equilibrium Strategy

In actual pharmaceutical fermentation production, there is an inherent conflict between the physical decarbonization and pH-raising effects of aeration and the biological oxygen-retaining and metabolism-stabilizing effects. Although excessive aeration can suppress CO₂ acidification and raise pH, it triggers a surge in foam, accelerates water evaporation from the fermentation broth, and causes shear damage to the cells. At the same time, it easily carries away volatile substrates, precursors, and active products, resulting in raw material loss and reduced yield.

Therefore, the aeration process must be dynamically optimized based on strain metabolic characteristics, fermentation stage, and real-time DO and pH monitoring data. This involves establishing aeration parameter models tailored to different production stages to achieve a multidimensional balance among mass transfer, metabolism, and pH homeostasis.

IV. pH: A Core Control Parameter in Pharmaceutical Fermentation Systems

Substrate feeding is the core operation in batch fermentation. The feeding rates, methods, and types of carbon and nitrogen sources directly determine the system’s acid-base metabolic balance and dictate the pH trends throughout the fermentation process.

1. Carbon Source Feeding: The Primary Cause of Periodic pH Fluctuations

Pulsed or continuous addition of fast-acting carbon sources, such as glucose, is the primary cause of pH fluctuations in fermentation. When the feed rate exceeds the metabolic capacity of the microbial cells, glycolytic flux becomes overloaded, and the tricarboxylic acid cycle cannot fully consume metabolic intermediates. This leads to the overflow and accumulation of organic acids such as pyruvate, acetic acid, and lactic acid, causing rapid acidification of the fermentation broth within a short period—known as the “instant acidification effect.” This phenomenon is particularly pronounced in lactic acid bacteria fermentation and high-density fermentation of recombinant strains.

Once the readily available carbon sources in the system are depleted, the cells can utilize the previously accumulated organic acids as a secondary carbon source. The degradation and consumption of these organic acids drive a gradual rise in pH, resulting in “delayed alkalization.” Under continuous or pulsed feeding regimes, pH exhibits regular sawtooth-like fluctuations. The amplitude and frequency of these fluctuations directly characterize the alignment between the feeding rate and the metabolic capacity of the cells, serving as a core criterion for process optimization. Excessively large amplitude typically indicates feeding overload and severe metabolic overflow, while irregular frequency reflects an imbalance in the physiological state of the cells.

2. Nitrogen Source Feed: Determining Long-Term pH Drift Trends

Nitrogen sources serve as the foundation for microbial synthesis of core substances such as proteins and nucleic acids. Their type directly determines the long-term pH trend in the fermentation system and is a key factor in controlling the dosage of pH neutralizing agents during industrial operations. During the assimilation of physiologically acidic nitrogen sources (such as ammonium sulfate), the cells release hydrogen ions to maintain charge balance, leading to sustained and stable acidification of the system; conversely, the assimilation of physiologically basic nitrogen sources (such as sodium nitrate) consumes hydrogen ions, driving a trend toward rising pH.

Ammonia water, commonly used in pharmaceutical fermentation, possesses dual properties: as a strong base, it can rapidly neutralize system acidity and raise the instantaneous pH; however, once the ammonium ions it contains are assimilated by the cells, they produce a sustained acidifying effect, causing the pH to subsequently drop. Therefore, the careful selection of nitrogen sources and the precise control of supplementation rates can reduce the magnitude of pH drift at its source, decrease the usage of acid and base regulators, and enhance the process’s environmental sustainability and stability.

V. Stage-Specific Coupling Patterns Between Cell Growth and pH

Metabolic intensity and pathways vary significantly among different microbial growth stages, resulting in stage-specific pH variation characteristics. Implementing pH control strategies precisely tailored to each growth stage is a core requirement for standardizing fermentation processes.

1. Lag Phase: pH Steady State to Support Environmental Adaptation

During the lag phase of fermentation, cells primarily focus on environmental adaptation, enzyme synthesis, intracellular pH restoration, and damage repair. Substrate metabolic activity is extremely low, and no significant acidic byproducts are generated. Consequently, the overall pH of the fermentation broth remains relatively stable, with only minor fluctuations caused by uneven mixing of the system after inoculation. The core of the process during this stage is to ensure that the initial pH is compatible with the medium’s buffering system, providing a stable microenvironment for microbial recovery and proliferation, without the need for significant adjustment of acid-base parameters.

2. Log Phase: A High-Risk Stage of Rapid pH Acidification

During the log phase, cells divide and proliferate rapidly, glycolytic metabolism is highly active, metabolic flux increases significantly, and organic acid byproducts accumulate in large quantities. This is the stage in the entire fermentation process where the pH drops most significantly. In most pharmaceutical strain fermentation systems, the pH can drop rapidly from an initial 6.5–7.0; in systems using highly acid-producing strains, the pH may even fall below 5.0.

Without precise pH control, excessive acidification can lead to bacterial acidosis, inhibiting cell division and metabolic activity, which directly results in insufficient biomass, reduced product yield, and batch failure. Therefore, the exponential phase is the critical control window for dynamic pH intervention and precise acid regulation.

VI. Mechanisms of pH Dynamic Responses Triggered by Induction

Induction procedures for recombinant protein expression and secondary metabolite synthesis fundamentally alter the metabolic profile of the cells, triggering characteristic dynamic pH changes. These changes serve as key indicators for assessing the appropriateness of induction intensity and the rationality of metabolic load.

1. Early Induction Phase: Metabolic Overload Triggers a Precursor Acidification Effect

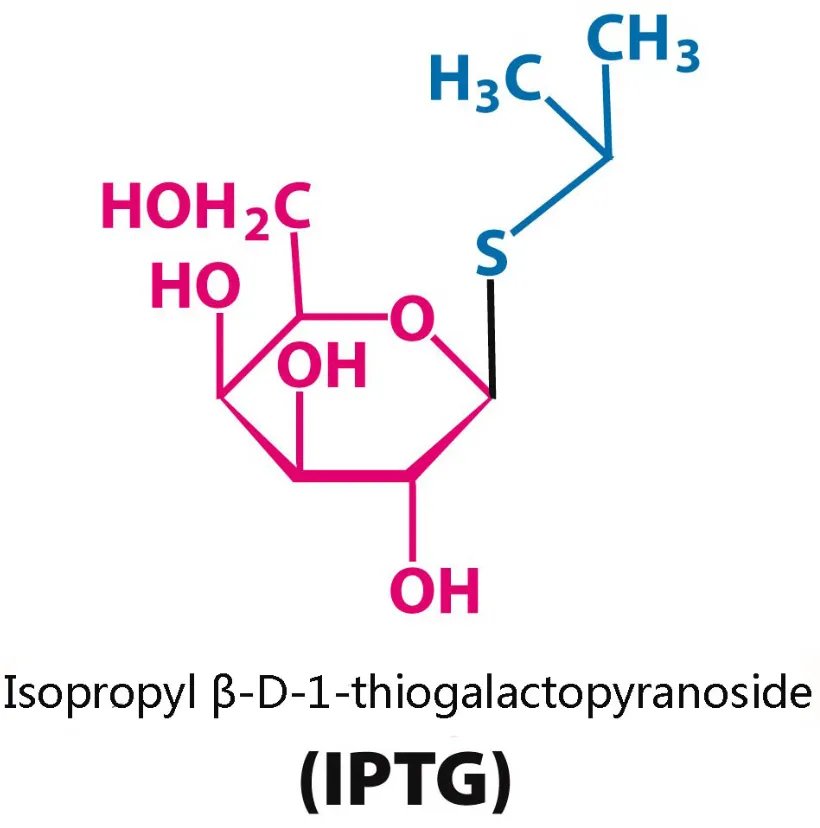

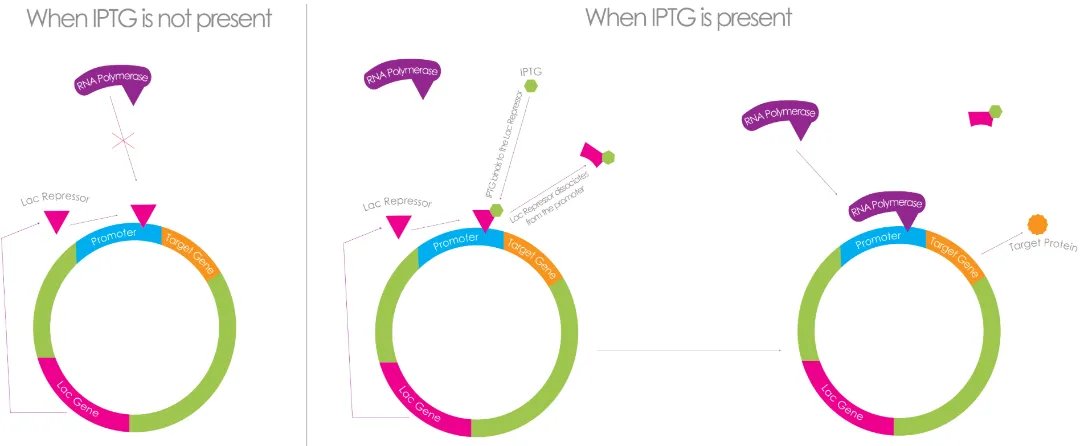

Upon the addition of inducers such as IPTG and lactose, the cells must initiate massive gene expression to synthesize heterologous proteins or secondary metabolites, leading to an explosive increase in the demand for ATP, reducing power, and amino acid precursors. To accommodate this surging metabolic load, central carbon metabolism flux is passively elevated, leading to overactivation of glycolysis. This results in the massive accumulation of intermediates such as pyruvate and acetyl-CoA, triggering metabolic overflow and the generation of acidic byproducts like acetic acid, causing a rapid drop in pH within tens of minutes to several hours after induction.

The extent of pH decline during the early induction phase provides direct feedback on the rationality of the process: a sharp drop in pH and severe acidification indicate excessive induction intensity and an overloaded metabolic burden on the host cells, which can easily lead to cell damage and abnormal product expression.

2. Late Induction Phase: Metabolic Switching Triggers a Dynamic Shift in pH

Most inducers exhibit mild cytotoxicity, and high-intensity heterologous expression imposes a significant metabolic burden, continuously suppressing bacterial growth rates and shifting the metabolic profile from a “high-growth” mode to a “low-growth, high-efficiency synthesis” mode. This shift in metabolic profile fundamentally alters the acid production and consumption balance within the system, causing the downward trend in pH to slow, gradually stabilize, or even rise slightly. This dynamic turning point serves as a crucial theoretical basis for optimizing the timing, concentration, and duration of induction.

VII. Conclusion: Precise pH Control Is Central to Upgrading Pharmaceutical Fermentation Processes

In summary, pH is by no means a single monitoring parameter in a fermentation system; rather, it serves as a central control hub that integrates microbial metabolic networks, equipment and process parameters, and the entire production workflow. The five key dimensions—rotational speed, aeration, substrate feeding, induction, and growth stage—jointly determine the dynamic pH variation patterns by regulating microbial metabolic flux and the system’s physicochemical environment; conversely, real-time pH fluctuation data can guide the optimization of equipment parameters, adjustments to process strategies, and the prediction of production risks.

Amid the trends toward industrialization, intelligentization, and standardization in the biopharmaceutical industry, achieving closed-loop, integrated control of pH in conjunction with rotation speed, aeration, feed addition, and induction—leveraging precision fermentation equipment—represents the core technological pathway for resolving batch-to-batch variability, enhancing product yield, ensuring drug quality stability, and enabling efficient process scale-up. It also serves as a critical fulcrum for improving quality and efficiency, reducing costs, and managing risks in modern biomanufacturing.
