Freeze-drying area：0.2m2~1.152m2
Water capture capacity：6~15kg/batch
Volume of liquid(10 mm thick) :2~11.5L
Cold trap temperature (no load)：≤-75℃
Electric defrost, air-cooled, well-ventilated

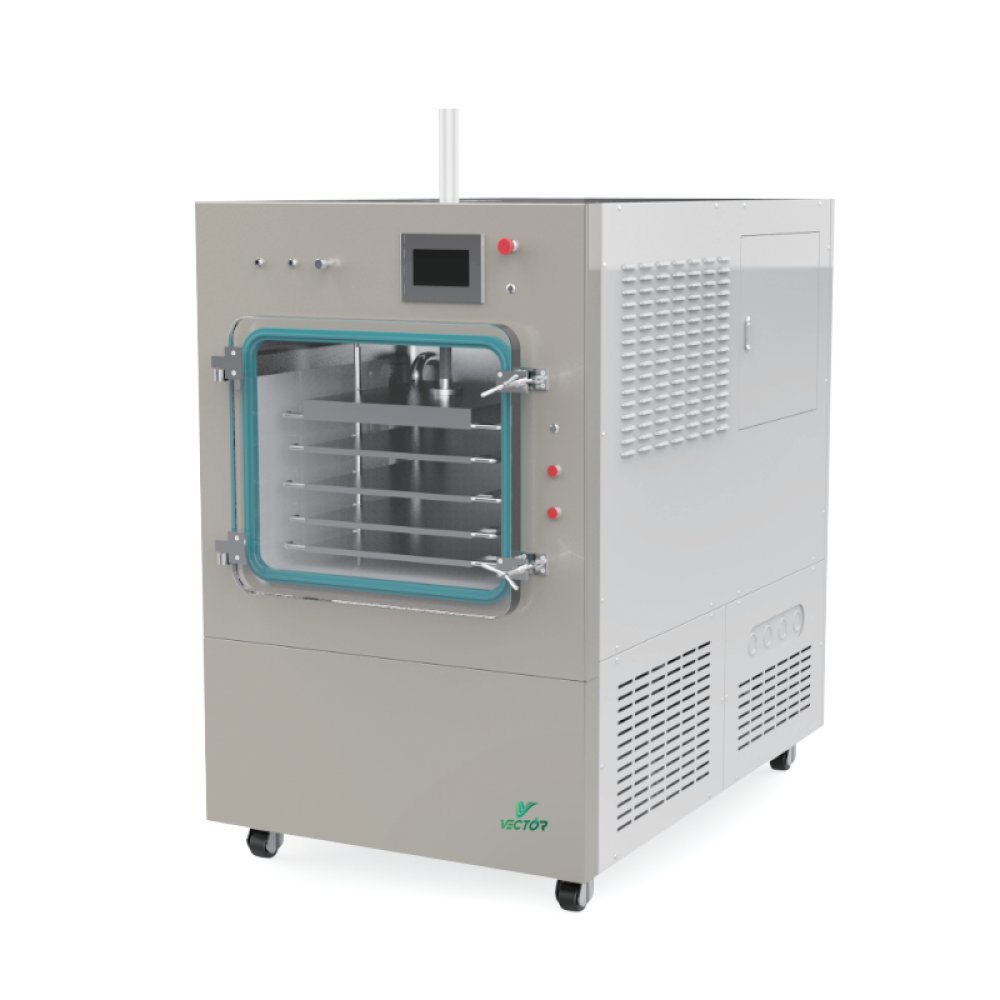

Our industrial silicone oil-heated freeze dryer is purpose-built for pilot R&D and small-scale trial production across medical, pharmaceutical, life science research, fine chemical and food manufacturing sectors. Vacuum lyophilization processed samples gain superior long-term storage stability. After simple rehydration, materials fully restore their original physical form and preserve complete intrinsic biochemical activity without denaturation of heat-sensitive active ingredients.
Split Independent Chamber Construction
Distinct from integrated small lab freeze dryers, this industrial lyophilizer adopts a separated layout that isolates the freeze-drying cavity and cold trap into two independent units. This structural design fully satisfies pharmaceutical pilot-grade equipment compliance standards, drastically improves vapor condensation efficiency and maximizes single-batch water capture capacity for continuous mass sample processing.
Industrial PLC Intelligent Touch Control
This industrial freeze dryer is equipped with a 7-inch HD touchscreen paired with an industrial-grade PLC controller for visualized full-process operation. The built-in simulation dashboard digitally displays real-time operational parameters of every functional module, and dynamically generates full freeze-drying curves for real-time monitoring.
The control system supports storage of up to 1,000 independent custom lyophilization programs. Operators can set segmented parameters for pre-freezing, sublimation and desorption drying phases for different sample formulas. A standout feature allows real-time adjustment of program parameters during running cycles, with all modified data and drying curves automatically logged for full audit traceability.
Dual Operation Modes with Hierarchical Access Management
Two switchable operation modes cover the full product development cycle. Manual mode supports flexible manual parameter adjustment, ideal for new formula exploration and lyophilization process testing. Once the drying craft is finalized, users can switch to automatic mode for one-click unattended operation to boost batch processing efficiency. Multi-tier user accounts and custom login passwords are configurable to set differentiated access permissions, preventing unauthorized parameter modification and data tampering in shared pilot workshops.
Pharmaceutical Process Scale-up & Drug Registration
Applied for lyophilization craftsmanship validation of new generic drugs, pre-market registration sample preparation and batch stability testing. Steady silicone oil constant-temperature heating eliminates batch-to-batch deviation.
Biological Preparation Contract Manufacturing
Suitable for OEM processing of lyophilized probiotic powder, diagnostic reagents, in-vitro detection bioproducts and microbial starter cultures. Traceable full-process data logging meets third-party factory quality supervision standards, solving data missing risks of ordinary heating freeze dryers.
High-purity Botanical Extract Industrial Refining
Used for deep purification and low-temperature dehydration of high-value concentrated herbal monomers, plant essential oil precipitates and alkaloid raw materials. Even heat conduction avoids active ingredient inactivation caused by local overheating, improving finished product purity and industrial yield.
High-end Cosmetic Bi-active Mass Production
Deployed for standardized production of anti-aging biomaterials, lyophilized essence powder, skin repair polypeptides and plant-derived whitening raw materials. Equipped with inert gas flushing function to cut raw material oxidation rate, stabilize batch efficacy and extend cosmetic raw material shelf life.
Agricultural Germplasm Industrial Preservation Project
Matching agricultural scientific research industrialization projects, used for long-term bank preservation of elite crop seeds, edible fungus strains and algae germplasm resources. Large-capacity layered shelves realize centralized batch dehydration, suitable for institutional resource inventory and industrial germplasm backup.
| Model | Freeze-drying Area | Water Capture Capacity | φ12mm Vial Loading Quantity | φ16mm Vial Loading Quantity | φ22mm Vial Loading Quantity | Max Liquid Volume (10mm thick) | Shelf Plate Dimension | Shelf Spacing | Number of Plates (main + auxiliary) | Shelf Temperature Range | Temperature Control Accuracy | No-load Cold Trap Temp | No-load Ultimate Vacuum | Defrost & Cooling Mode | Power Spec | Net Weight | Length | Width | Height |
| VEC-02FY | 0.2 m² | ≥6 kg/batch | 1296 pcs | 720 pcs | 390 pcs | 2 L | 300*340 mm | 120 mm | 2+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled; Ambient temp ≤25℃ with good ventilation | 220V/50Hz / 3.8KW | 350 kg | 1500 mm | 750 mm | 1450+200 mm |
| VEC-03FY | 0.306 m² | ≥8 kg/batch | 1944 pcs | 1080 pcs | 585 pcs | 3 L | 300*340 mm | 80 mm | 3+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled; Ambient temp ≤25℃ with good ventilation | 220V/50Hz / 4.1KW | 400 kg | 1500 mm | 750 mm | 1450+200 mm |
| VEC-05FY | 0.55 m² | ≥10 kg/batch | 3630 pcs | 1976 pcs | 1064 pcs | 5.5 L | 430*320 mm | 80 mm | 4+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled; Ambient temp ≤25℃ with good ventilation | 380V/50Hz / 5.5KW | 580 kg | 1650 mm | 750 mm | 1450+200 mm |
| VEC-10FY | 1.152 m² | ≥15 kg/batch | 7644 pcs | 4292 pcs | 2268 pcs | 11.5 L | 480*600 mm | 80 mm | 4+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled; Ambient temp ≤25℃ with good ventilation | 380V/50Hz / 7.5KW | 900 kg | 1850 mm | 1100 mm | 1770+260 mm |
| VEC-200FG | 2.25 m² | ≥40 kg/batch | 15170 pcs | 8250 pcs | 4400 pcs | 22.5 L | 500*900 mm | 70 mm | 5+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled (water cooling optional); Ambient temp ≤25℃ | 380V/50Hz /13.5KW | 1300 kg | 2550 mm | 1200 mm | 1750 mm |
| VEC-200FG/Y | 2.25 m² | ≥40 kg/batch | 15190 pcs | 8250 pcs | 4400 pcs | 21 L | 600*750 mm | 80 mm | 5+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled (water cooling optional); Ambient temp ≤25℃ | 380V/50Hz /15KW | 1800 kg | 2100 mm | 1400 mm | 2100 mm |
| VEC-300FG | 3.15 m² | ≥60 kg/batch | 21238 pcs | 11550 pcs | 6160 pcs | 31.5 L | 500*900 mm | 70 mm | 7+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled (water cooling optional); Ambient temp ≤25℃ | 380V/50Hz /14.5KW | 1500 kg | 2550 mm | 1200 mm | 1850 mm |
| VEC-300FG/Y | 3.15 m² | ≥60 kg/batch | 21238 pcs | 11550 pcs | 6160 pcs | 30 L | 600*750 mm | 80 mm | 7+1 pcs | -50 ~ 70℃ | ±1℃ | ≤-75℃ | ≤5 Pa | Electric defrost, air-cooled (water cooling optional); Ambient temp ≤25℃ | 380V/50Hz /16KW | 2000 kg | 2100 mm | 1400 mm | 2300 mm |
Industrial silicone oil circulation heating realizes uniform heat distribution across the entire shelf plane with control accuracy up to ±1℃, covering a wide temperature range of -50℃ to 70℃. Equipped with fuzzy PID algorithm and full thermal cycle protection, it eliminates local overheating or cold spots that often occur with resistance heating. This stable temperature performance guarantees consistent drying results for large batches, fully meeting GMP pharmaceutical industrial production standards, and is perfectly compatible with both flat tray bulk samples and lid-sealed vial lyophilization on FG/Y models.
VEC-FY (Small Pilot Models): Compact footprint, air-cooled only, partial 220V single-phase power supply, small freeze-drying area (0.2~1.152㎡), low single-batch water capture capacity (6~15kg). Designed for laboratory formula exploration, small sample trial and academic research; all FY versions adopt lid-sealed structure for vial samples.
VEC-200/300FG (Large Industrial Models): Massive loading area (2.25~3.15㎡), ultra-high water capture capacity up to 60kg per batch, standard 380V three-phase industrial power. It supports air cooling and optional water cooling for 24-hour non-stop factory operation.
Yes. The industrial PLC + 7-inch touch control system can store up to 1,000 sets of independent lyophilization programs, automatically recording full-process drying curves and all operating parameters in real time. All data can be exported to external computers for viewing, printing and archiving. Multi-level user passwords and differentiated access authority management are built-in, which can track all parameter modification records to satisfy traceability requirements of pharmaceutical factory audits and drug registration filings.
The enclosed circulating structure greatly reduces daily maintenance workload. It only requires regular silicone oil contamination inspection every 6 months, and annual oil replacement for long-running industrial units. The sealed loop design prevents silicone oil leakage, no frequent pipeline cleaning is needed, which cuts factory operation and maintenance cost compared with open heating lyophilizers.
Apart from thermal cycle protection for heating shelves, it integrates multiple safety interlocks: vacuum leakage protection, overload protection, cold trap over-temperature alarm, silicone oil overpressure protection and door opening pressure relief protection. Once abnormal operating status occurs, the machine triggers audible and visual alarms and stops running automatically, meeting industrial machinery safety specifications.
Vacuum freeze dryers are widely used in the medical, pharmaceutical, biological research, chemical, and food industries. Materials processed by freeze-drying are easy to store long-term; when rehydrated, they return to their pre-freeze-dried state while retaining their original biochemical properties.
The VEC-18N series of vertical freeze dryers is suitable for laboratory use or small-scale production and meets the routine freeze-drying requirements of most laboratories.
