The GQ200G is a high-capacity clarifying tubular centrifuge built for continuous industrial-scale solid-liquid separation.
Equipped with a 24 L rotor drum and 15600 xg separation factor, it effectively processes suspensions with fine particles and low density difference between phases.
Under intense centrifugal force, solid sediments accumulate on drum inner wall while clarified liquid discharges continuously.

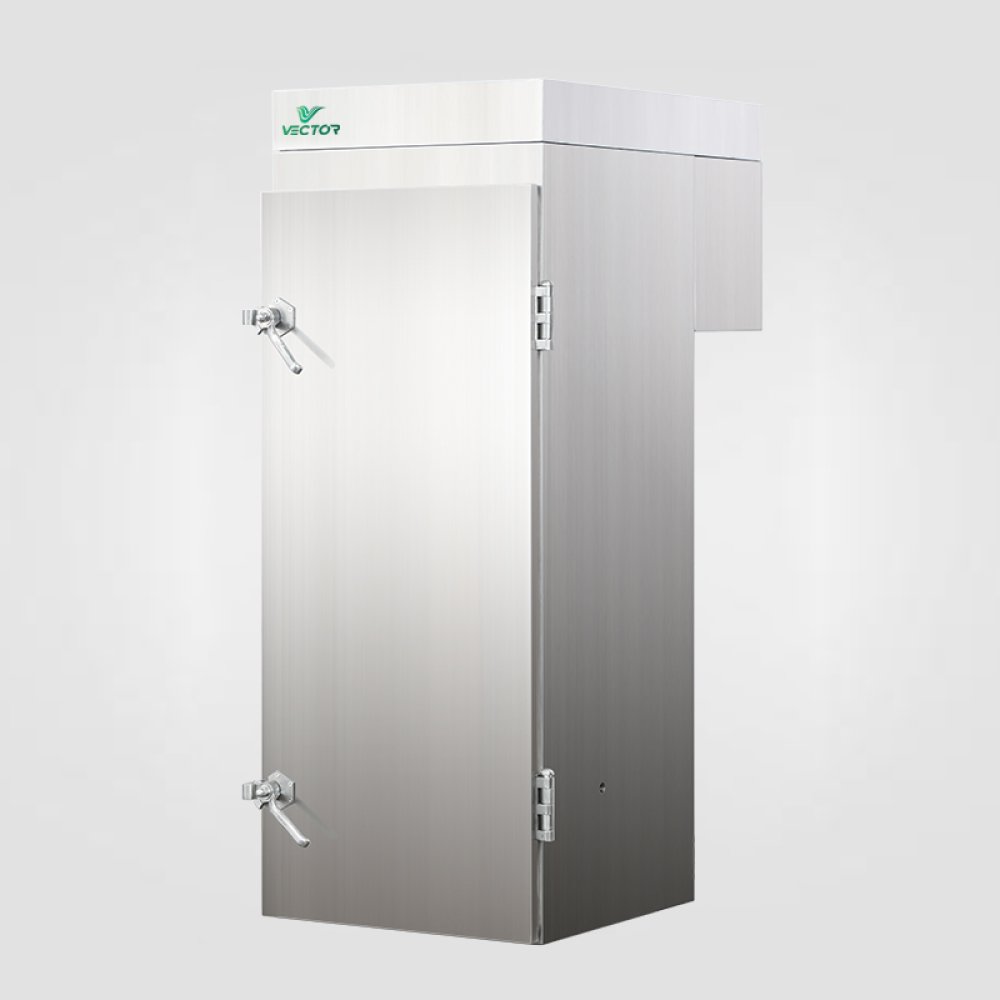

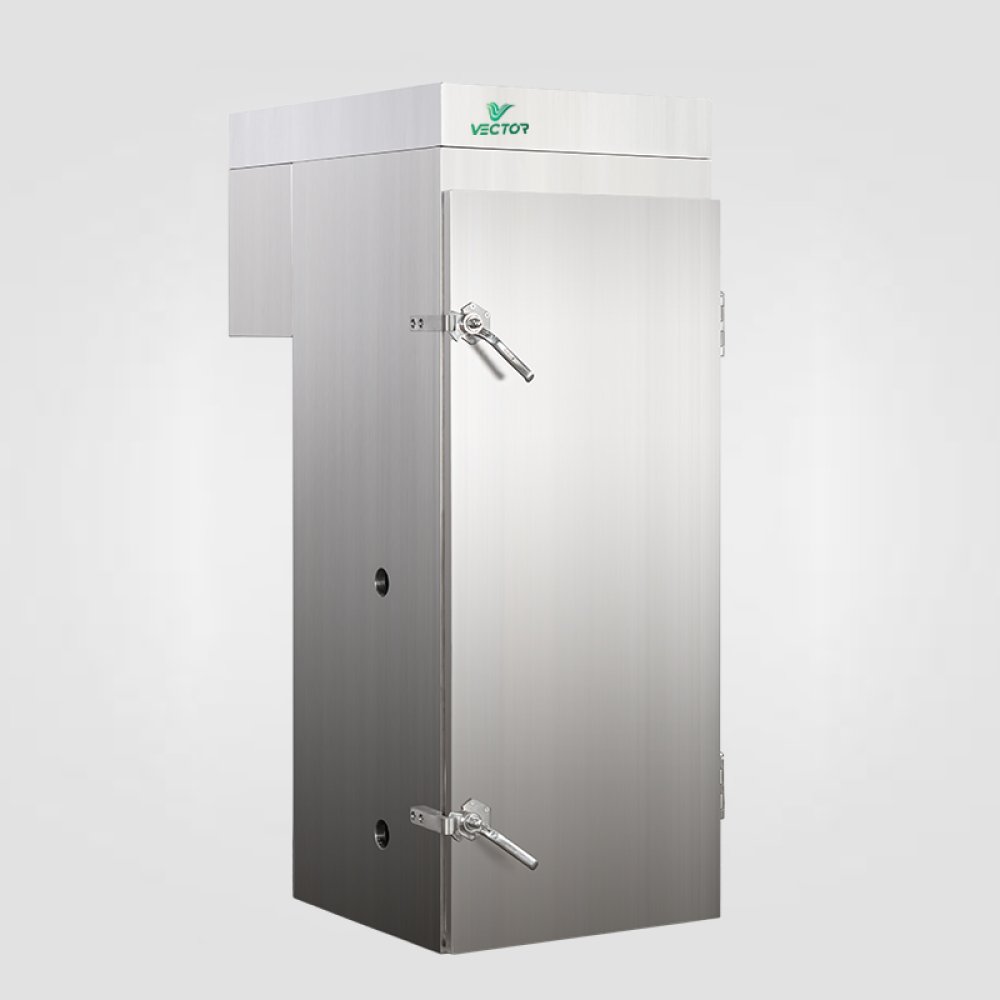

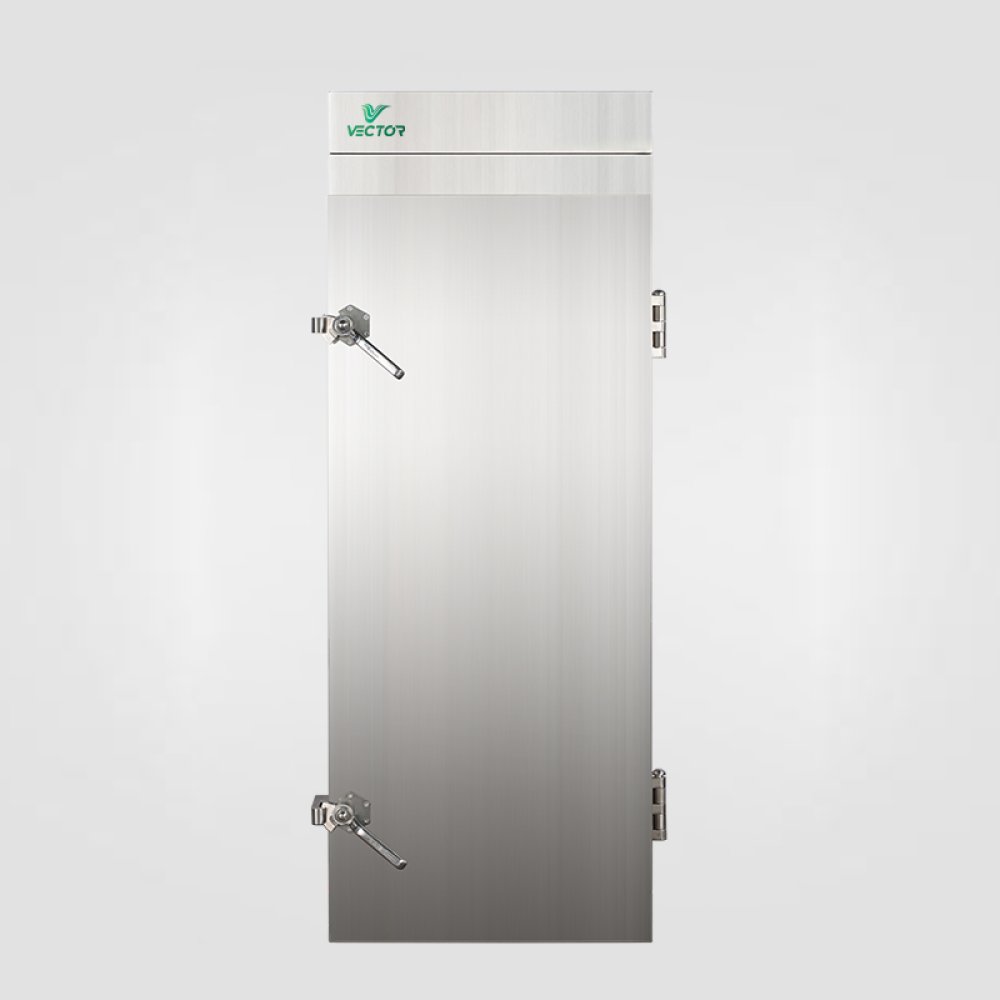

Adopting vertical enclosed cabinet with front-opening door for easy maintenance.
Widely deployed in biopharma, fermentation, plant extraction and fine-chemical industries.
Superior Separation Performance: Rated speed 11800 r/min with 15600 xg separation factor. Achieves high-precision clarification for suspensions containing tiny particles with stable separation performance.
Large-volume Rotor Drum: 24 L large-capacity drum increases solid holding capacity and reaches throughput up to 3 m³/h. Suited for medium-to-large-scale production, reduces slag-removal downtime and improves overall productivity.

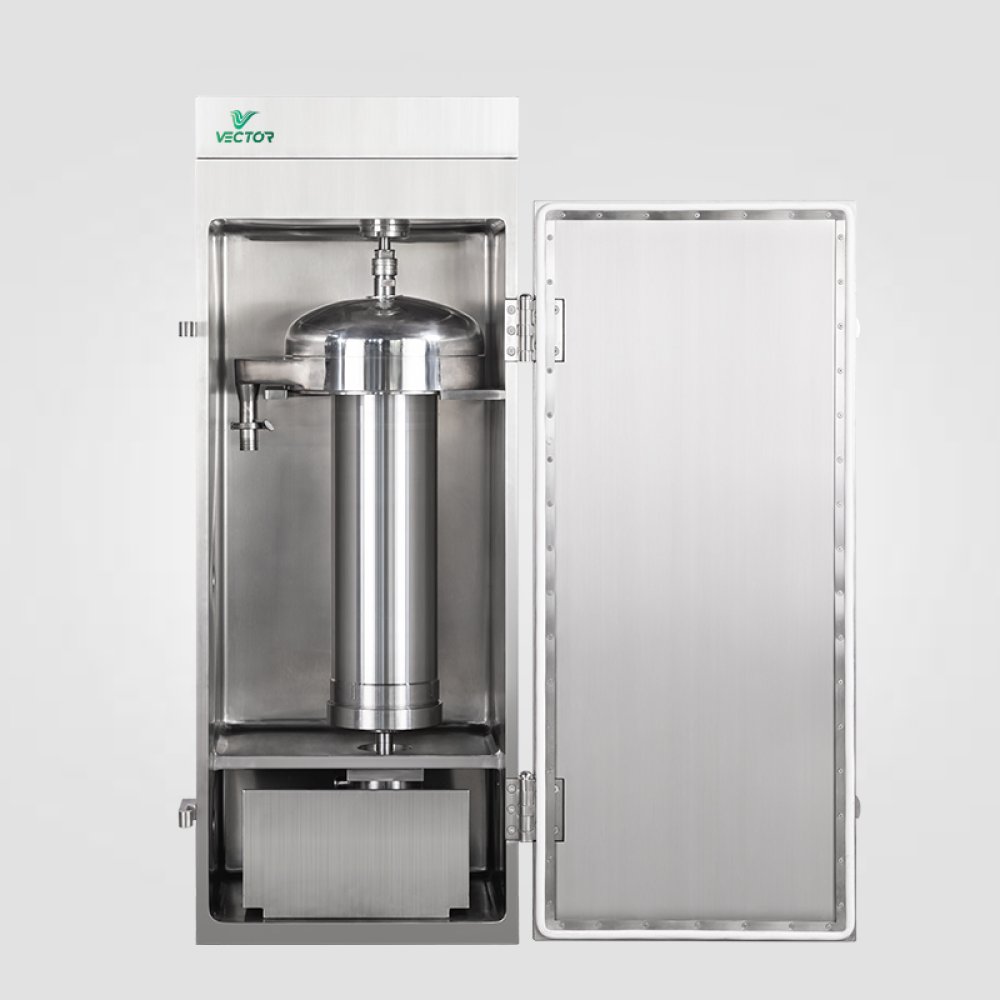

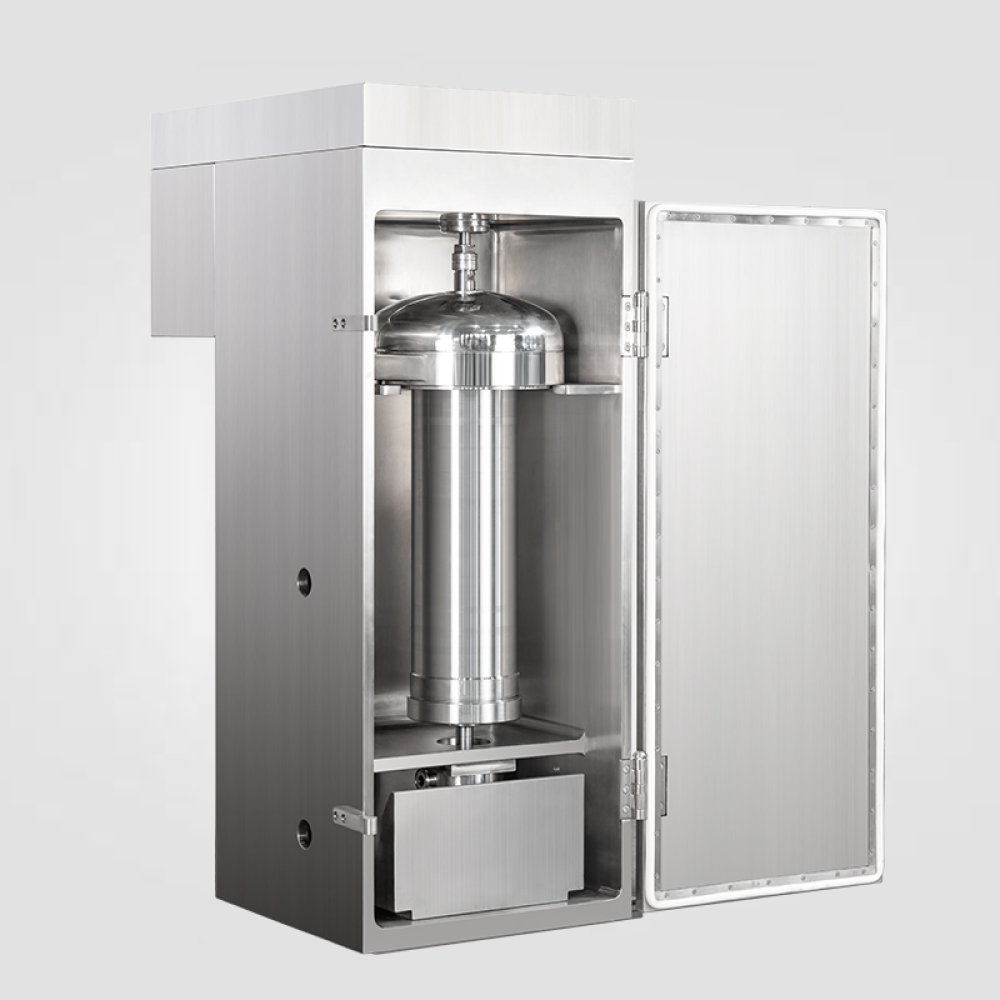

Enclosed Cabinet Construction: Front access cabinet design ensures safe operation. Rotor disassembly and routine maintenance are simplified with compact footprint for flexible workshop layout.
Sanitary-grade Wetted Components: Wetted parts are manufactured from high quality stainless steel with polished interior surfaces, minimizing dead corners. Easy-to clean construction meets pharmaceutical & food grade production requirements.
Stable Operation: Rotor assembly undergoes strict dynamic balancing for low vibration and reliable continuous running. User-friendly operation for plant operators.
Biological Fermentation: Cell removal, clarification of recombinant-protein fermentation broth, solid liquid separation for microbial culture
Biopharmaceuticals: Clarification for vaccine intermediates and biological drug extracts
Plant Extraction: Clarification for herbal medicine and plant active-ingredient extracts
Fine Chemical & Health-care Food: Impurity removal and clarification for various liquid suspensions
Model | GQ200G |
Separation Factor (xg) | 15600 |
Rotor Drum Inner Diameter (mm) | 200 |
Rotor Drum Volume (L) | 24 |
Rotating Speed (r/min) | 11800 |
Water Throughput (m³/h) | 3 |
Motor Power (kW) | 4 |
Machine Weight (kg) | 1000 |
Overall Dimension (mm) | 945 × 620 × 1650 |
It is designed for suspensions with low solid content, fine particles and small density difference between liquid and solid phases. Typical applications include cell removal from fermentation broth, clarification of recombinant protein liquid, impurity removal of herbal & plant extracts, vaccine intermediates and health-care food liquid. It is not suitable for feed with high solid content or large solid particles.
The calibrated water throughput is 3 m³/h. Actual processing capacity will decrease subject to material viscosity, solid content and clarification requirement. Hard-to-separate materials lead to lower working flow rate.
24 L refers to the total rotor drum volume, where solids deposit on the inner wall. The sludge discharge interval depends on inlet solid concentration. Higher solid content means more frequent shutdown for sludge removal. This model adopts manual drum cleaning without automatic slag discharge function.
Standard version does not support full CIP. Manual disassembly and drum cleaning are required after each batch. Custom CIP solution can be evaluated if needed.
GQ200G features larger drum volume and higher throughput for medium & large scale production. GQ150 / GQ105 are medium & small capacity models, suitable for lab, pilot or low-volume production lines. Selection depends on feed flow rate, solid content and clarification target.
