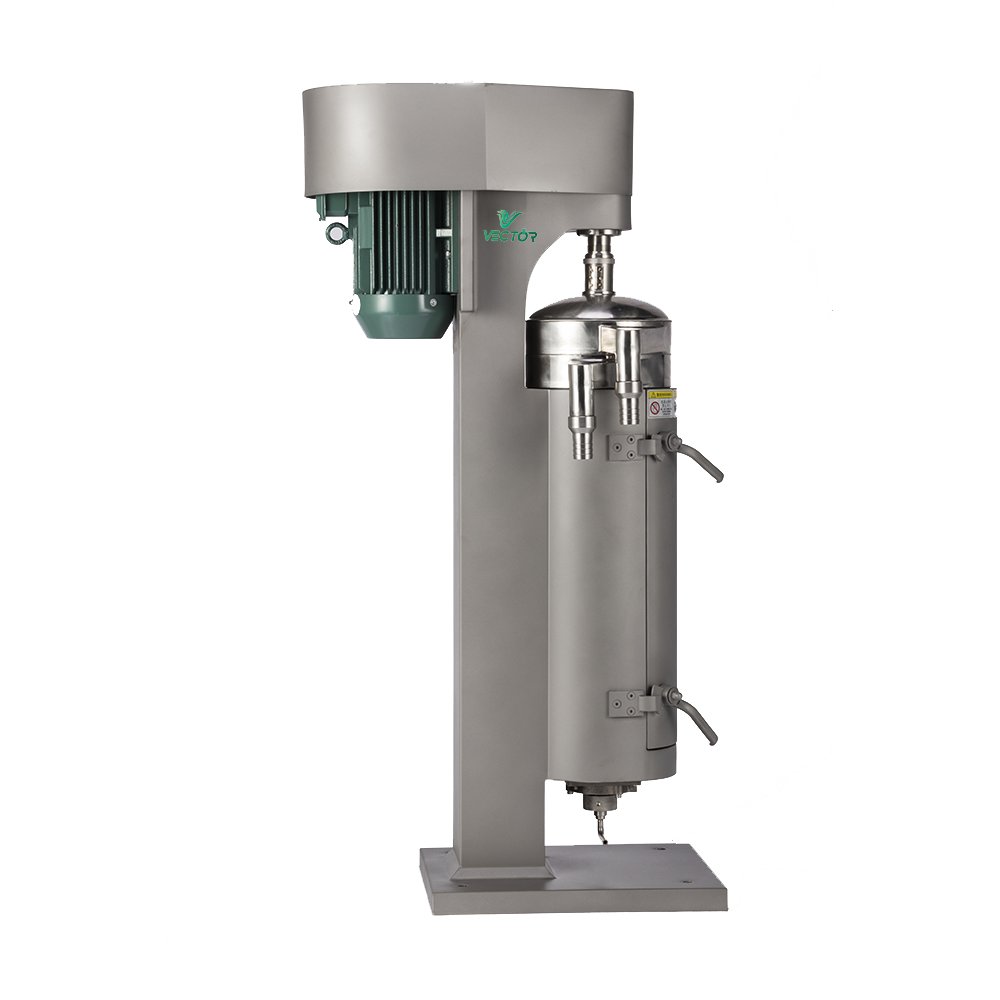

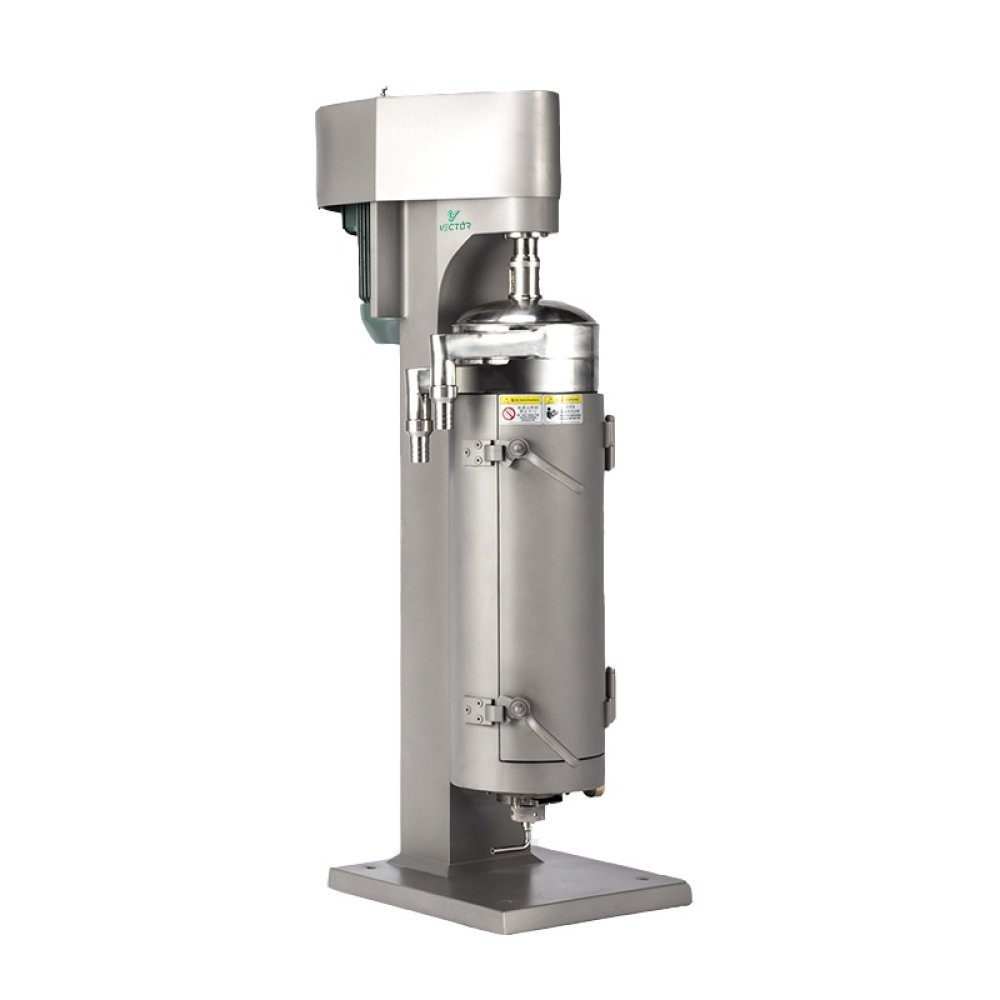

The 105 series high speed tubular centrifuge is classified into three variants: VEC-GQ105, VEC-GF105 and VEC-GQ105G to satisfy diversified separation demands. VEC-GQ105 is round casing solid-liquid clarification type; VEC-GF105 realizes liquid-liquid-solid three-phase separation; VEC-GQ105G is square stainless steel sanitary grade design.
Round casing options cover painted carbon steel cabinet and full stainless steel cabinet for flexible configuration. Cabinet body adopts Q235 carbon steel with stress relief heat treatment for stable mechanical performance. It runs at 16000rpm with 6L drum volume and 1.5m³/h processing capacity for industrial continuous clarification.
Multi-model customization: Three structural types to match solid-liquid clarification and three-phase separating working conditions, two cabinet material choices for regular and sanitary production lines.
Excellent separating performance: Up to 15040xg high separation factor, efficiently remove micro fine particles from low-concentration, high-viscosity feed liquid with small density difference between mediums.
Durable cabinet construction: Q235 carbon steel frame processed with multiple heat treatment to release internal stress, improving whole machine stability and service life.
Large processing capacity: 6L drum volume, 1.5m³/h throughput and 3kw driving power, ideal for medium-scale industrial continuous feeding separation.
Pharmaceutical bulk drug manufacturing: Clarify large-batch fermentation liquor and bulk medicine feed liquid in pharmaceutical production workshops.
Natural pigment & plant extract factory: Continuous purification of industrial-scale plant extraction liquid for food additives and natural pigment raw material.
Daily chemical & cosmetic raw material: Separate suspended impurities from plant-based essence, cosmetic base liquid and surfactant stock solution.
Petrochemical & lubricant industry: Three-phase separation of waste lubricating oil, crude oil intermediate to remove sludge and water content.
Item | Parameter | ||
Model | VEC-GQ105 | VEC-GF105 | VEC-GQ105G |
Structure | Round casing | Round casing | Square casing |
Separation type | Solid-liquid | Solid – Heavy liquid – Light liquid | Solid-liquid |
Separation Factor(xg) | 15040 | ||
Drum Inner Diameter(mm) | 105 | ||
Drum Length(mm) | 730 | ||
Drum Volume(L) | 6 | ||
Rotation Speed(r/min) | 16000 | ||
Max Flow(m³/h) | 1.5 | ||
Motor Power(kW) | 3 | ||
Weight(kg) | 550 | 750 | |
Overall Size(L×W×H,mm) | 800×450×1620 | 850*470*1690mm | |
Optional | PLC control cabinet, temperature sensor, vibration sensor, feed peristaltic pump | ||
