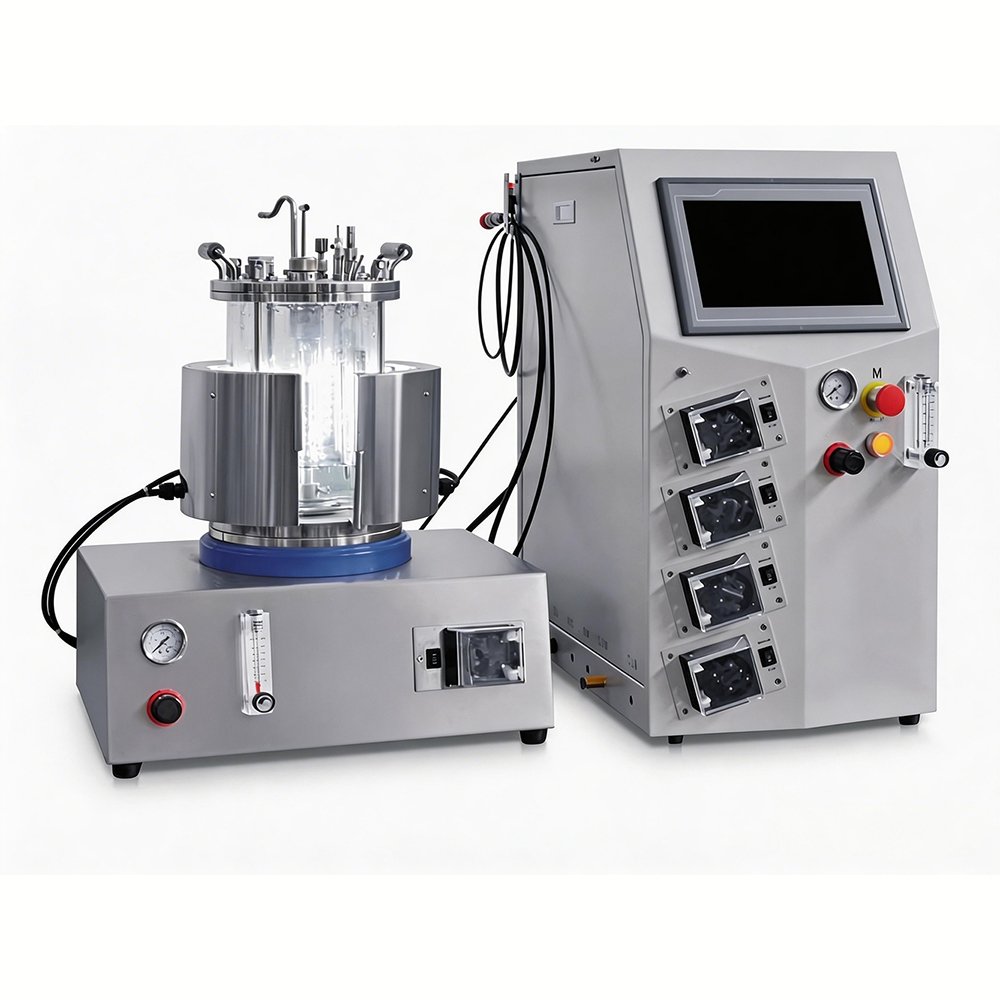

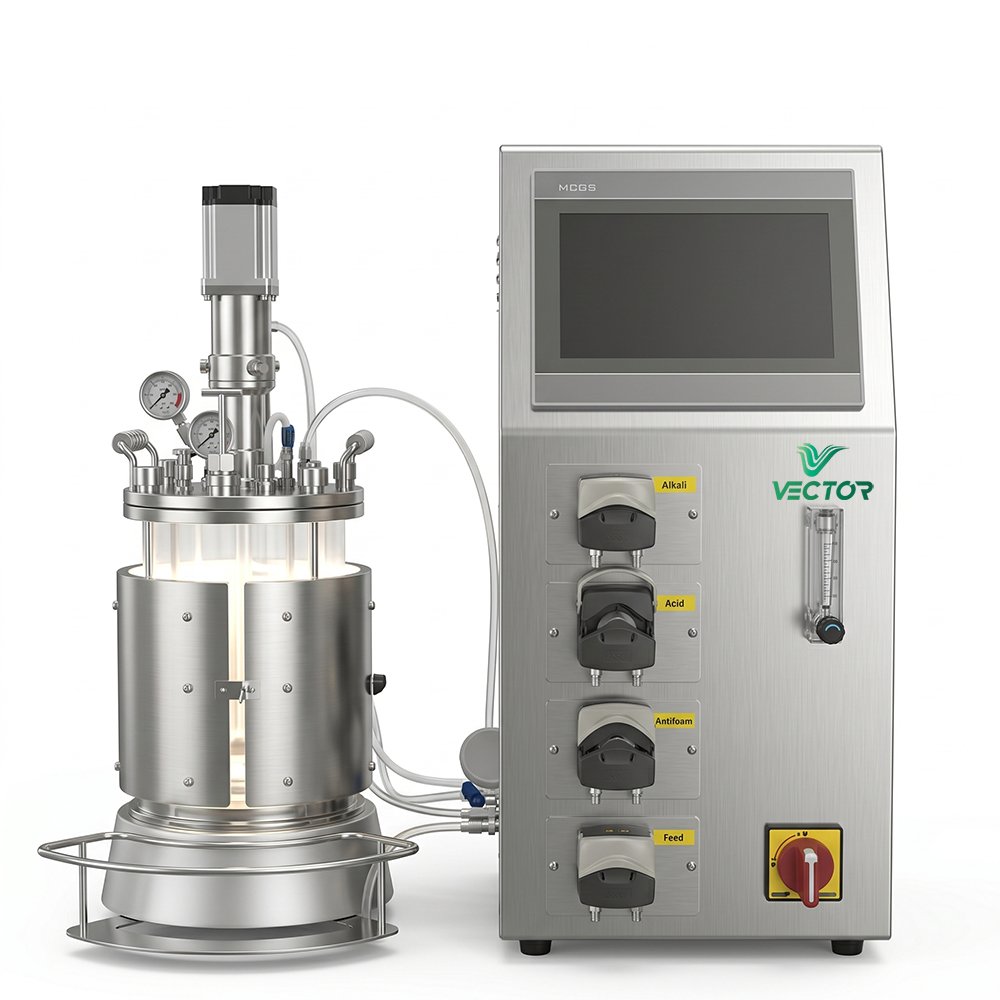

Benchtop Plant Cell Bioreactor

Customizable 1–20 L total volume bioreactor

Single-walled glass vessel

Temperature control： Bottom stainless steel jacket water circulation heat exchange.

Agitation: Mechanical stirring or magnetic stirring is available, with support for interchangeable stirring paddles of various types.

Feed: 4 peristaltic pumps, expandable configuration

Intake：single-air-intake system, with optional multi-gas-intake system. Supports upgrade to automatic gas-intake system.

Unified control: temperature, agitation, pH, DO, antifoam, feeding

10‑inch intuitive touchscreen for easy operation

All‑in‑one controller for reliable process control

Lighting：The glass vessel is encircled by an external lampshade to ensure uniform and consistent illumination.

High-performance benchtop illuminated glass bioreactor tailor-made for lab-scale plant cell cultivation, core lab instrument for plant cell culture, secondary metabolite research and biopharmaceutical R&D, widely adopted by academic labs, research institutes and biotechnology firms
Compact integrated design with precise full-process control and homogeneous lighting system, perfectly meets low-shear & stable environment demands of fragile plant cells, connects fundamental research and small-batch experimental production
1L–20L customizable total volume glass vessel, flexibly fits various experiment demands from micro sample cultivation to pilot bioprocess validation
All-around external ring light hood surrounding glass tank provides even, steady lighting; eliminates uneven light distribution to facilitate plant cell photosynthesis and metabolism
Bottom stainless steel jacket water circulation cooling & heating system delivers balanced stable temperature distribution, effectively shields heat-sensitive plant cells
High-transparency glass tank with easy disassembly, cleaning and autoclaving, reliably maintains sterile cultivation environment for plant cell fermentation

Plant cell suspension culture and strain optimization
Production of plant secondary metabolites (alkaloids, flavonoids, saponins, pigments, etc.)
Pharmaceutical active ingredient extraction & biosynthesis
Natural product, herbal extract, and functional ingredient production
Plant tissue culture, callus culture, and organ culture
Bioreactor scale-up research for plant biotechnology
R&D in agricultural biotechnology, cosmetics, and food additives

Item	Details
Vessel	Single-wall glass vessel (optional) Material:High-quality borosilicate glass Total volume: 1~20 L (customizable) Working Load Rate:30%~70%
Agitation	Magnetic stirring or mechanical stirring (optional) Speed:0-2000rpm Blades:all alternative impeller styles support customization
Temp.	Temperature control range: Cooling water +5°C to 65°C Temperature sensor: PT100 platinum electrode
Feed	Standard 4 pumps; fixed speed or variable speed optional
Gas	Standard: single air intake Optional: multiple independent air intakes Standard: manual rotameter Optional: automatic mass flow controller (MFC)
Illuminance	100~10,000lux, adjustable
Control System	Temperature, agitation speed, pH, DO, antifoam, and feeding control
Sterilization	Autoclaveable
Expandable	ORP electrode, biomass sensor, precision weighing balance, off-gas analyzer (global & domestic brand options available)

1.What are the key benefits of the integrated lighting glass bioreactor for plant cell culture?

A: The surrounding ring lamps provide even illumination throughout the entire tank to support plant cell photosynthesis and metabolite synthesis, preventing uneven lighting that can inhibit cell proliferation.
2.Will the lighting fixture affect temperature stability inside the glass vessel?

A: The external lampshade is separated from the culture tank, reducing heat transfer; paired with water circulation in the bottom jacket to maintain a steady temperature for heat-sensitive plant cells.
3.Can I adjust the light intensity and photoperiod of this illuminated bioreactor?

A: Yes. Light brightness, light/dark cycles, and spectrum can be customized to meet the photosynthetic requirements of different plant cell strains.
4.What volume ranges are available for the illuminated glass bioreactor?

A: Customizable total volumes range from 1 L to 20 L, suitable for small-scale sample cultivation up to pilot-scale plant cell process validation.
5.For which research scenarios are illuminated glass bioreactors best suited?

A: Specifically designed for plant cell culture, plant secondary metabolite extraction, and botanical biopharmaceutical R&D, they are ideal for university laboratories and biotech research institutes.
