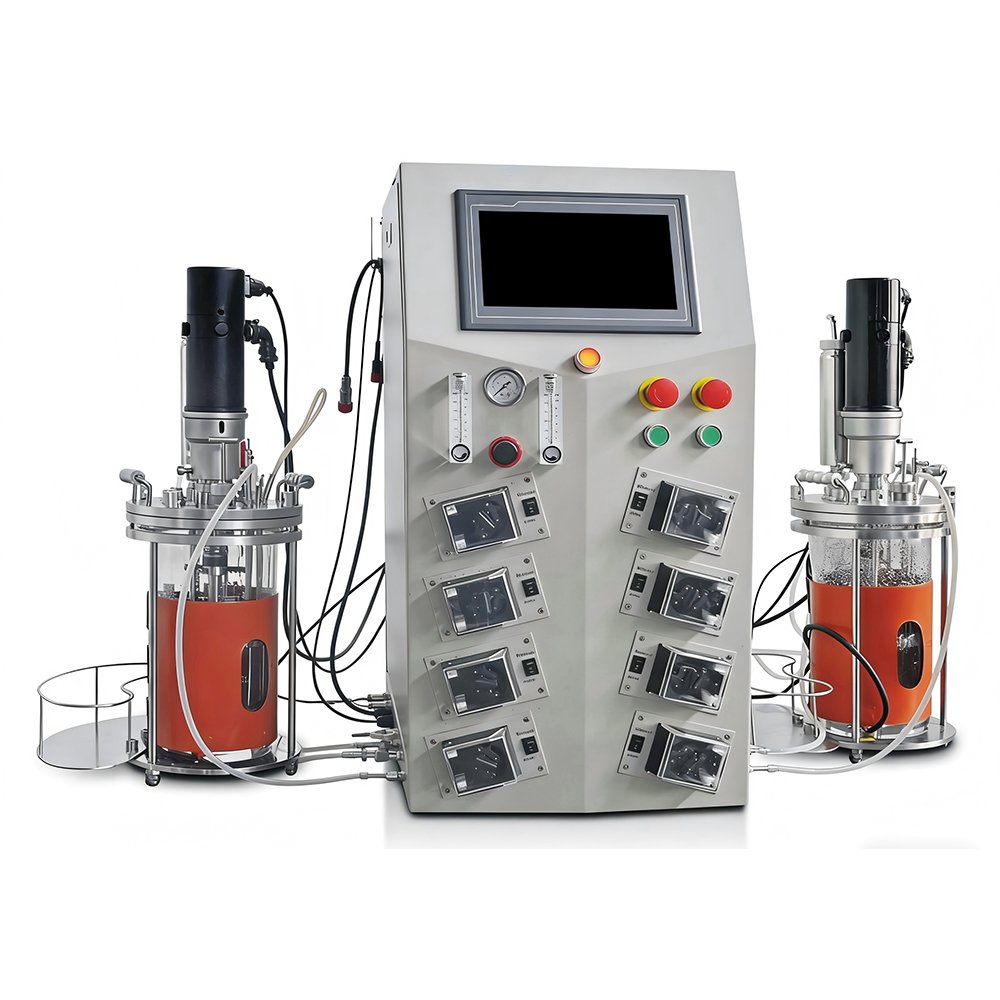

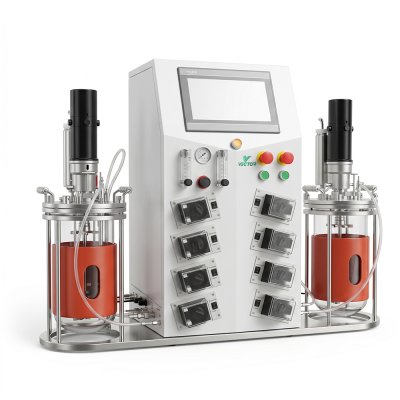

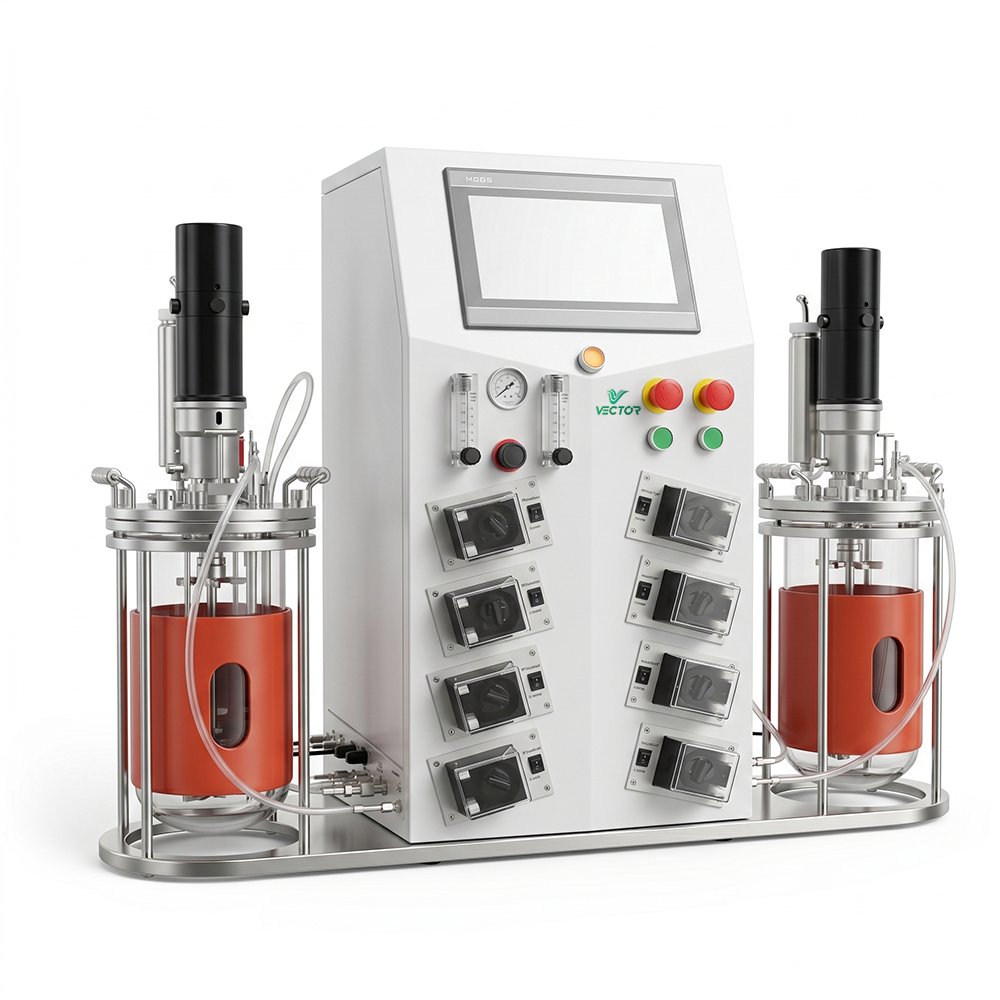

Benchtop Duplex Bioreactor

Product Introduction:

Customizable 1–20 L total volume bioreactor

Two glass vessels can be controlled independently at the same time.

Mechanical stirring or magnetic stirring is available, with support for interchangeable stirring paddles of various types.

Standard 4×2 peristaltic pumps, expandable configuration

Standard single-air-intake system, with optional multi-gas-intake system. Supports upgrade to automatic air-intake system.

Unified control: temperature, agitation, pH, DO, antifoam, feeding

10‑inch intuitive touchscreen for easy operation

All‑in‑one controller for reliable process control

Description

High-efficiency dual parallel glass bioreactor for laboratory microbial and cell cultivation, essential lab instrument for academic institutions and biotech R&D labs conducting parallel culture tests and bioprocess optimization
Single integrated all-in-one master controller operates two independent glass vessels simultaneously, effectively saving lab space and simplifying daily experimental operations
Compatible with VEC-JG & VEC-CG series standard glass tanks, users can replace vessels flexibly without extra hardware investment; each tank supports customizable 1L–20L volume for small sample testing to medium pilot fermentation
Two fermentation tanks support fully separate parameter regulation, independent setting of temperature, agitation, pH and dissolved oxygen to obtain comparable parallel experimental data and accelerate research progress
Dual stirring modes optional: mechanical stirring and magnetic stirring, matched with interchangeable impellers to adapt to diverse microbial strains and sensitive cell culture requirements
Standard configuration: 4 peristaltic pumps for each vessel (8 pumps total) to realize feeding, pH correction and defoaming addition; expandable auxiliary modules available for personalized experimental workflows
Standard single gas inlet system, optional multi-gas inlet and automatic gas supply upgrade solutions to precisely adjust dissolved oxygen environment for dual-tank cultivation
Centralized accurate control of temperature, stirring speed, pH, DO, defoaming and feeding; equipped with easy-to-operate 10-inch touchscreen, friendly for both veteran researchers and lab newbies
Stable integrated control unit reduces experimental errors and delivers repeatable cultivation results; space-saving & budget-friendly dual bioreactor widely applied in microbial culture, cell culture and comparative bioprocess research

Application

Microbial Strain Screening & Optimization

Screen bacteria, yeast and fungi efficiently to rapidly isolate high-yield and high-performance mutant strains.

Mammalian Cell Culture Optimization

Suitable for culture and process optimization of CHO, HEK293, Vero and other mainstream cell lines.

Biopharmaceutical Research & Development

Support R&D and production of recombinant proteins, monoclonal antibodies, vaccines and therapeutic enzymes.

Bioprocess Parameter Optimization

Precisely optimize pH, temperature, dissolved oxygen and stirring parameters to realize stable industrial scale-up.

Biochemical & Industrial Enzyme Production

Enable small-batch preparation and screening of functional enzymes, organic acids and biofuel products.

Academic & CRO Research Applications

Provide reliable technical support for university laboratories, research institutes and biotech CRO projects.

Fermentation Quality Control & Compliance Validation

Validate fermentation workflow stability and meet laboratory and industrial regulatory compliance requirements.

TECHNICAL PARAMETERS

Item	Details
Vessel	Single-wall or double-wall jacketed glass vessel (optional) Material:High-quality borosilicate glass Total volume: 1~20 L (customizable) Number of tanks:2 Working Load Rate:30%~70%
Agitation	Magnetic stirring or mechanical stirring (optional) Speed:0-2000rpm Blades:all alternative impeller styles support customization
Temp.	Temperature control range: Cooling water +5°C to 65°C Temperature sensor: PT100 platinum electrode
Feed	Standard 4×2 pumps; fixed speed or variable speed optional
Gas	Standard: single air intake Optional: multiple independent air intakes Standard: manual rotameter Optional: automatic mass flow controller (MFC)
Control System	Temperature, agitation speed, pH, DO, antifoam, and feeding control
Sterilization	Autoclaveable
Expandable	ORP electrode, biomass sensor, precision weighing balance, off-gas analyzer (global & domestic brand options available)

FAQS

1.What is the biggest advantage of a dual-glass bioreactor?

A: A single integrated controller operates two independent glass tanks simultaneously. This saves lab space, reduces equipment costs, and enables parallel comparative experiments for microbial and cell culture research.
2.Can the two glass vessels operate with completely separate culture parameters?

A: Yes. Temperature, stirring speed, pH, and dissolved oxygen (DO) can be individually set and adjusted for each tank, generating comparable experimental data without mutual interference.
3.Is the touchscreen easy to operate for novice lab technicians?

A: It comes with an intuitive 10-inch touchscreen to set, monitor and adjust all fermentation parameters, friendly to both new operators and experienced researchers.
4.Can I upgrade extra functional modules on this dual bioreactor?

A: Yes. The whole system features expandable configuration, supporting upgraded multi-gas intake system, automatic air supply and other customized auxiliary modules.
5. What application scenarios are dual glass bioreactors mainly used for?

A: Widely applied in microbial culture, mammalian cell culture, bioprocess optimization and parallel comparative fermentation experiments for labs and biotech institutes.
