Stainless Steel Plant Cell Fermentor for Suspension & Metabolite Production

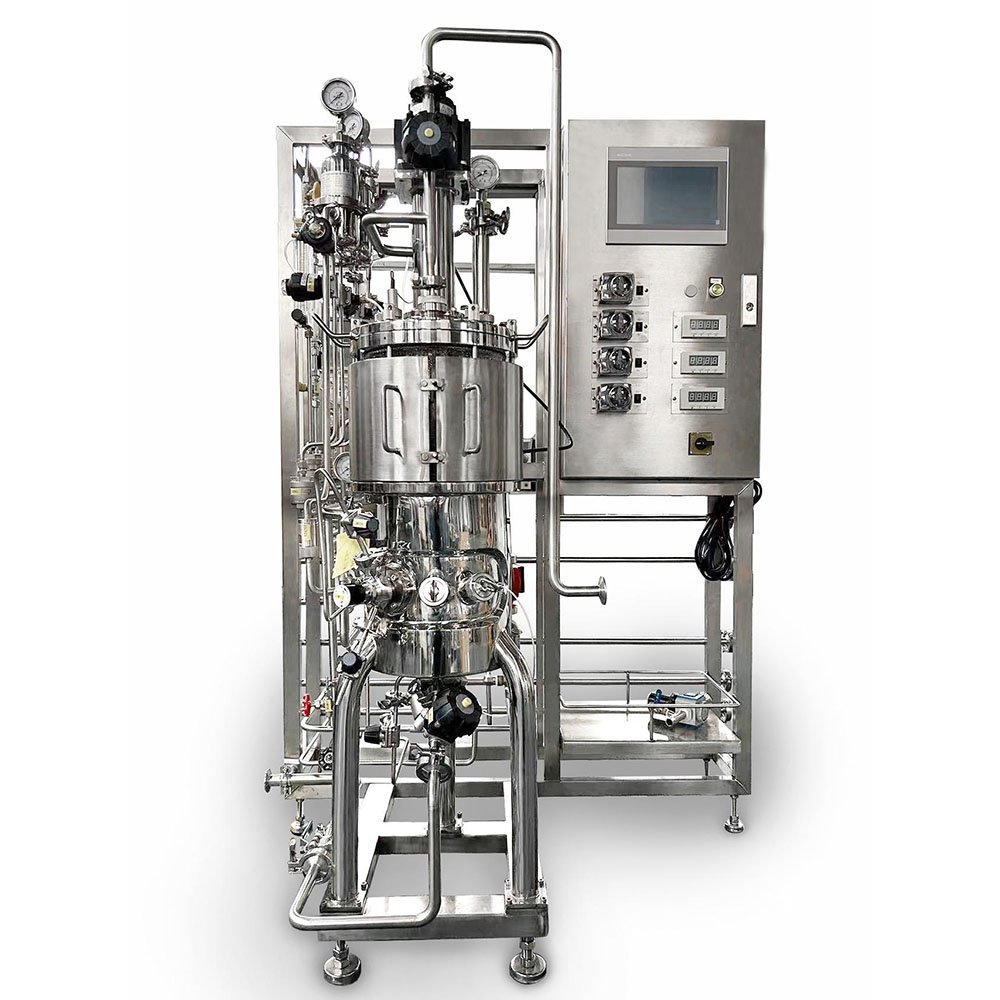

Stainless Steel Plant Cell Fermentor

Customizable 5L–100,000L stainless steel bioreactor, full scalable capacity from lab pilot to industrial mass production
SUS316L sanitary stainless steel tank with inner surface polishing Ra ≤ 0.4 μm, effectively reducing medium residue and cross-contamination risks
Optional mechanical stirring and low-shear magnetic stirring systems, matched with interchangeable impellers for diverse culture strains
Equipped with intuitive 10-inch touchscreen control panel, simple parameter setup, real-time monitoring and one-click operation for all operators
Centralized full-parameter synchronous control of temperature, agitation speed, pH, dissolved oxygen, defoaming addition and feed supplementation
Standard 4 peristaltic pumps per single tank unit (4×n pump layout), expandable functional modules to meet complex fermentation workflows
Standard single gas inlet system included; multi-gas intake and automatic air supply systems available as optional upgrades
Stable and sterile seed transfer pipeline design, ensuring pollution-free medium transfer between culture tanks
Large-volume stainless steel vessels compatible with CIP cleaning stations, enabling automatic, time-saving and thorough interior cleaning
Optional surrounding uniform illumination lamp assembly for photosynthetic cell and plant cell culture experiments

Professional illuminated stainless steel bioreactor exclusively customized for plant cell cultivation, specially designed for plant cell proliferation, photosynthetic metabolism and secondary metabolite accumulation research
Built-in uniform internal lighting system provides stable and even light irradiation to simulate natural plant growth environment, perfectly matching photosynthetic and metabolic demands of plant cell culture
Full-range scalable capacity 5L–100,000L supports seamless process scale-up from laboratory exploration and pilot trials to large-scale industrial plant cell production
Intelligent full-parameter centralized control precisely regulates temperature, agitation speed, pH, dissolved oxygen, defoaming and feeding to maintain stable plant cell fermentation conditions
User-friendly 10-inch touchscreen operation simplifies real-time parameter setting, monitoring and dynamic adjustment, greatly improving experimental and production efficiency
CIP cleaning compatible for large-volume models supports fast, thorough automatic cleaning, reduces manual maintenance workload and ensures long-term sterile production stability
Reliable scalable illuminated fermentation system widely applied in plant cell culture, plant strain domestication and bioactive substance development for biotech labs and pharmaceutical enterprises

Plant cell suspension culture and high-density proliferation for laboratory research and pilot-scale production.
Biosynthesis and large-scale production of plant secondary metabolites (flavonoids, polyphenols, alkaloids, etc.).
Breeding, domestication and high-density cultivation of rare medicinal plant cells and endangered plant germplasm.
Research on plant cell metabolism regulation and physiological mechanism exploration (photosynthesis, secondary metabolite synthesis).
Industrialization development of plant-derived bioactive ingredients (for pharmaceuticals, health products, cosmetics).

Item	Details
Vessel	Double-wall jacketed stainless steel vessel Material:The parts in contact with the material are made of 316L stainless steel, the casing is constructed from 304 stainless steel. Total volume: 5~100,000L (customizable) Working Load Rate:30%~70% Number of tanks：1
Agitation	Magnetic stirring or mechanical stirring (optional) Speed:0-1000rpm Blades:all alternative impeller styles support customization
Temp.	Temperature control range: Cooling water +5°C to 65°C Temperature sensor: PT100 platinum electrode
Feed	Standard 4 pumps; fixed speed or variable speed optional
Gas	Standard: single air intake Optional: multiple independent air intakes Standard: manual rotameter Optional: automatic mass flow controller (MFC)
Control System	Temperature, agitation speed, pH, DO, antifoam, and feeding control
Sterilization	Online steam sterilisation
Expandable	ORP electrode, biomass sensor, precision weighing balance, off-gas analyzer, four-valve feed system, automatic CIP, automatic SIP, (global & domestic brand options available)
Illuminance	100~10,000lux, adjustable

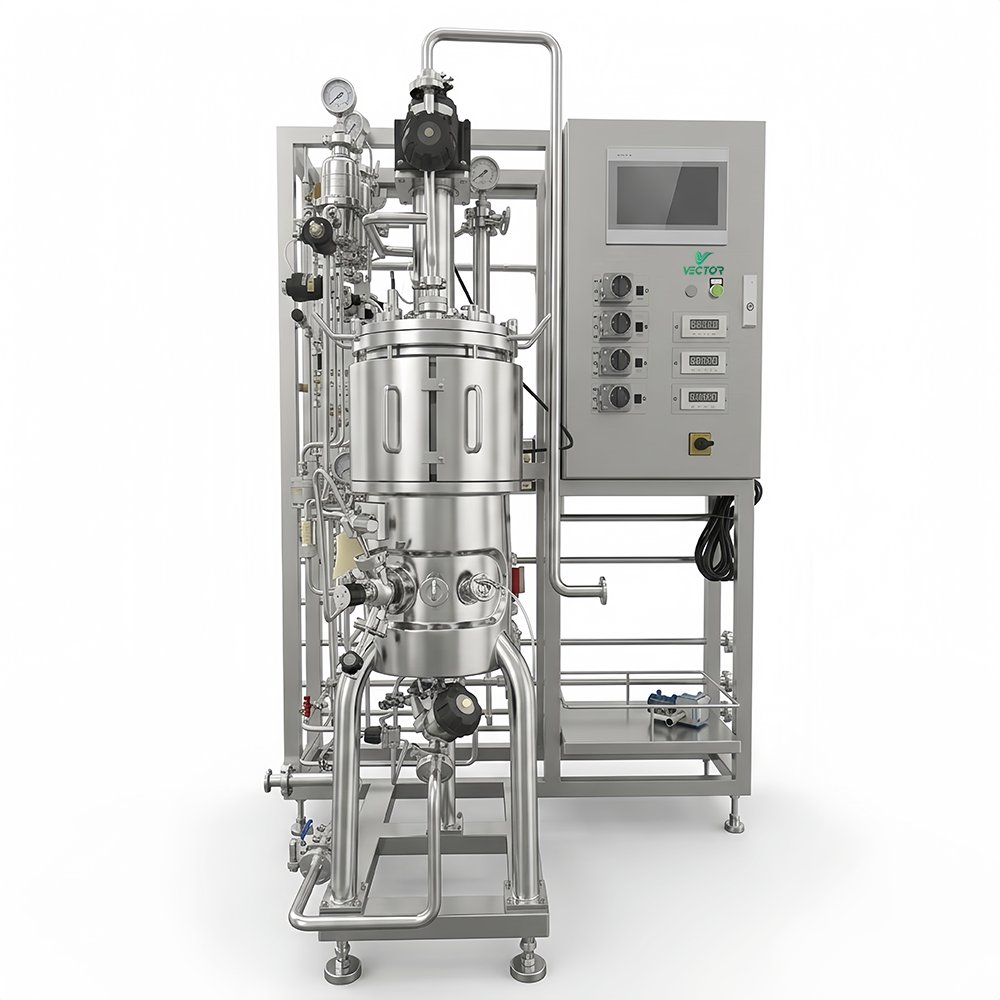

1.What is the main advantage of the VEC-JSG illuminated stainless steel bioreactor for plant cell culture?

A: It features a built-in internal uniform lighting system to simulate natural growth conditions, supporting stable photosynthesis and secondary metabolite accumulation while adopting low-shear stirring design to protect fragile plant cells.
2.What volume range does the stainless steel plant cell fermenter support?

A: It provides fully customizable volume from 5L to 100,000L, covering laboratory research, pilot trials and large-scale industrial plant cell cultivation scale-up.
3.Why is this stainless steel tank suitable for high-purity plant cell fermentation?

A: Constructed with SUS316L stainless steel with Ra ≤ 0.4μm inner polishing, it effectively reduces residue adhesion and microbial contamination, meeting strict bioprocess hygiene standards for plant cell culture.
4.What stirring options are available for sensitive plant cell cultivation?

A: Optional mechanical stirring and magnetic stirring with interchangeable impellers deliver low-shear mixing performance, avoiding cell damage and maintaining high cell viability during long-term cultivation.
5.Does the large-volume plant cell bioreactor support automatic cleaning?

A: Yes. Large-volume VEC-JSG models are compatible with CIP cleaning systems, enabling efficient and thorough tank sanitation, reducing manual maintenance and ensuring stable sterile production.
