The VEC-PD100P uses UHF and AE ultrasonic detection to accurately evaluate the insulation condition of high-voltage equipment, prevent sudden failures, extend service life, and ensure safe and stable operation of power assets.
·Automatic PD pattern recognition with accuracy over 85%
·Integrated on-line PD detection and time-difference location
·High sensitivity and fast refresh rate for UHF and ultrasonic PD testing
·Rich graphical display: UHF PRPS, PRPD, and ultrasonic spectrum, phase, pulse, waveform and flight maps
·Advanced intelligent algorithms: pulse identification, noise self-learning, 50/100Hz correlation, frequency analysis and alarms
·Strong anti-interference with hardware and digital filtering for reliable and accurate measurement

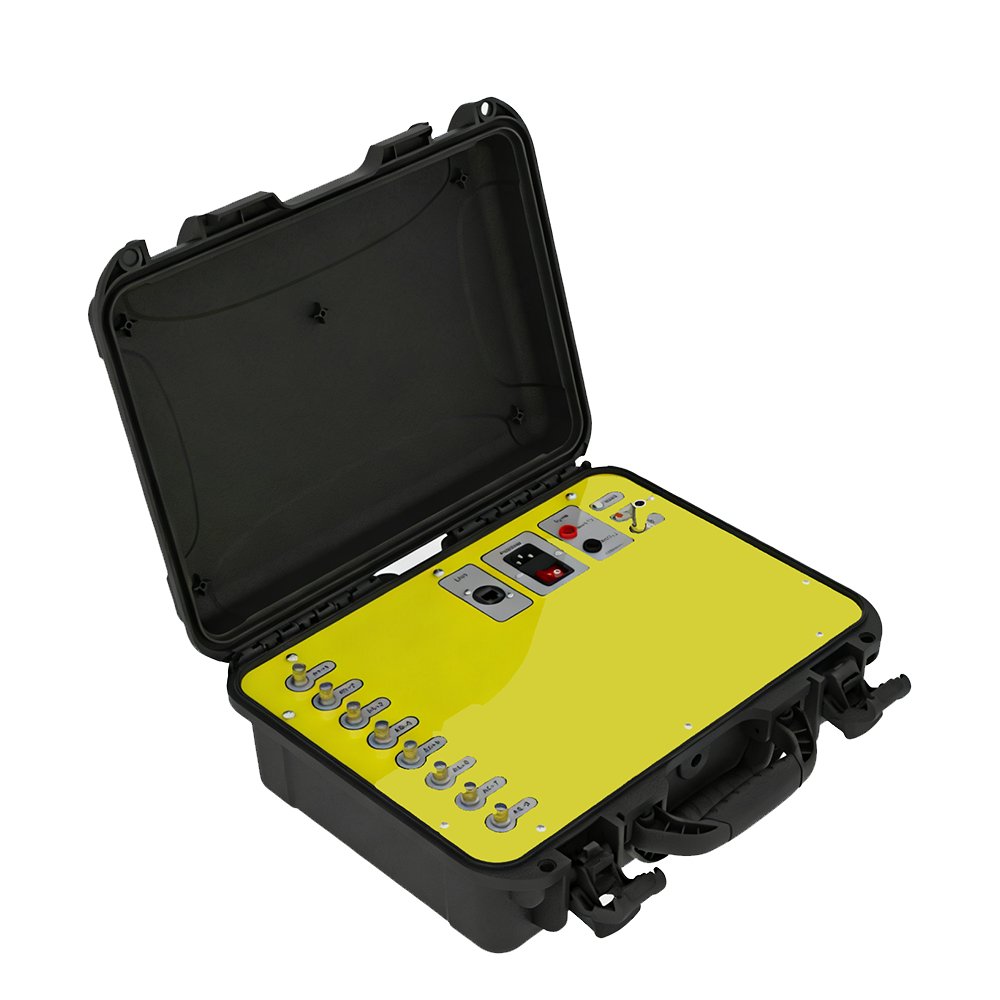

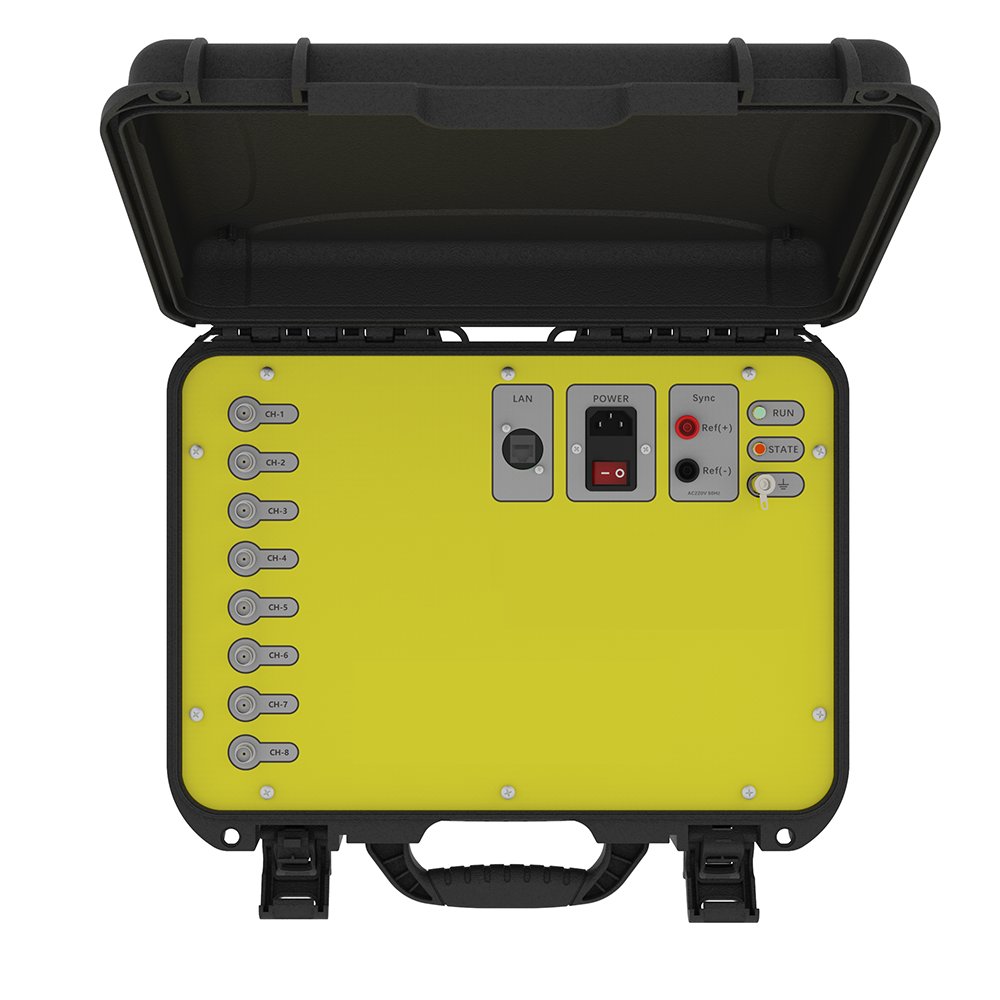

The VEC-PD100P is a portable partial discharge (PD) testing instrument designed to detect UHF and ultrasonic signals generated by partial discharge in the insulation of high-voltage equipment. It supports acoustic-electrical combined PD location to accurately analyze the insulation condition of HV assets.
Compact, lightweight, user-friendly and powerful, the VEC-PD100P enables efficient on-site testing, automatic diagnosis and precise localization of insulation defects.
It is widely applied to various high-voltage equipment including GIS, transformers, switch gears, generators and other HV assets.
FAQ
Q1: What is a portable partial discharge detection and location device?
A: This is a specialised instrument that can be rapidly deployed on-site to detect partial discharges within high-voltage equipment—such as transformers, GIS and switchgear—whilst power supply remains uninterrupted, and to precisely locate the source of the discharge. This helps prevent sudden failures and informs maintenance decisions.
Q2: What detection methods does it employ?
A: It primarily utilises combined Ultra-High Frequency (UHF) and Acoustic Emission (AE) detection technologies. This enables the localisation of discharge sources and is suitable for complex structures such as transformer oil tanks, GIS gas compartments and cable joints.
Q3: Is on-site operation complicated?
A: No, it is not. The instrument uses a laptop or tablet as the human-machine interface terminal; the interface is intuitive and operation is guided by a wizard. Furthermore, the instrument is designed to be lightweight and portable, allowing a single operator to carry it and perform tasks.
Q4: What are the typical application scenarios?
A: It is widely used in substations, industrial plants, and the petrochemical, metallurgical and mining industries for routine inspections, preventive maintenance and fault diagnosis.
Q5: Does it support data storage and export?
A: It supports real-time data logging, historical data storage and waveform display; test data can be exported for further analysis and report generation.
Live patrols and routine inspections of substation equipment
Factory acceptance and commissioning tests for new high-voltage equipment
Defect location and fault troubleshooting for switchgear and GIS
Insulation condition assessment of transformers, cables and accessories
Preventive maintenance for internal power distribution systems in industrial enterprises
On-site screening for hidden hazards at new energy and rail transit power stations
Daily safety inspections of high-voltage electrical equipment in urban power grids
Description | Parameter |
Number of Channels | 5 channels |
Sensors | UHF Sensor, Ultrasonic Sensor |
UHF Frequency Band | 300 ~ 1500 MHz |
High Frequency Band | 20 ~ 200 kHz |
UHF Dynamic Range | -80 ~ -20 dBm |
UHF Sensor Effective Height | ≥ 12 mm |
Ultrasonic Sensor Peak Sensitivity | ≥ 60 dB(V/(m/s)) |
Ultrasonic Sensor Average Sensitivity | ≥ 40 dB(V/(m/s)) |
Ultrasonic Detection Sensitivity | ≤ 40 dB |
Measurement Time Accuracy | 1 ns |
Power Frequency Synchronization | Wireless synchronization, Power synchronization, Internal synchronization, External synchronization |
Software | Real-time spectrum acquisition for each channel, automatic insulation defect recognition, automatic PD location |
Power Supply | 220 VAC, rechargeable battery (8 hours operation) |
Operating Temperature | -20 ~ +55 °C |
Service Life | More than 5 years |
Dimensions | 400 * 250 * 130 mm |
The VEC-PD100P is a portable partial discharge (PD) testing instrument designed to detect UHF and ultrasonic signals generated by partial discharge in the insulation of high-voltage equipment. It supports acoustic-electrical combined PD location to accurately analyze the insulation condition of HV assets.
