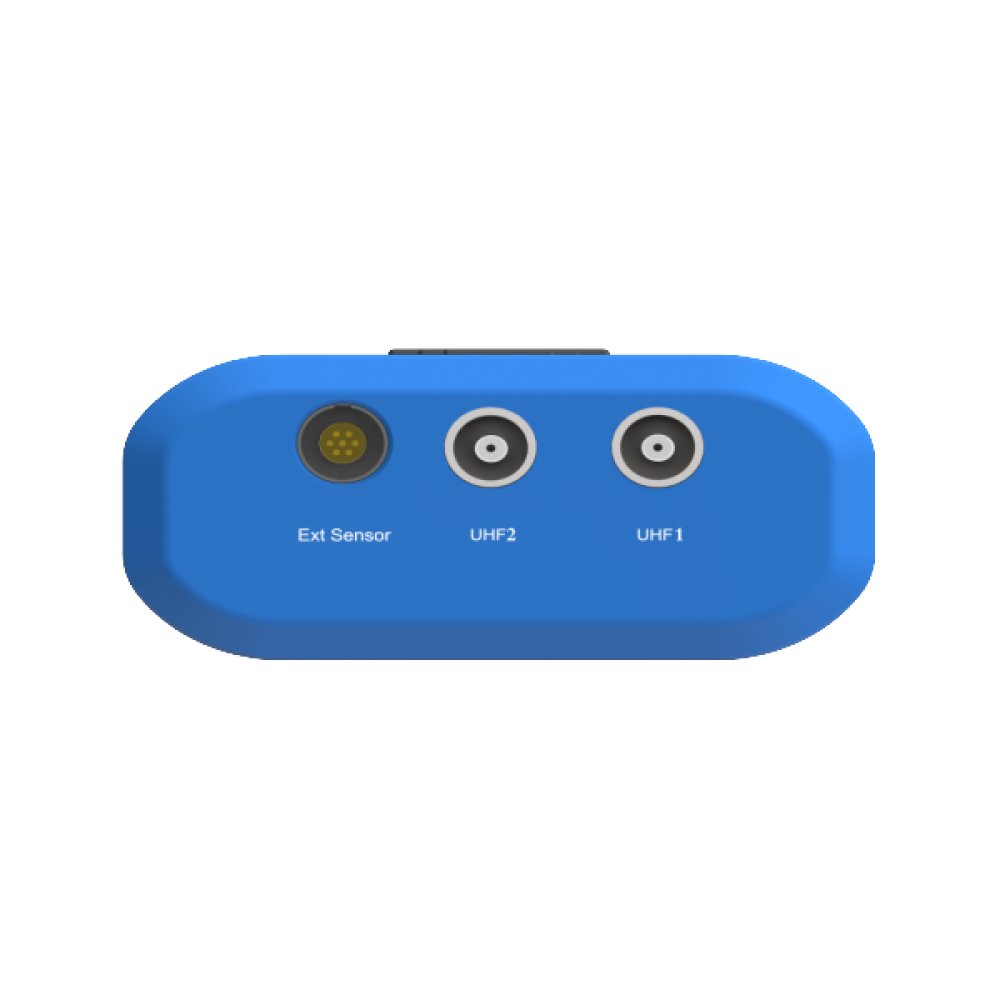

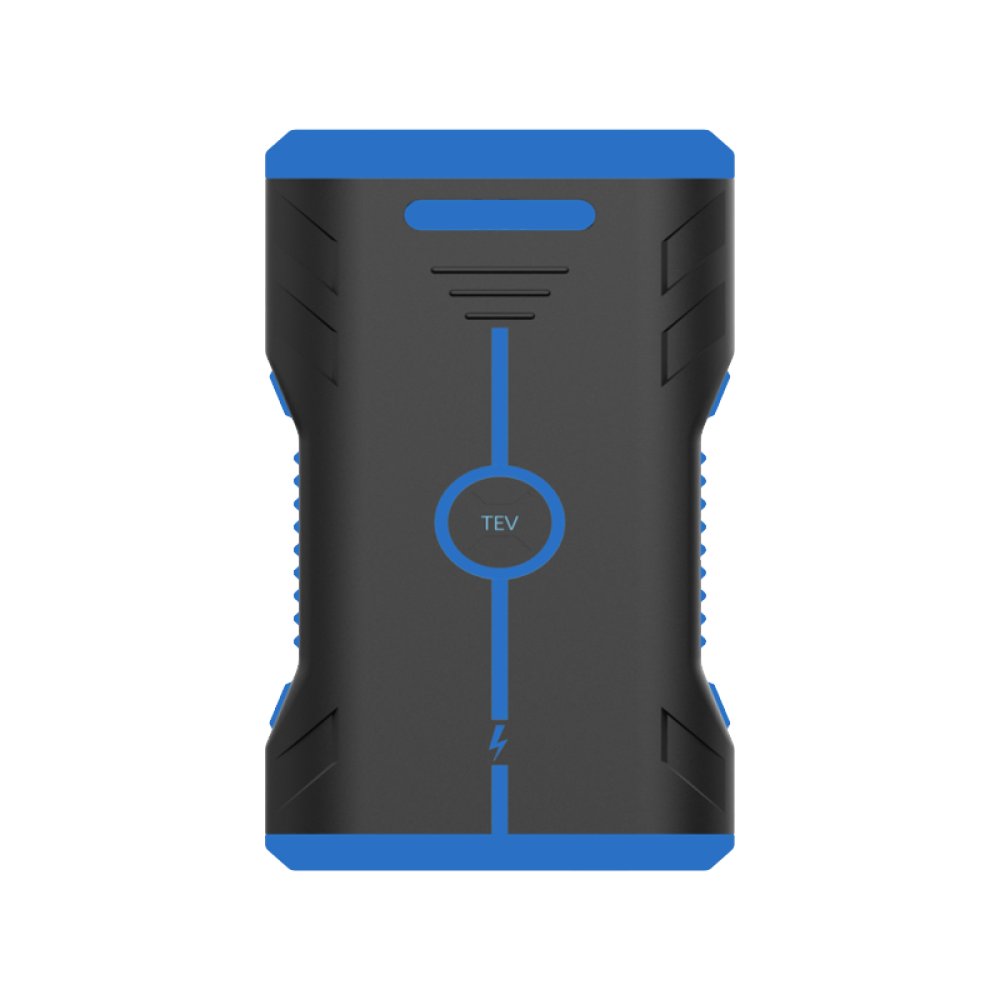

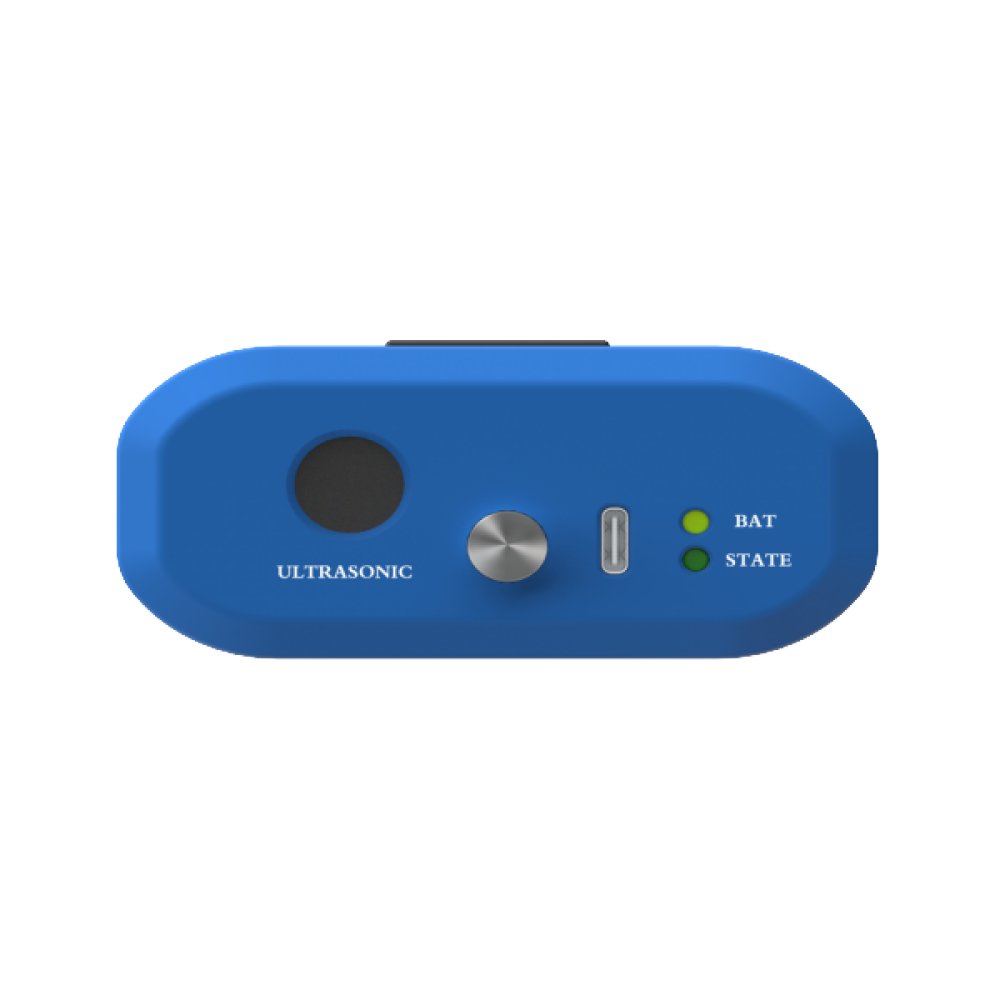

VEC-PD600H Handheld PD Detector

VEC-PD600H wireless intelligent multifunctional partial discharge detector, designed with intelligence, accuracy and portability in mind, employs wireless sensors to integrate multiple detection methods including ultra-high frequency, ultrasonic (contact/non-contact), high frequency and transient earth voltage. It offers outstanding sensitivity, linearity and dynamic range, making it suitable for live partial discharge detection on the vast majority of high-voltage equipment.

The VEC-PD600H is a wireless intelligent multi-functional partial discharge detector operated via smartphone or tablet. Its dedicated application integrates big data, cloud computing, IoT, and mobile internet technologies, enabling intelligent PD diagnosis and remote assistance to significantly enhance inspection efficiency.

Equipped with five interchangeable sensors, the VEC-PD600H supports multiple detection methods:

TEV, ultrasonic, and HFCT sensors for partial discharge testing in high-voltage switchgear and ring main units

Ultrasonic and UHF sensors for assessing the insulation condition of GIS

Ultrasonic and HFCT sensors for cable insulation diagnosis

Its integrated expert diagnostic system analyses PD data, evaluates discharge intensity, and pinpoints potential defects. Widely employed in power utilities, railway systems, industrial electrical maintenance, and high-voltage equipment monitoring, the VEC-PD600H delivers reliable, high-precision partial discharge detection for critical power assets.

FAQ

Q1: What is a handheld partial discharge detector?

A: This is a portable instrument specifically designed for rapid on-site inspections, used to detect partial discharge defects in high-voltage equipment such as switchgear, distribution cabinets, cable terminations and GIS whilst the equipment is live. It supports multiple detection modes, including Ultra-High Frequency (UHF), Transient Earth Voltage (TEV), Acoustic Emission (AE/AA) and High-Frequency Current (HFCT), helping operations and maintenance personnel to quickly assess the insulation condition of the equipment.

Q2: What detection methods does it employ? What scenarios are they suitable for?

A: The instrument integrates five mainstream detection technologies: 1) Acoustic Emission (AE/AA): Suitable for partial discharge detection in switchgear and GIS equipment; 2) Transient Earth Voltage (TEV): Suitable for detecting partial discharges inside switchgear; 3) Ultra-High Frequency (UHF): Suitable for detecting discharges inside GIS and switchgear; 4) High-frequency current (HFCT): Suitable for partial discharge detection in cables and joints.

Q3: Is it easy for field engineers to operate?

A: It is very user-friendly. It features simple operation, the ability to connect to a mobile phone or laptop for display, a lightweight handheld design, and requires no specialist training.

Q4: What are the typical application scenarios?

A: It is widely used in substations, industrial plants, and the petrochemical, metallurgical and mining industries for routine inspections, preventive maintenance and fault diagnosis.

Q5: Does it support data storage and export?

A: It supports real-time data logging, historical data storage and waveform display; test data can be exported for further analysis and report generation.

Live patrols and routine inspections of substation equipment

Factory acceptance and commissioning tests for new high-voltage equipment

Defect location and fault troubleshooting for switchgear and GIS

Insulation condition assessment of transformers, cables and accessories

Preventive maintenance for internal power distribution systems in industrial enterprises

On-site screening for hidden hazards at new energy and rail transit power stations

Daily safety inspections of high-voltage electrical equipment in urban power grids
