Handheld Ultrasonic Cell Disruptor
VEC-250UPS is a basic type handheld ultrasonic cell disruptor.

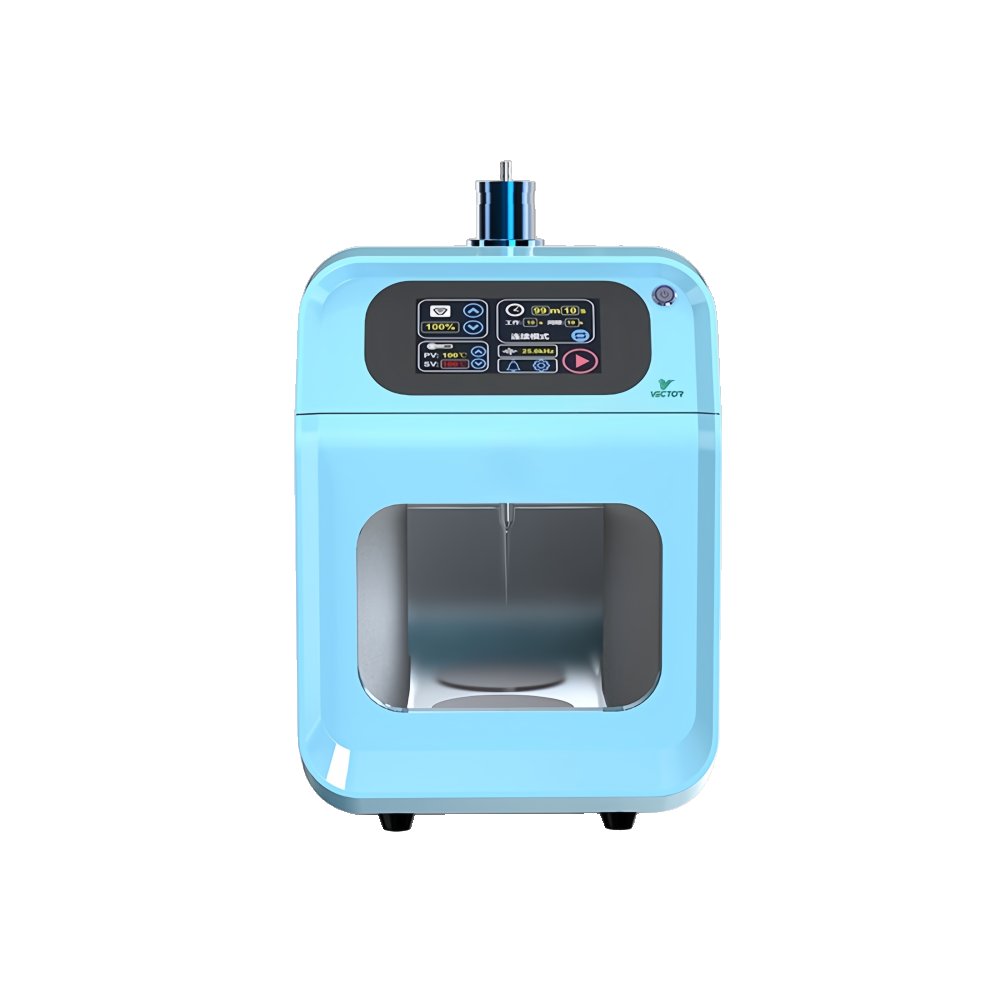

Intelligent Integrated Ultrasonic Homogenizer
Product Introduction:
VEC-DT series is an integrated ultrasonic cell homogenizer. The main unit, control screen and soundproof box are designed as an integrated unit. It has a streamlined appearance, a user-friendly HMI, a small size and save space. It is equipped with functions such as automatic elevation, ozone disinfection and ultraviolet sterilization. It also has functions such as automatic frequency tracking and automatic probe recognition.
VEC-DT intelligent integrated ultrasonic homogenizer features
1. Appearance design: The shell is made by ABS injection molding, with a
streamlined appearance and an ergonomic operation platform. The main unit and
the soundproof box are integrated. The entire machine is elegant and stylish.
2. 7-inch TFT medical-grade touch screen, displaying various parameters intuitively.
3. Using digital integrated circuits, the instrument can operate without power
supply and perform continuous ultrasound.
4. Equipped with an automatic lifting platform, featuring functions such as
ultraviolet sterilization, ozone disinfection, and lighting.
5. The ultrasonic probe is small and exquisite. The transducer uses a German 1BDI
chip, with high ultrasonic ef< ciency and low heat generation.
6. The intelligent design of the soundproof box: Different from the traditional
design, it uses built-in sandwiched soundproof cotton. The interior of the box is
made of PVC soft material. During experiments, there is no longer any worry about
the leakage of waves splashing onto the soundproof cotton and causing bacterial
growth. At the same time, it also ensures better sound insulation effect.
· Biochemistry
· Microbiology
· Medicinal Chemistry
· Surface Chemistry
· Physical Chemistry
· Zoology
TECHNICAL PARAMETERS
VEC-DT Intelligent Integrated Ultrasonic Homogenizer Technical Parameters
Model | VEC 650DT | VEC 900DT | VEC 1000DT | VEC 1200DT | VEC 1500DT |
Output Power | 65 650W (10 100% adjustable)Note: Can be set to 1% steps | 90 900W (10 100% adjustable)Note: Can be set to 1% steps | 100 1000W (10 100% adjustable)Note: Can be set to 1% steps | 120 1200W (10 100% adjustable)Note: Can be set to 1% steps | 150 1500W (10 100% adjustable)Note: Can be set to 1% steps |
Working Frequency | 20 25KHz | 20 25KHz | 20 25KHz | 20 25KHz | 20 25KHz |
Processing Capacity | 0.1 500ml(Need to select corresponding probe) | 0.1 800ml(Need to select corresponding probe) | 0.2 1000ml(Need to select corresponding probe) | 1 1500ml(Need to select corresponding probe) | 1 2500ml(Need to select corresponding probe) |
Timer | 0.1s 99h adjustable | 0.1s 99h adjustable | 0.1s 99h adjustable | 0.1s 99h adjustable | 0.1s 99h adjustable |
Ultrasonic Pulse Time Adjustment | 0.1 99.9s adjustable(Ultrasonic On/Ultrasonic Off) | 0.1 99.9s adjustable(Ultrasonic On/Ultrasonic Off) | 0.1 99.9s adjustable(Ultrasonic On/Ultrasonic Off) | 0.1 99.9s adjustable(Ultrasonic On/Ultrasonic Off) | 0.1 99.9s adjustable(Ultrasonic On/Ultrasonic Off) |
Temperature Control | Continual monitoring(0 100℃, optional thermostat device) | Continual monitoring(0 100℃, optional thermostat device) | Continual monitoring(0 100℃, optional thermostat device) | Continual monitoring(0 100℃, optional thermostat device) | Continual monitoring(0 100℃, optional thermostat device) |
Alarm | Over temperature, time | Over temperature, time | Over temperature, time | Over temperature, time | Over temperature, time |
Input Method + Display Method | 7 inch TFT true color medical grade resistive screen | 7 inch TFT true color medical grade resistive screen | 7 inch TFT true color medical grade resistive screen | 7 inch TFT true color medical grade resistive screen | 7 inch TFT true color medical grade resistive screen |
Display Content | Frequency, temperature, power, time etc. display | Frequency, temperature, power, time etc. display | Frequency, temperature, power, time etc. display | Frequency, temperature, power, time etc. display | Frequency, temperature, power, time etc. display |
Protection Device | Program automatic correction, overload, over temperature protection display | Program automatic correction, overload, over temperature protection display | Program automatic correction, overload, over temperature protection display | Program automatic correction, overload, over temperature protection display | Program automatic correction, overload, over temperature protection display |
Password | With user password protection | With user password protection | With user password protection | With user password protection | With user password protection |
Lifting Platform | 304 stainless steel electric lifting | 304 stainless steel electric lifting | 304 stainless steel electric lifting | 304 stainless steel electric lifting | 304 stainless steel electric lifting |
Auxiliary Function | Auxiliary function | Auxiliary function | Auxiliary function | Auxiliary function | Auxiliary function |
Dimensions | 310×340×510mm | 310×340×510mm | 310×340×510mm | 310×340×510mm | 310×340×510mm |
This Instrument Optional Probe Rod | Φ2、Φ3、Φ6、Φ8、Φ10、Φ13 | Φ2、Φ3、Φ6、Φ8、Φ10、Φ13、Φ15 | Φ2、Φ3、Φ6、Φ8、Φ10、Φ13、Φ15 | Φ3、Φ6、Φ10、Φ13、Φ15、Φ20、Φ22 | Φ3、Φ6、Φ10、Φ13、Φ15、Φ20、Φ22 |
High Borosilicate Temperature Controlled Cup Optional | 50ml、100ml、250ml、500 ml | 50ml、100ml、250ml、500 ml、1000 ml | 50ml、100ml、250ml、500 ml、1000 ml | 50ml、100ml、250ml、500 ml、1000 ml | 50ml、100ml、250ml、500 ml、1000 ml |
Power Supply AC | 220V±5%/50Hz (Customizable 110V60Hz) | 220V±5%/50Hz (Customizable 110V60Hz) | 220V±5%/50Hz (Customizable 110V60Hz) | 220V±5%/50Hz (Customizable 110V60Hz) | 220V±5%/50Hz (Customizable 110V60Hz) |
