Handheld Ultrasonic Cell Disruptor
VEC-250UPS is a basic type handheld ultrasonic cell disruptor.

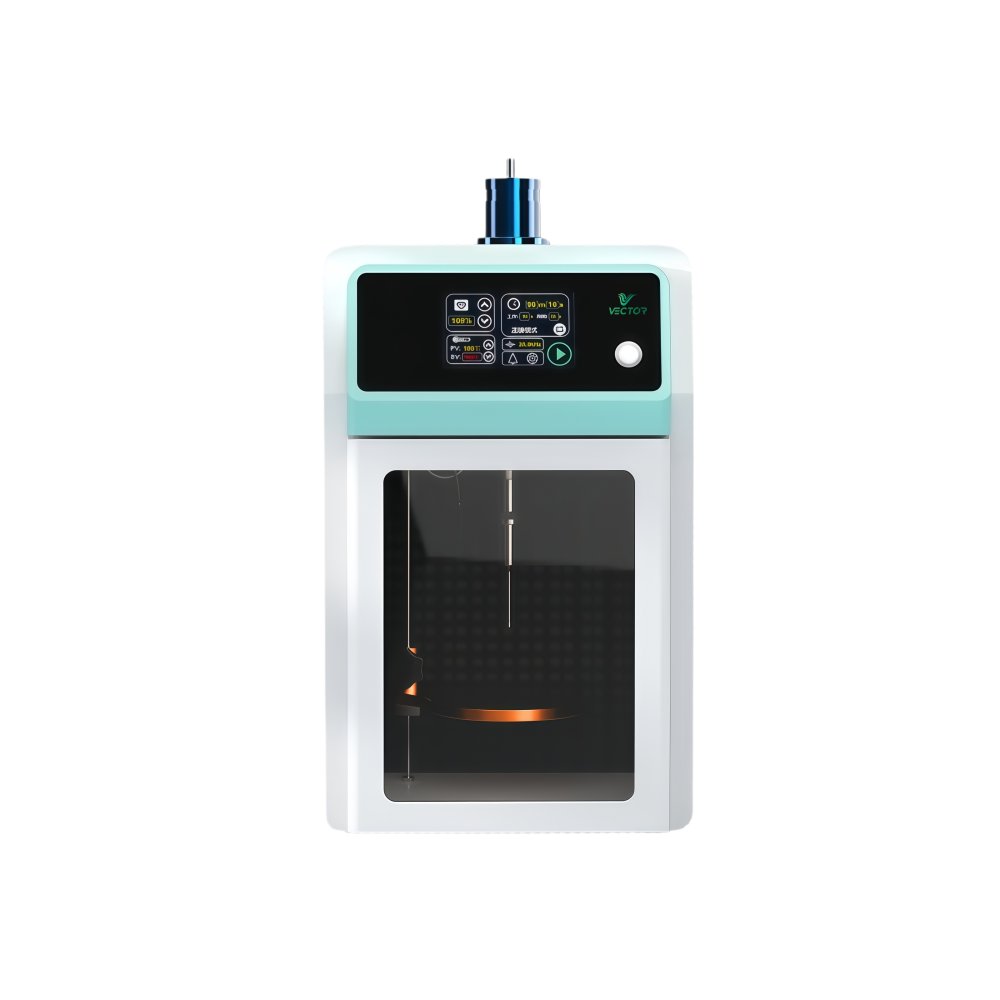

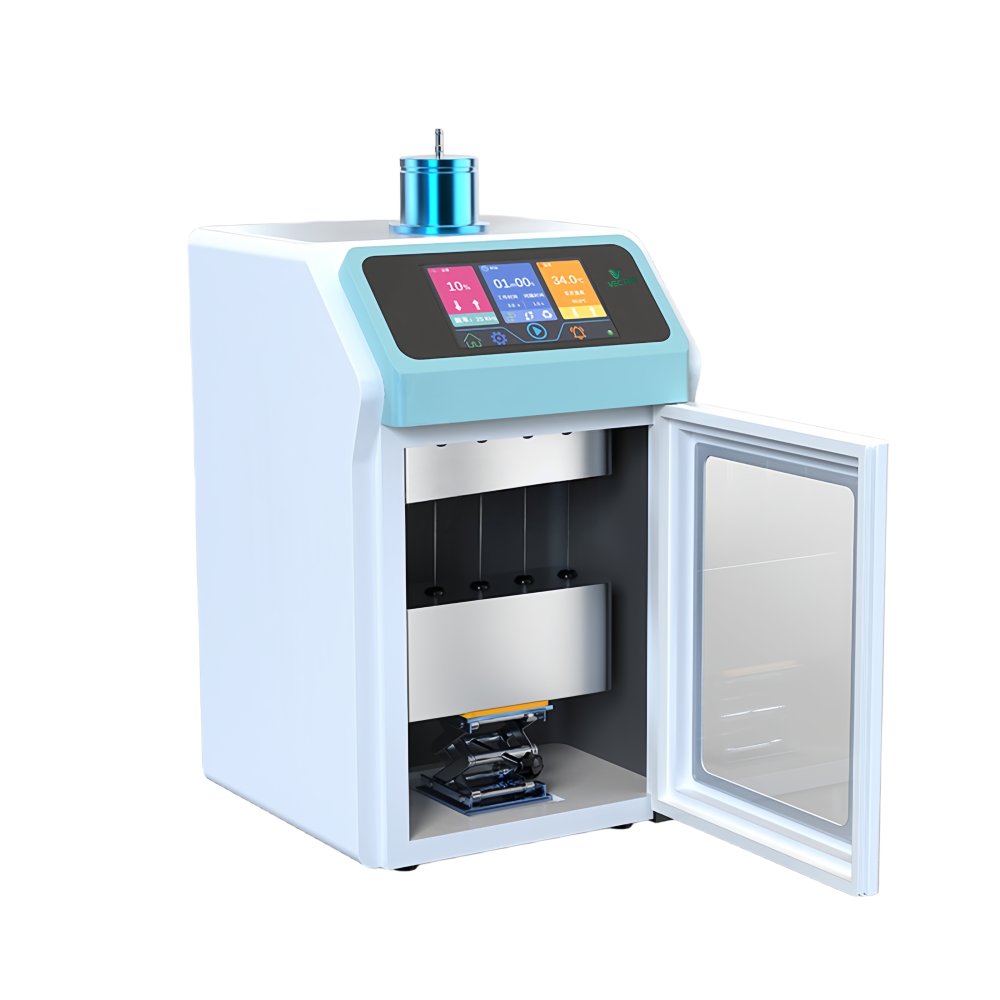

Integrated Ultrasonic Homogenizer
Product Introduction:
VEC-T series integrated ultrasonic homogenizer features an integrated design of the control screen and the soundproof box, touchscreen operation, and functions such as automatic sweep frequency tracking and time control. The equipment has an automatic recognition function for ultrasonic extenders. When replacing titanium alloy extenders of different sizes, no manual adjustment is required. The instrument has an automatic recognition feature.
Product Features
VEC-T series integrated ultrasonic homogenizer features
VEC-T series integrated ultrasonic homogenizer is new generation of ultrasonic techniques. It utilises integrated digital circuits and features automatic frequency tracking and automatic power compensation; ultrasonic operation is stable. Compared to traditional ultrasonic homogenisers, it offers certain advantages in terms of continuous ultrasonic operation, no-load ultrasonic operation, intermittent ultrasonic operation, and the service life of the ultrasonic probe.
The ultrasonic probe is made from a high-purity titanium alloy conforming to the American TC4 standard.
Product Features:
1. Utilising digital integrated circuits, the instrument supports no-load and continuous ultrasonic operation.
2. Equipped with a lifting platform and lighting system; optional extras include an automatic lifting platform and UV sterilisation function.
3. 7-inch TFT medical-grade touchscreen with intuitive display of all parameters.
4. High-quality soundproofing materials are used to ensure superior sound insulation. The spacious operating area facilitates ease of use.
5. The ultrasound probe is compact and refined; the transducer utilises German IBDI crystals, ensuring high ultrasound efficiency and minimal heat generation.
Application
· Biochemistry
· Microbiology
· Medicinal Chemistry
· Surface Chemistry
· Physical Chemistry
· Zoology
· Medicine
· Clinical Laboratory Science
TECHNICAL PARAMETERS
VEC-T Integrated Ultrasonic Homogenizer Technical Parameters
Item | VEC-650T | VEC-900T | VEC 1000T | VEC-1200T | VEC-1500T |
Model | VEC-650T | VEC-900T | VEC-1000T | VEC-1200T | VEC-1500T |
Ultrasonic power | 65-650W(10-100% adjustable)Note: It can be set to 1% step | 900W(10-100% adjustable)Note: It can be set to 1% step | 1000W(10-100% adjustable)Note: It can be set to 1% step | 1200W(10-100% adjustable)Note: It can be set to 1% step | 1500W(10-100% adjustable)Note: It can be set to 1% step |
Working frequency | 20-35KHz Automatic frequency tracking | 25KHz Automatic frequency tracking | 25KHz Automatic frequency tracking | 25KHz Automatic frequency tracking | 25KHz Automatic frequency tracking |
Throughput | 0.1-500ml(with corresponding probe to be selected) | 0.1-800ml(with corresponding probe to be selected) | 0.1-900ml(with corresponding probe to be selected) | 0.1-1500ml(with corresponding probe to be selected) | 0.1-2500ml(with corresponding probe to be selected) |
Time set | 0.1s-9999m; The pulse gap time can be adjusted: 0.1s 99.9s | 0.1s-9999m; The pulse gap time can be adjusted: 0.1s-99.9s | 0.1s-9999m; The pulse gap time can be adjusted: 0.1s-99.9s | 0.1s-9999m; The pulse gap time can be adjusted: 0.1s-99.9s | 0.1s-9999m; The pulse gap time can be adjusted: 0.1s-99.9s |
Temperature | 0℃ to 100℃ (optional: equipped with a constant temperature device) | 0℃ to 200℃ (optional: equipped with a constant temperature device) | 0℃ to 200℃ (optional: equipped with a constant temperaure device) | 0℃ to 200℃ (optional: equipped with a constant temperature device) | 0℃ to 200℃ (optional: equipped with a constant temperature device) |
Alarm | Faults, temperature, time | Faults, temperature, time | Faults, temperature, time | Faults, temperature, time | Faults, temperature, time |
Operation | 7-inch TFT touch control | 7-inch TFT touch control | 7-inch TFT touch control | 7 inch TFT touch control | 7-inch TFT touch control |
Display content | Frequency, temperature, power, time, etc. are displayed. | Frequency, temperature, power, time, etc. are displayed. | Frequency, temperature, power, time, etc. are displayed. | Frequency, temperature, power, time, etc. are displayed. | Frequency, temperature, power, time, etc. are displayed. |
Protector | The program automatically corrects errors, and displays protection for overload and overheating. | The program automatically corrects errors, and displays protection for overload and overheating. | The program automatically corrects errors, and displays protection for overload and overheating. | The program automatically corrects errors, and displays protection for overload and overheating. | The program automatically corrects errors, and displays protection for overload and overheating. |
Size of the soundproof box | 330×300×500mmEquipped with lighting function (can be upgraded to low temperature circulation function) | 330×300×500mmEquipped with lighting function (can be upgraded to low temperature circulation function) | 330×300×500mmEquipped with lighting function (can be upgraded to low temperature circulation function) | 330×300×500mmEquipped with lighting function (can be upgraded to low temperature circulation function) | 330×300×500mmEquipped with lighting function (can be upgraded to low temperature circulation function) |
Optional probes | φ2、φ3、φ6、φ8、φ10、φ13 | φ2、φ3、φ6、φ8、φ10、φ13 | φ2、φ3、φ6、φ8、φ10、φ13 | φ2、φ3、φ6、φ8、φ10、φ13 | φ2、φ3、φ6、φ8、φ10、φ13 |
Glass cups options | 50ml、100ml、250ml、500ml | 50ml、100ml、250ml、500ml | 50ml、100ml、250ml、500ml | 50ml、100ml、250ml、500ml | 50ml、100ml、250ml、500ml |
