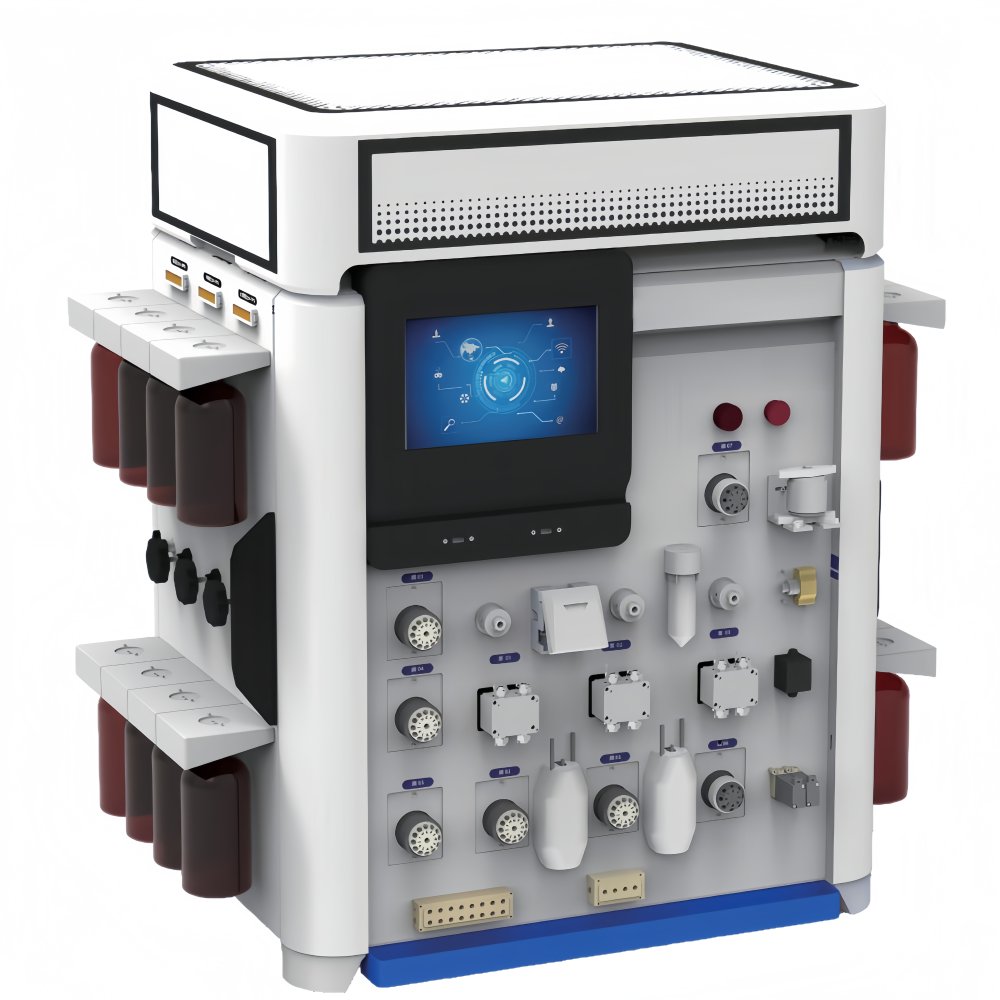

VEC-HL12 Oligonucleotide Synthesizer

VEC-HL12 Oligonucleotide Synthesizer

Product Introduction:

VEC-HL12 high throughput oligonucleotide synthesizer is mainly used for synthesizing DNA, RNA, special monomers (LNA, dU, dIl) and thio-modified nucleic acids. It is suitable for clinical research, pharmaceutical development, and the synthesis of molecular diagnostic probes. This instrument supports a stable and easily expandable oligonucleotide synthesis process, covering large-scale nucleic acid synthesis, with a maximum capacity of up to 12 mmol.

Product Features

Synthesis Scale:10 μM-12 mM (Actual maximum: 8 mmol).

Phosphoramidite Reagent Ports: 16.

Auxiliary Reagent Ports: 14.

Number of Pumps: 2.

Tubing Material: FEP / PEEK / ETFE.

Sensors:Conductivity, UV, Pressure, Flow Rate.

Maximum Flow Rate: 2 × 150 ml/min.

It is resistant to the corrosion of tetrahydrofuran reagents.

The circulation system is equipped with an independent pump, eliminating the risk of cross-contamination of reagents.

Comply with the relevant regulations of the FDA CE and USP.

Application

Nucleic Acid Drug R&D
Gene Therapy
Molecular Diagnosis & IVD
Biopharmaceutical Support
Academic & Scientific Research
CRO/CDMO & Industrial Production
Agriculture & Environmental Monitoring
DNA digital data storage

TECHNICAL PARAMETERS

Parameter	Specification
Synthesis Scale	10 μM-15.5 mM
Synthesis Channel	1 channel
Coupling Efficiency	> 99%
Phosphoramidite Reagent Ports	17-19
Auxiliary Reagent Ports	12-14
Cycle Time	20-45 min
Pump Flow Rate	Single pump 0-200 ml/min
Pump Quantity	3 pumps; independent circulation pump to reduce risk of reagent flow-path contamination
Material	Resistant to organic solvents such as tetrahydrofuran (THF)
Monitoring Parameters	UV, conductivity, pH, pressure, flow rate
Power Supply	AC 110-220 V, 50-60 Hz
Max Power Consumption	1500 W
Dimension	700550870mm
Weight	65KG
