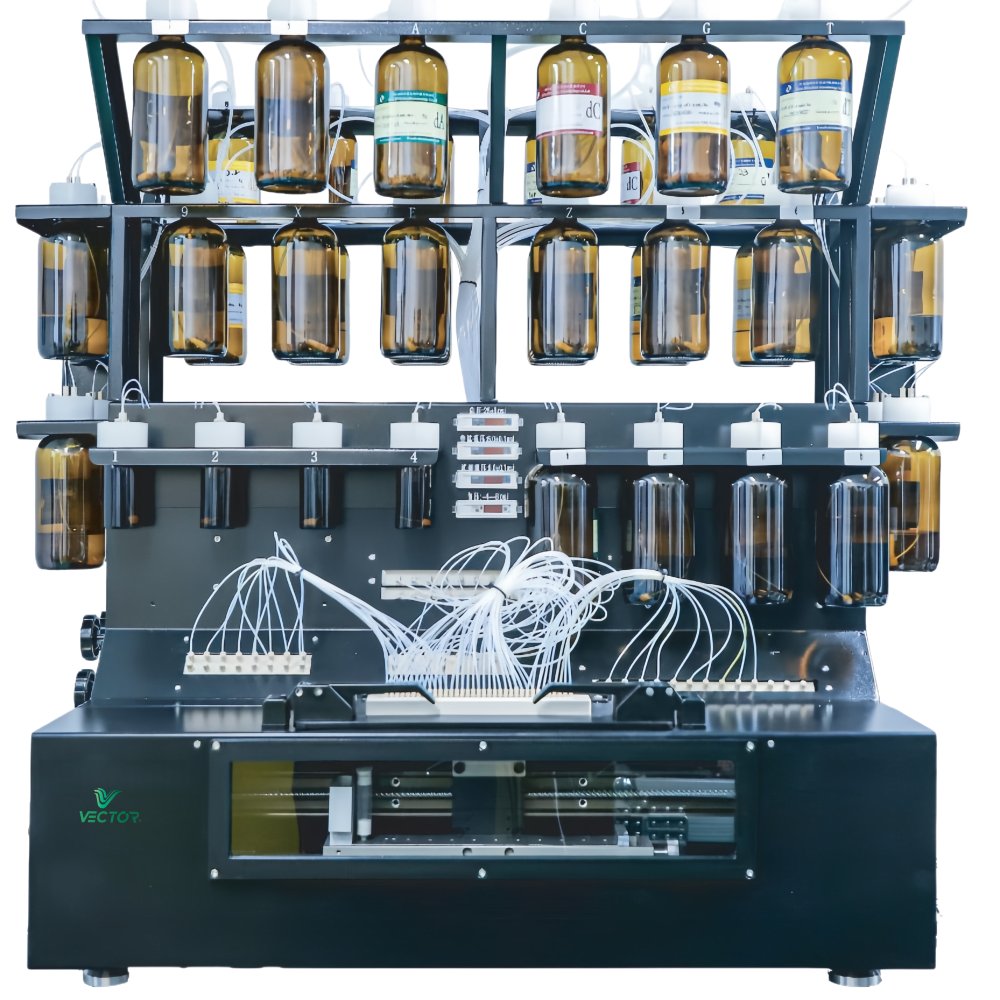

VEC-HCY-12P Nucleic Acid Synthesizer

VEC-HCY-12P Nucleic Acid Synthesizer

Product Introduction:

VEC-HCY-12P nucleic acid synthesizer is mainly used for synthesizing DNA, RNA, special monomers (LNA, dU, dI) and thio-modified nucleic acids, and is applicable to research and development in fields such as general synthesis, detection of probes, special modification labeling, nucleic acid nanomaterials and nucleic acid drugs. This equipment can set different synthesis programs for different synthesis columns, and can synthesize 12 oligonucleotides in less than 2 hours. The single-column output is 10 nmol to 100 μmol. It provides an overall solution including the instrument, raw materials and synthesis technology, helping customers successfully and smoothly synthesize.

Product Features

1. Independent synthesis of 1 to 12 sequences; fully isolated pipework design, with separate lines for monomers and reagents, and no shared lines, thereby minimising the impact of impurity residues;

2. Supports simultaneous execution of multiple synthesis programmes to meet flexible synthesis requirements for different monomers;

3. Cycle time for standard bases does not exceed 6 minutes;

4. Capable of synthesising DNA, RNA and modified oligonucleotides;

5. Synthesis scale per channel: 100 nmol–3 μmol or 3–300 μmol;

6. Coupling efficiency ≥99%;

7. Accommodates 10–28 base vials and 7–9 auxiliary reagent vials (expandable);

8. Automatic power-off protection with automatic shutdown upon completion of synthesis;

9. Functions to pause, cancel or modify synthesis programmes mid-process;

10. Inert gas chamber to ensure coupling efficiency;

11. Can be fitted with DMT detection, liquid level monitoring and temperature/humidity monitoring.

Application

Gene synthesis
PCR/RT-PCR
siRNA/RNAi
DNA/RNA
Immunology and biochemistry
High-throughput screening
Biosynthesis of natural products
Gene construction
Reverse transcription PCR
Hybridisation and single-nucleotide polymorphism (SNP) analysis
Genetic diagnosis and therapeutic research

TECHNICAL PARAMETERS

Power Supply	220 V	Operating Temperature	25 ± 3 °C
Power	1500 W	Relative Humidity	Argon protection, works properly under specified humidity (≤ 30%RH)
Weight	34 kg	Overall Dimension	850 × 550 × 1050 mm
Synthesis Scale	10 nmol ~ 100 μmol (25 nmol-3 μmol each channel)	Synthesis Channels	1-12 independent channels
Reagent Ports	7-9 pcs	Single Cycle Time	≤6 min
Base Ports	10-24 pcs	Coupling Efficiency	Up to 99.5%
