FSC307 Benchtop Pre-filled Syringe Filling Machine
The VEC-FSC307 dual-head syringe filling machine is capable of high-precision filling (±0.1 g) of 0.5–5 mL syringes, with an hourly output of up to 1,250 units.

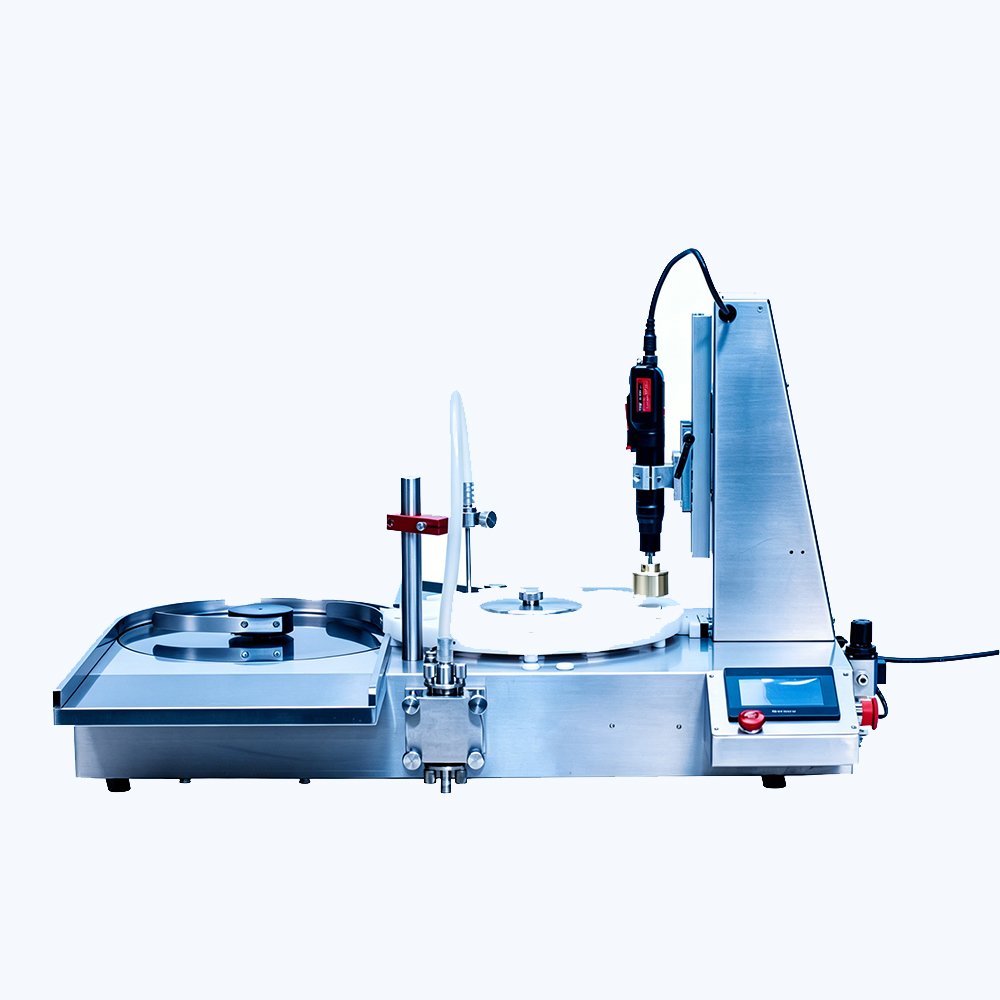

VEC-FCW109 Compact Benchtop Bottle Sorting Filling Corking Capping Machine
Product Introduction:
This benchtop single-head rotary filling and capping machine is designed for small-batch, multi-specification liquid, oil, and cream products (1–300 ml). It integrates unscrambling, filling, stoppering, and capping functions, offers customizable pump options, and allows for easy changeovers between different bottles, stoppers, and caps.
All-in-one Rotary Filling and Capping Machine for small-batch liquid, oil and cream products, integrating bottle unscrambling, filling, stoppering and capping in one compact unit.
Versatile filling pump options (peristaltic, gear, piston pump) for customizable liquid, oil and cream filling to match different material viscosities.
Multi-specification compatibility with quick changeover design, supporting different bottles, stoppers and caps by simply replacing spare parts.
High-precision single-head filling (1–300ml) with ±0.5% accuracy, ideal for small-scale production, lab trials and R&D batches.
Easy-to-operate benchtop design with intuitive controls, built for reliable, low-maintenance use in cosmetic, pharmaceutical and chemical applications.
Cosmetics & Personal Care：Filling and capping serums, essential oils, creams, lotions, and other small-dose cosmetic products.
Pharmaceutical & Healthcare Products：Packaging liquid supplements, tinctures, oral solutions, and lab reagents.
Food & Beverage：Small-batch filling of syrups, sauces, flavorings, and specialty beverages.
Chemical & Laboratory Use：Dispensing and capping reagents, solvents, and other industrial liquids/creams.
R&D & Pilot Production：Ideal for lab trials, small-scale manufacturing, and new product testing due to its compact size and quick changeover design.
TECHNICAL PARAMETERS
Model | VEC-FCW109 |
Filling Volume | 1–300 ml |
Filling Accuracy | <0.5% (at 100 ml dosage) |
Production Capacity | Approx. 20–30 BPM |
Filling Type | Peristaltic / Gear / Piston pump |
Filling Material | Liquid / Oil / Cream |
Power Supply | 1P 220V 50–60Hz, 1 kW |
Compressed Air Requirement | 3–5 kg/cm², 0.15 m³/min |
Dimension (L×W×H) | 918 × 850 × 700 mm |
Net Weight | 40 kg |
INQUIRE IMMEDIATELY
RELATED PRODUCTS
VEC-FCW109 Compact Benchtop Bottle Sorting Filling Corking Capping Machine
This benchtop single-head rotary filling and capping machine is designed for small-batch, multi-specification liquid, oil, and cream products (1–300 ml). It integrates unscrambling, filling, stoppering, and capping functions, offers customizable pump options, and allows for easy changeovers between different bottles, stoppers, and caps.
FD200 Benchtop Filling Machine
The VEC-FD200 benchtop liquid and ointment filling machine (2/4/6 heads) supports 1–10,000g filling with ±0.5% accuracy, driven by stepper or servo motors, and is designed for efficient small-batch to medium-batch production of liquids and pastes.
FD10 Benchtop Filling Machine
The FD200 benchtop liquid filling machine, a high-precision servo-driven digital filler with an adjustable range of 1 mL to 10 L, offers ±0.1% accuracy, anti-foam control, a waterproof LCD display, and easy disassembly for versatile use in laboratory, pilot, and small-batch production of various liquids.
