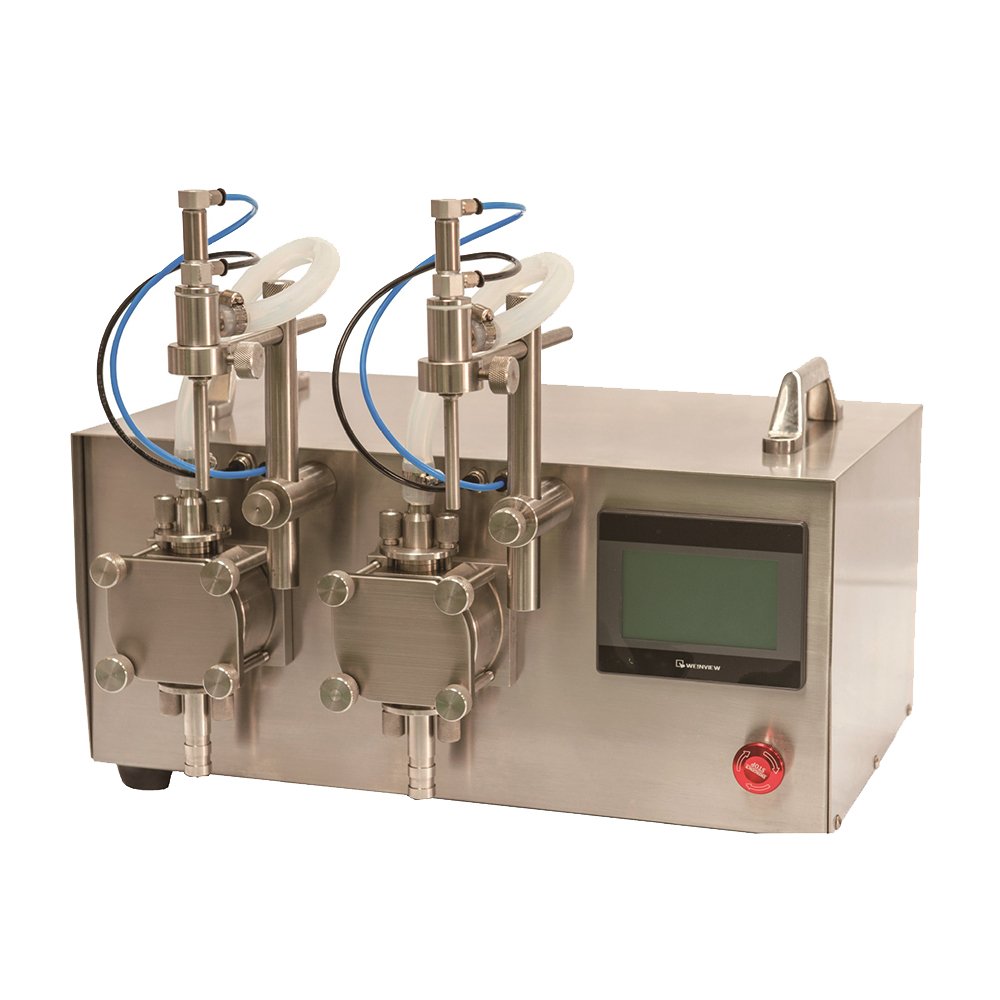

FD200 Benchtop Filling Machine

Product Introduction:

The VEC-FD200 benchtop liquid and ointment filling machine (2/4/6 heads) supports 1–10,000g filling with ±0.5% accuracy, driven by stepper or servo motors, and is designed for efficient small-batch to medium-batch production of liquids and pastes.

Flexible Configuration: Available in 2-, 4-, and 6-head models, with optional stepper or servo motor drives to meet various production speed requirements (up to 75 bottles per minute for 100-ml specifications).

High Precision and Wide Range: Filling volumes can be adjusted between 1 and 10,000 grams with an accuracy of up to ±0.5% (based on 10-ml test values), making it suitable for a wide range of liquid and ointment products.

Compact and Practical Design: With a small footprint and simple installation and operation, it is ideal for small- to medium-scale production environments.

Multi-Material Compatibility: Specifically designed for liquids and high-viscosity ointments, it supports a wide range of filling applications.

Scalable Design: Can be integrated with conveyor belts to form an automated filling production line, enabling continuous production.

Laboratory and R&D Settings: Used for formulation testing, sample filling, and small-batch pilot production, meeting the diverse, small-volume filling needs of the R&D phase.

Pharmaceutical and Biotech Industries: Suitable for filling clean liquids such as reagents, solutions, and pharmaceutical solutions, supporting sanitary-grade operations and easy-to-clean maintenance.

Fine Chemicals Industry: Suitable for pilot-scale and small-batch production filling of various chemical liquids, including solvents, reagents, and additives.

Cosmetics and Personal Care Industry: Capable of filling products such as serums, lotions, essential oils, and cleansing solutions; anti-foaming design accommodates materials prone to foaming.

Food and Beverage Industry: Suitable for the precise filling of liquids such as sauces, cooking oils, beverages, and condiments, meeting hygiene and accuracy requirements.

Small-Scale Production and Startups: Flexible for standalone use or integration with conveyor belts to form a simple production line, meeting small-scale mass production needs.

TECHNICAL PARAMETERS

Model	VEC-FD200-2	VEC-FD200-4	VEC-FD200-6
Filling station	2	4	6
Volume	1–10,000 g (10 Kg)
Accuracy	0.5% (Actual measurement at 10 ml)
Capacity (Speed)	100 ml:40 BPM 300 ml:30 BPM 1000 ml:18 BPM	100 ml:60 BPM 300 ml:45 BPM 1000 ml:26 BPM	100 ml:75 BPM 300 ml:55 BPM 1000 ml:32 BPM
Driving mode	Stepper or Servo motor
Filling Material	Liquid & Ointment
Supply Power	220V 50–60Hz, 1.5 kW	220V 50–60Hz, 3.0 kW	220V 50–60Hz, 4.5 kW
Dimension (L×W×H)	460 × 530 × 300 mm	630 × 530 × 330 mm	880 × 530 × 330 mm
Net Weight	35 kg	48 kg	60 kg
Remarks	Can be used with a conveyor belt
