Customizable 1–20 L total volume bioreactor
Single-walled glass vessel
Temperature control： electric blankets or stainless steel jackets at the base
Agitation: Mechanical stirring or magnetic stirring is available, with support for interchangeable stirring paddles of various types.
Feed: 4 peristaltic pumps, expandable configuration
Intake：single-air-intake system, with optional multi-gas-intake system. Supports upgrade to automatic air-intake system.
Unified control: temperature, agitation, pH, DO, antifoam, feeding
10‑inch intuitive touchscreen for easy operation
All‑in‑one controller for reliable process control

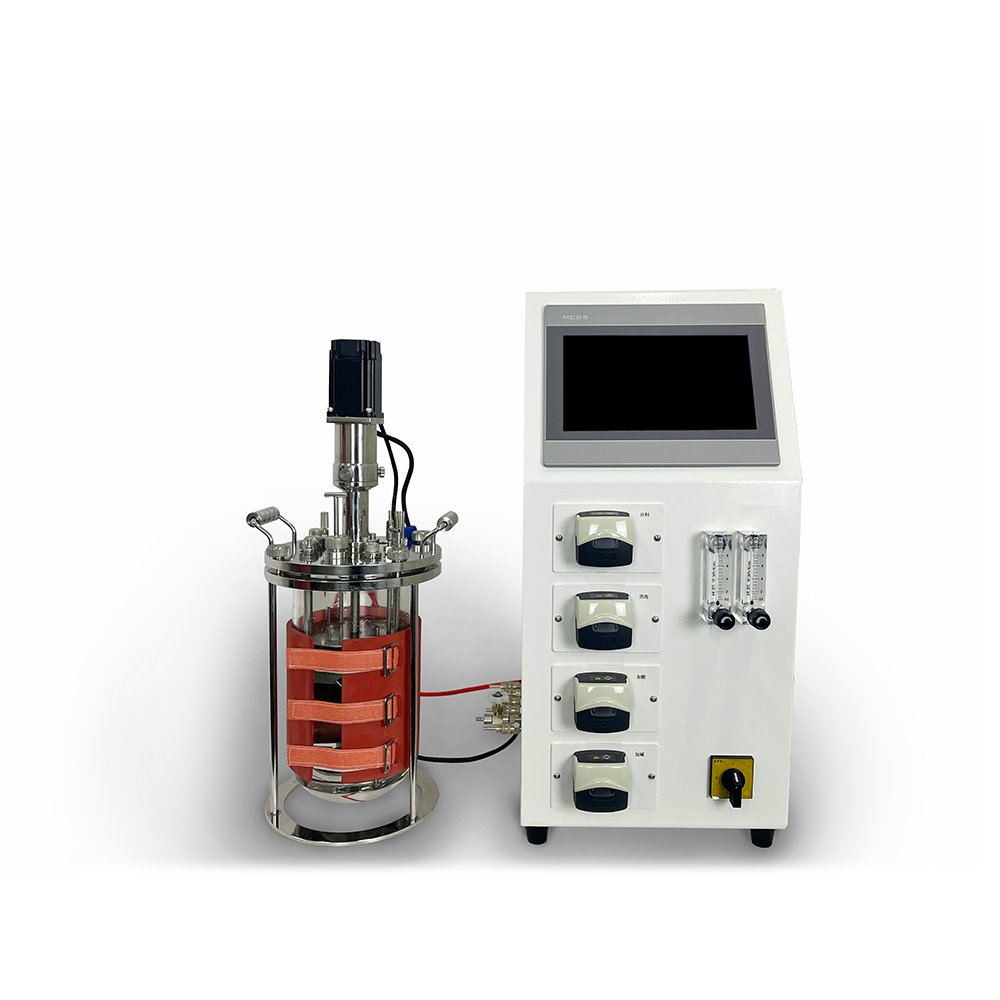

VEC-JG entry-level benchtop glass microbial fermenter customized for laboratory bacterial culture, core lab equipment for microbiology research, biopharmaceutical experiments, university teaching and small-scale bacterial batch fermentation trials
Compact benchtop bacterial fermentor with complete standard configurations & user-friendly operation, perfectly matching daily cultivation demands of research labs, academic institutions and small biotech R&D enterprises, top pick for entry-level microbial fermentation projects
1L–20L customizable total volume laboratory glass fermenter, flexible size matching diverse experiment scales and bacterial culture requirements, covering micro sample testing to medium-volume pilot fermentation
High-transparency single-wall glass fermentation vessel for real-time visual monitoring of bacterial growth & fermentation process; simple disassembly, cleaning and autoclaving to stably maintain sterile culture conditions for microbial fermentation
Microbial strain screening & optimization: For bacteria, yeast, and fungi to identify high-yield strains.
Biopharmaceutical R&D: Production of recombinant proteins, antibodies, vaccines, and therapeutic enzymes.
Bioprocess parameter optimization: Fine-tuning pH, temperature, DO, and agitation for scale-up to industrial production.
Biochemical & enzyme production: For small-batch synthesis of enzymes, organic acids, and biofuels.
Academic & contract research: Supporting university labs and CROs in biotech and life science studies.
Quality control & validation: Validating fermentation processes and ensuring compliance with regulatory standards.
The tank body, made of high-borosilicate glass, paired with a premium stainless steel lid, offers excellent biocompatibility for cell and microbial fermentation. The glass material provides stable chemical performance, high-temperature resistance, and corrosion resistance, preventing any reaction with culture media.
The control cabinet for the multi-stage fermenter features touchscreen control and can independently control multiple tanks.
Vessel | Single-wall or double-wall jacketed glass vessel (optional) Material:High-quality borosilicate glass Total volume: 1~20 L (customizable) Working Load Rate:30%~70% |
Agitation | Magnetic stirring or mechanical stirring (optional) Speed:0-2000rpm Blades:all alternative impeller styles support customization |
Temp. | Temperature control range: Cooling water +5°C to 65°C Temperature sensor: PT100 platinum electrode |
Feed | Standard 4 pumps; fixed speed or variable speed optional |
Gas | Standard: single air intake Optional: multiple independent gas intakes Standard: manual rotameter Optional: automatic mass flow controller (MFC) |
Control System | Temperature, agitation speed, pH, DO, antifoam, and feeding control |
Sterilization | Autoclaveable |
Expandable | ORP electrode, biomass sensor, precision weighing balance, off-gas analyzer (global & domestic brand options available) |
A: Constructed from tempered high-borosilicate glass. Fully transparent for real-time observation of fermentation; resistant to acids and alkalis, with no leaching of metal ions, making it safe for bacteria, yeast, and cell cultures.
A: The smooth, dead-corner-free glass interior features a quick-disassembly design. Removable pipelines minimize medium residue, enabling fast and effortless upkeep.
A:Yes, we will do our best to meet your customization needs.
A: Glass fermenters are suitable for laboratory R&D, strain screening, and visual trial runs. Stainless steel fermenters are suitable for large-scale industrial production. The two can work together to facilitate scale-up from the laboratory to production scale.
A:Depending on the configuration, it takes about 45 days.
VEC-CGC is a high-performance benchtop bioreactor designed for laboratory cell culture, supporting sophisticated configuration setup. It features a double-walled glass vessel, user-friendly operation and reliable stability.
VEC‑ParaMini is a fully integrated high‑throughput system. A single PC operates multiple fermenters simultaneously, ideal for efficient strain screening and process optimization
The online biochemistry analyzer BODS is an instrument specifically designed for fully automated online sampling, processing, analysis and sample retention within bioreactors.
The Multi-Biochemical Parameters Analyzer (MBP) is an instrument designed for the automated pretreatment and analysis of biochemical samples.
The vertical sterilizer is a safe, reliable and automatically controlled sterilization equipment, whichconsists of an evaporator, a microcomputer control system, multiple safety protection devices and othercomponents.
