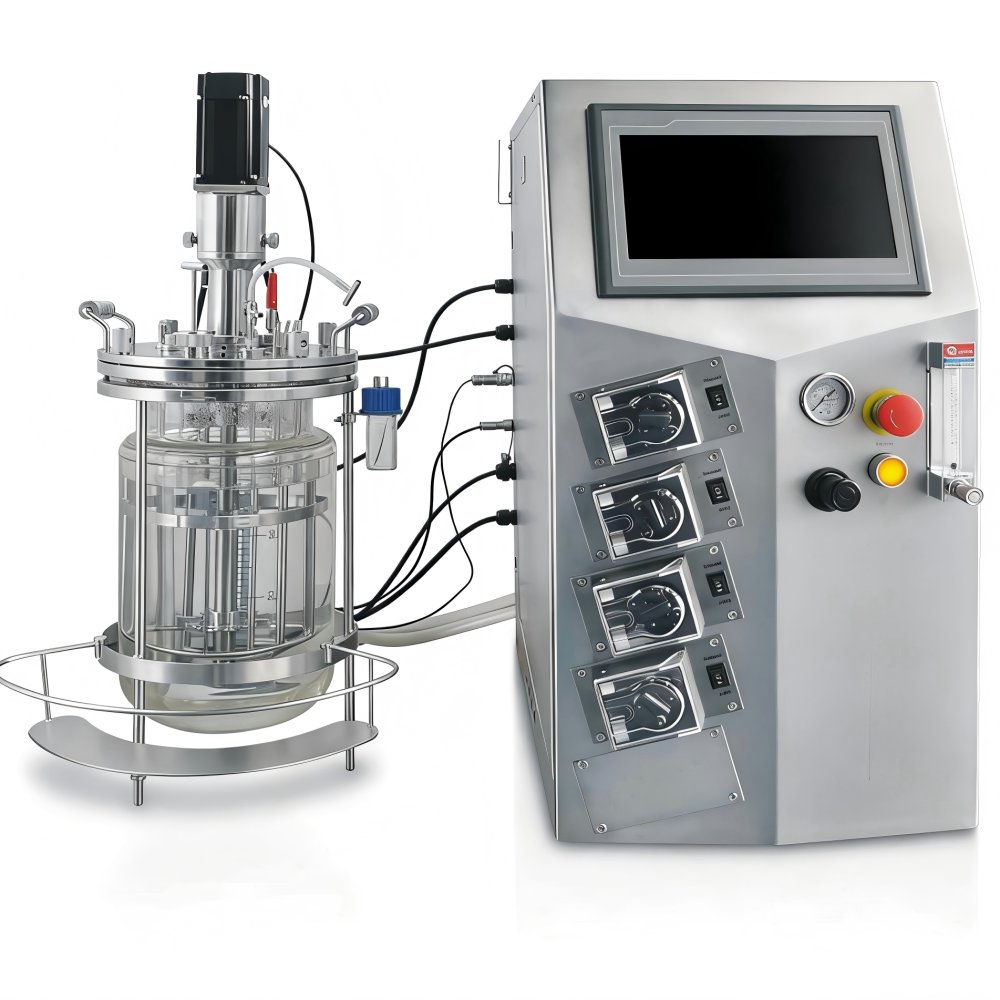

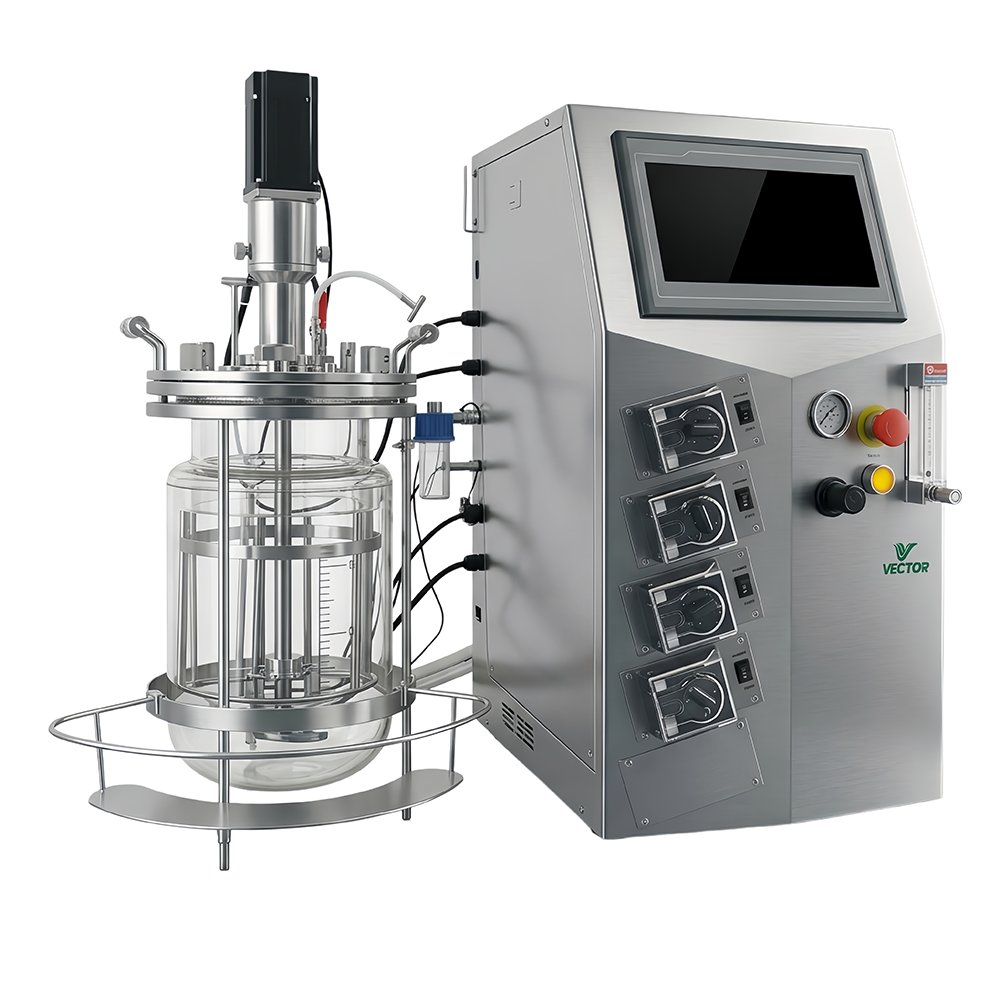

Benchtop Mammalian Cell Bioreactor for Suspension & Adherent Culture

Benchtop Mammalian Cell Bioreactor

Customizable 1–20 L total volume bioreactor

Double‑jacketed glass vessel for stable temperature control

Temperature control： electric blankets or stainless steel jackets at the base

Agitation: High‑sealing magnetic stirring with interchangeable impellers

Feed: 4 peristaltic pumps, expandable configuration

Intake： Four independent gas channels: Air, O₂, CO₂, N₂ .Supports upgrade to automatic air-intake system.

Unified control: temperature, agitation, pH, DO, antifoam, feeding

10‑inch intuitive touchscreen for easy operation

All‑in‑one controller for reliable process control

High-performance benchtop glass cell culture bioreactor customized for precision-sensitive lab-scale cell cultivation, widely used in university life science research, biotech R&D, CRO & CDMO projects and small-batch biologic manufacturing
Flexible expandable configuration meets diverse cell culture and bioprocess optimization demands, premium lab equipment for mammalian cell culture workflow development
1L–20L customizable total volume bioreactor vessel, flexible size matching from micro small-scale cell trials to mid-volume pilot bioprocessing, convenient for bioprocess scale-up study & parameter optimization
Premium double-layer jacketed glass tank delivers consistent even temperature control to sustain high viability of sensitive mammalian cells; full transparent design allows real-time observation of cell growth status
Hermetically sealed magnetic agitation system with interchangeable mixing impellers provides low-shear gentle homogenization, safeguards fragile cells and evenly distributes nutrients, gas and metabolic products
Four independent gas pipelines (Air, O₂, CO₂, N₂) for precise culture atmosphere adjustment, accurately control dissolved oxygen (DO) and pH to fit all kinds of cell culture requirements

Vessel	Double-wall jacketed glass vessel Material:High-quality borosilicate glass Total volume: 1~20 L (customizable) Working Load Rate:30%~70%
Agitation	Magnetic stirring Speed:0-1000rpm Blades:all alternative impeller styles support customization
Temp.	Temperature control range: Cooling water +5°C to 65°C Temperature sensor: PT100 platinum electrode
Feed	Standard 4 pumps; fixed speed or variable speed optional
Gas	Standard: single gas intake Optional: multiple independent gas intakes Standard: manual rotameter Optional: automatic mass flow controller (MFC)
Control System	Temperature, agitation speed, pH, DO, antifoam, and feeding control
Sterilization	Autoclaveable
Expandable	ORP electrode, biomass sensor, precision weighing balance, off-gas analyzer (global & domestic brand options available)

1.What is the key advantage of a double-jacketed glass tank for cell bioreactors?

A: Circulating water flows through the interlayer to provide uniform, stable temperature control, eliminating local hot and cold spots and protecting sensitive mammalian cells.
2.Does the double-jacketed design affect the visibility of cell cultures?

A:No. High-transparency borosilicate glass maintains full visual access to observe cell growth, bubbles, and culture status in real time.
3.Can the double-jacketed glass vessel withstand thermal shock?

A: Thickened tempered borosilicate withstands frequent heating and cooling cycles. The interlayer buffer reduces the risk of thermal shock to the inner culture chamber.
4.Is cleaning and sterilization of the double-jacketed glass tank complicated?

A: The smooth inner tank has no dead corners and supports full autoclaving. Only the inner chamber comes into contact with the culture medium, allowing for easy disassembly and cleaning.
5.How long is the delivery time?

A:Depending on the configuration, it takes about 45 days.
