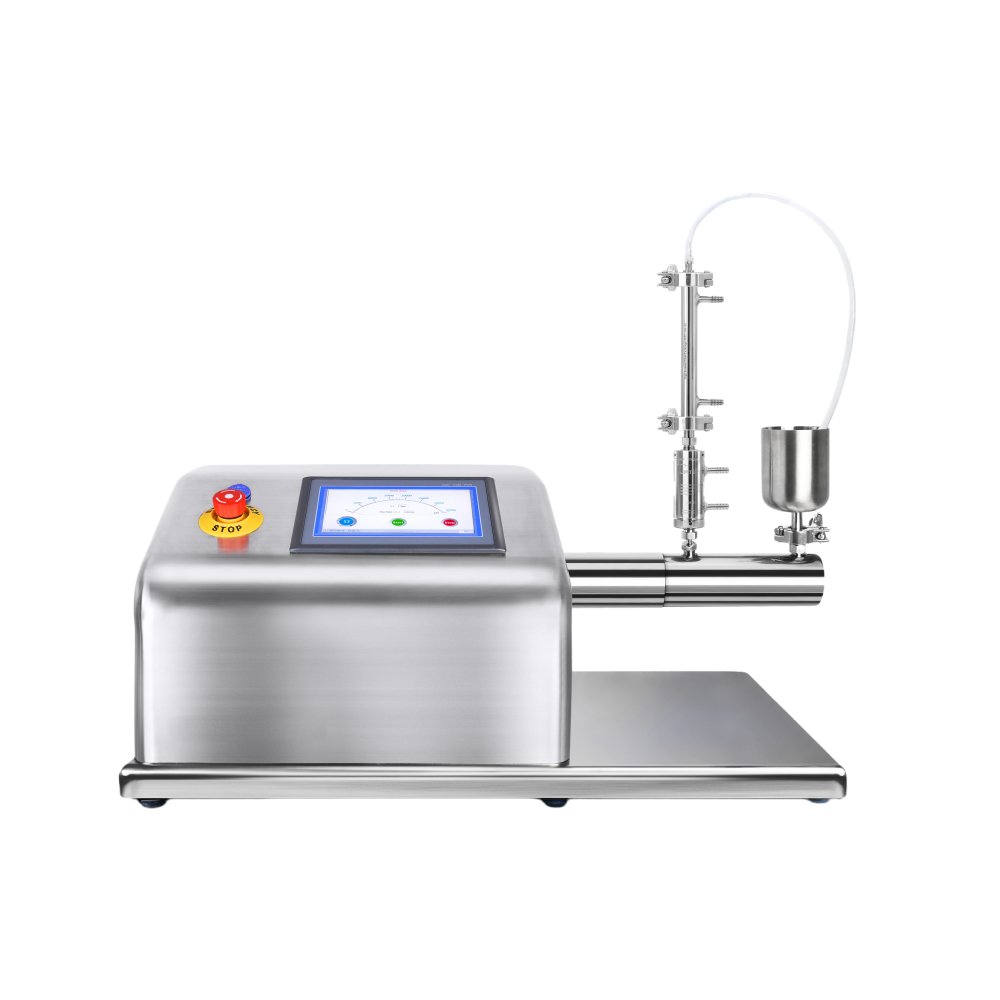

Lab High Pressure Microfluidizer Homogenizer

VEC-MH Series is lab type high pressure microfluidizer homogenizer features

1. The high-pressure microfluidization homogeniser enables precise control of particle size at the nanometre level and offers exceptional reproducibility.

Utilizing diamond interaction chamber technology, this equipment enables stable submicron/nanoscale homogenization, delivering a narrow particle size distribution and excellent batch-to-batch consistency. This meets the stringent reproducibility requirements of laboratory R&D and provides reliable data for seamless process scale-up.

2. Ultra-high pressure up to 45,000 psi, suitable for diverse laboratory applications

With a maximum operating pressure of 45,000 psi (≈310 MPa), it meets a wide range of experimental needs—from nanomedicine preparation and cosmetic emulsion formulation development to cell lysis and rare earth nanoparticle processing—covering the entire R&D process from basic research to process optimization.

3. Low Sample Volume Requirements, Minimizing Material Waste

Its optimized flow path design allows for a minimum sample volume as low as tens of milliliters, significantly reducing the consumption of valuable experimental materials. This is ideal for small-scale trials in new drug development, high-end cosmetic formulations, and other R&D scenarios.

4. Intelligent temperature control and real-time cooling to protect heat-sensitive materials

The built-in heat exchanger, constructed from sanitary-grade materials, and the real-time temperature control system maintain precise process temperatures. This effectively prevents thermal degradation of biopharmaceuticals, active ingredients, and other heat-sensitive samples, thereby preserving their activity and stability.

5. PLC-Controlled Smart Touchscreen and Plug-and-Play Design for Easy Operation

Equipped with an intuitive touchscreen interface that supports parameter configuration and process monitoring, the unit is powered by a standard power supply and requires no complex installation. This makes it ideal for flexible laboratory environments, allowing even novices to operate the equipment with zero learning curve.

6. Sanitary Design and Global Compliance for Scalability

The equipment is constructed from 316L stainless steel and other sanitary-grade materials, meeting GMP standards. Processes developed in the laboratory can be directly and linearly scaled up to pilot and large-scale production, ensuring a seamless transition from R&D to manufacturing.

· Pharmaceutical emulsions & nano-drug processing

· Nanoparticle & liposome preparation

· Cosmetic homogenization

· Graphene & nanomaterial dispersion

· Microbial cell disruption (E. coli, yeast, algae)

VEC-MH Lab Type High Pressure Microfluidizer Homogenizer Technical parameter

·
