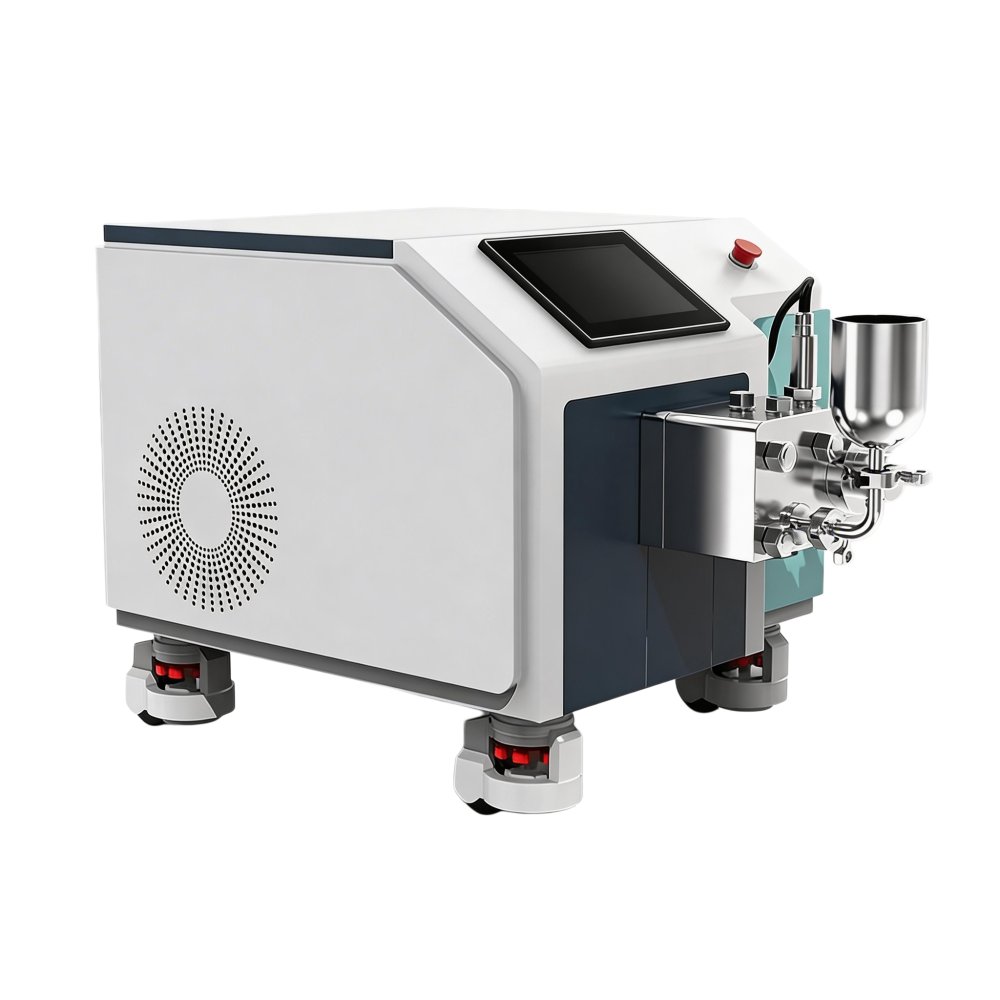

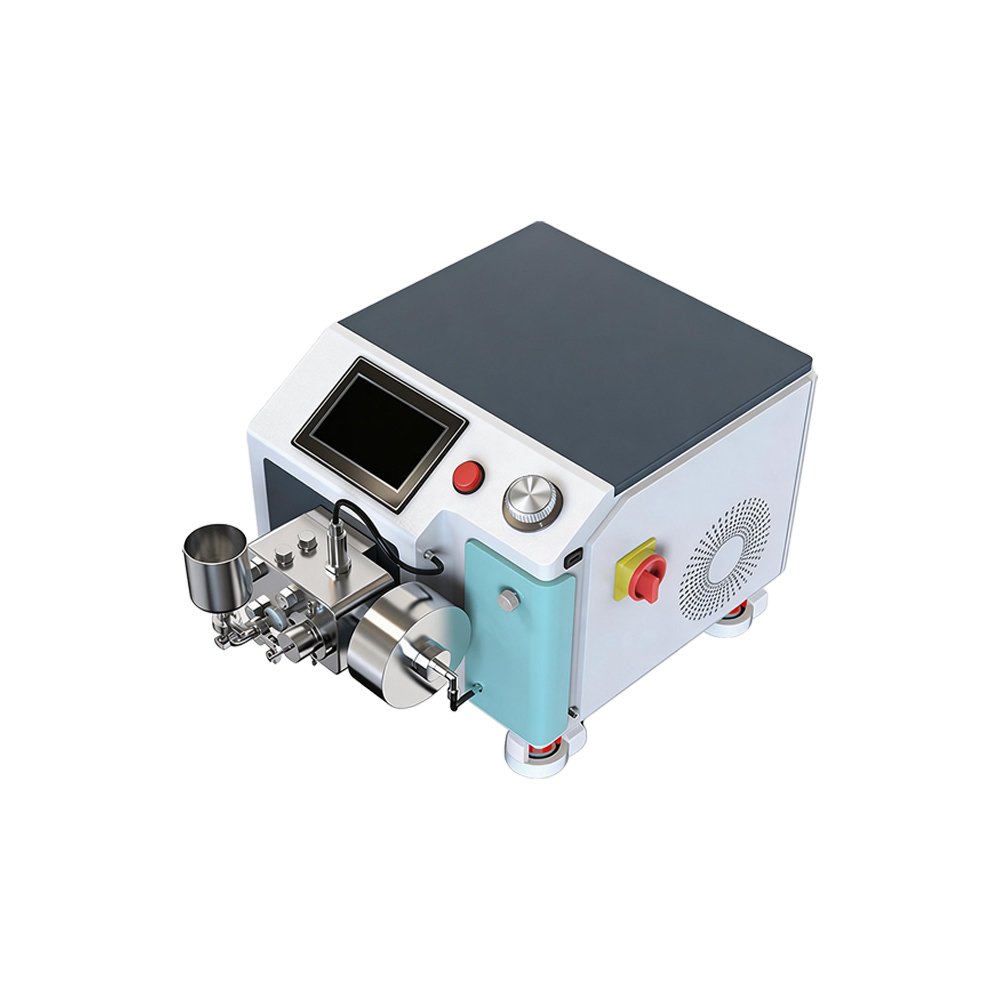

VECTOR Laboratory type high pressure homogenizer is ideal for disrupting bacterial cells (including E. coli), as well as for mixing and emulsifying pharmaceutical emulsions and dispersing nanoparticles. They are widely used in biotechnology research and development, microbial fermentation, cell lysis and the processing of nanomaterials.
VECTOR Laboratory type high pressure homogenizer's all components in contact with the homogenised product are manufactured from 316L or higher-grade sanitary-grade stainless steel to ensure excellent hygiene performance and corrosion resistance.
- High-performance zirconia ceramic plunger with outstanding wear resistance, corrosion resistance and long service life.
- 0–2000 bar sanitary pressure sensor with high precision up to ±1 bar accuracy for stable and reliable pressure detection.
- Sanitary tri-clamp piping with 3D design ensures complete drainability and easy cleaning.
- 7-inch touch screen with intelligent PLC control system and real-time pressure curve display.
- Comprehensive safety system including overpressure protection, emergency stop, alarm and safety interlock for secure operation.
VECTOR Laboratory type high pressure homogenizer applications:
· Microbial cell disruption (E. coli, yeast, algae)
· Pharmaceutical emulsions & nano-drug processing
· Nanoparticle & liposome preparation
· Graphene & nanomaterial dispersion
· Food, beverage & cosmetic homogenization
The one-stage homogenisation unit is configured with an internal heat exchanger to rapidly dissipate the heat generated by high pressure, whilst the two-stage unit is fitted with an external heat exchanger.

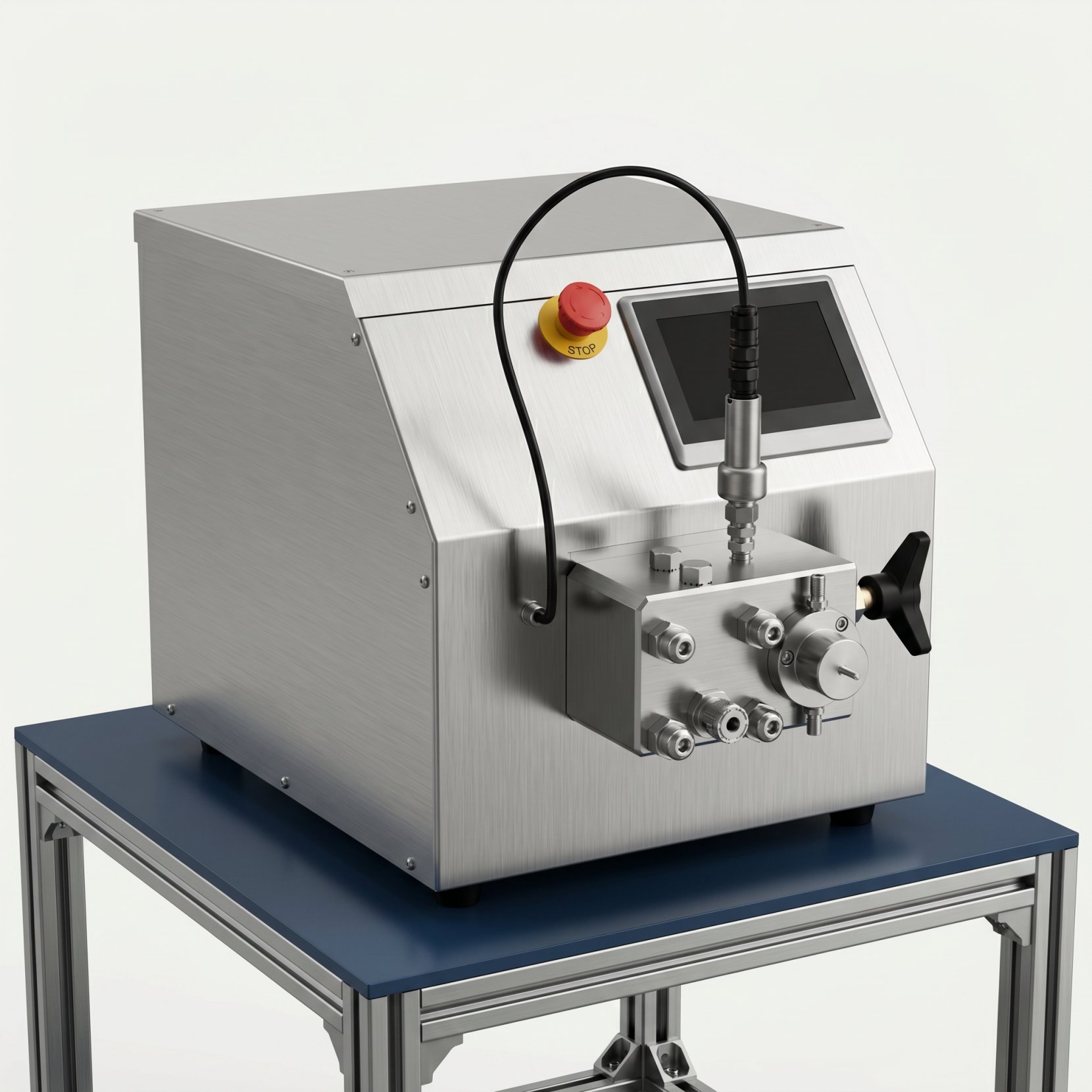

The standard configuration features a rotary handle for manual pressurisation, with automatic pressurisation available as an option. The homogenisation valve assembly is made from wear-resistant diamond material and has a service life of approximately one year under a high pressure of 1,800 bar. Actual service life is subject to the properties of the material and the operating pressure.
The VEC-Classic series is equipped with a 7-inch touchscreen; the main interface displays the system pressure and exhaust temperature, and allows users to set separate alarm thresholds for pressure and temperature. Should either threshold be reached, the unit will automatically shut down.
High-precision system pressure sensor, 0–2000 bar, accuracy ±1 bar.
All parts in contact with the material are made of 316L or higher grade stainless steel. Sealing materials include PE, PTFE, PU and PEEK; corrosion-resistant seals can also be customised to suit the specific material.
Standard Types Technical Parameter
Model | VEC-Nano | VEC-Classic15 | VEC-Classic30 |
Operating Pressure BAR | 1800 | 1750 | 1000 |
Flow Rate （L/H） | 8~10 | 12~15 | 25~30 |
Min. Processing Volume（mL） | 15 | 15 | 30 |
Flow at 0 Bar（L) | 10 | 15 | 30 |
Flow at Max. Pressure（L） | 8 | 12 | 25 |
Motor （KW） | 1.5 | 2.2 | 2.2 |
Plunger Qty.（pc） | 1 | 1 | 1 |
Plunger Material | Zirconia | Zirconia | Zirconia |
Inverter（KW） | 1.5 | 2.2 | 2.2 |
Classic Types Technical Parameters
Parameter | VEC-Classic1.5Pro | VEC-Classic15Auto |
Model | VEC-Classic1.5Pro | VEC-Classic15Auto |
Operating Pressure | 2000 bar | 1800 bar |
Flow Rate | 1.5 L/H | 12–15 L/H |
Min. Processing Volume | 3 mL | 25 mL |
Maximum Feed Particle Size | 100 μm | 100 μm |
Plunger Qty. (pc) | 1 | 1 |
Motor | 220V/50Hz, 2.2 kW | 220V/50Hz, 1.5 kW |
Pressurisation Method | Manual | Pneumatic |
Dimension (L×W×H, mm) | 510 × 800 × 470 | 510 × 800 × 470 |
Weight (kg) | 130 kg | 140 kg |

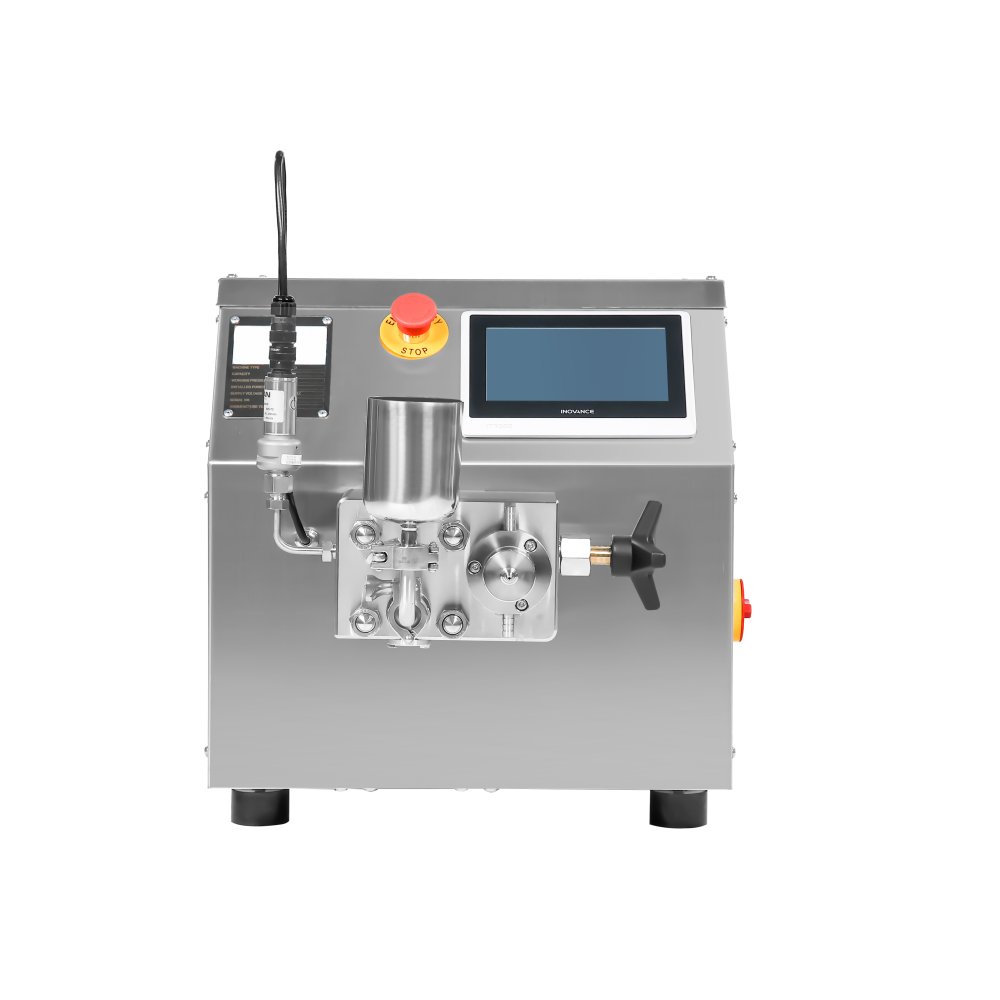

VECTOR laboratory type high pressure homogenizer is meticulously designed for experimental research and development. With minimum batch size of 10 ml, stable operating pressure of 1,800 bar, it is an ideal choice for all types of laboratories.
VEC-Classic pilot type high pressure homogenizer is suitable for the precise homogenisation of materials in laboratory, pilot-scale and small-scale production， such as in the biopharmaceutical, food processing, cosmetics and new materials sectors.
The VEC-Classic production type high pressure homogeniser supports automated production and offers customised explosion-proof and sterile solutions to meet the diverse requirements of industries .
