VEC-Tissuelyser-L
VEC-Tissuelyser-L is a high-throughput multi-sample tissue homogenizer. It is a rapid, highly efficient, multi-tube, and cross-contamination-free grinding device.

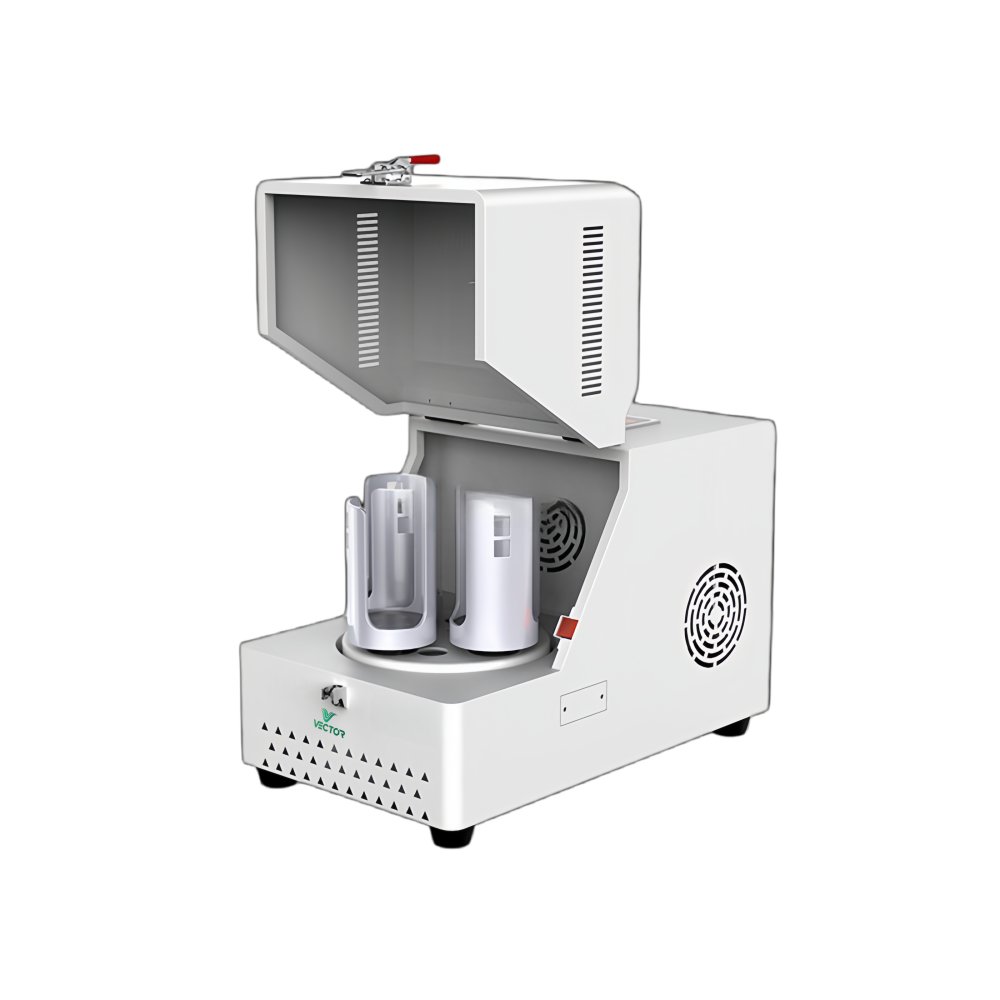

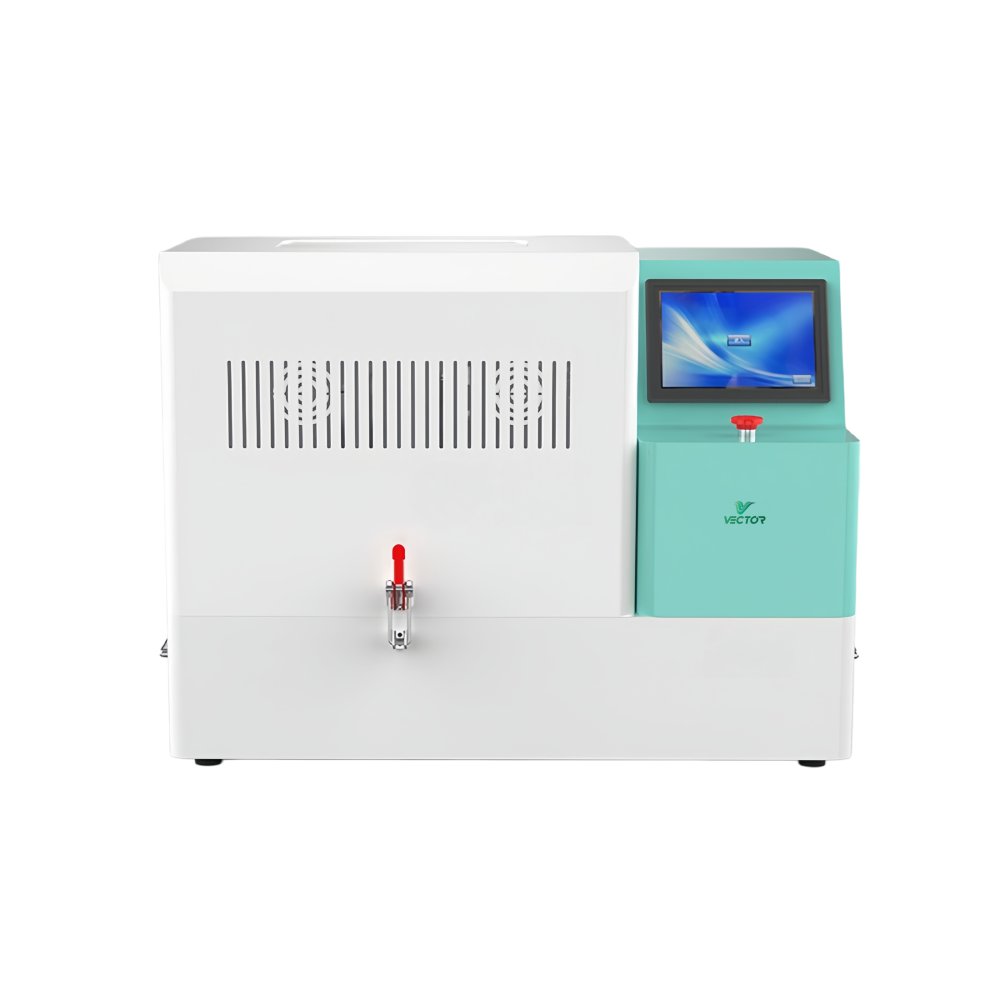

VEC-G Planetary Ball Mill
Product Introduction:
VEC-G planetary ball mill has the advantages of thorough grinding, simple operation, wide application range and no pollution. This series of instruments adopts an advanced planetary structure, which has increased the grinding efficiency by more than ten times. The four-tank filling method ensures that different materials do not interfere with each other. The gear transmission method ensures the consistency and repeatability of the experiments. At the same time, it has the characteristics of fast rotation speed, high energy, high efficiency and fine particle size. One experiment can simultaneously obtain four samples of different sizes and materials.
Features
· Suitable for long-term sample preparation and continuous operation.
· Adjustable speed, stable operation, capable of grinding the samples to a Yneness of micrometers
(dry grinding) and nanometers (wet grinding).
· Automatic reverse rotation to prevent sample accumulation.
· Multiple different material grinding jars available for selection.
· Advanced operation interface, simple and convenient.
Suitable for grinding (both dry and wet grinding) and mixing of soft, medium-hard, extremely hard, and brittle samples. It is widely used for grinding of medicinal materials, biological samples, inorganic substances, organic substances, ores and other samples.
TECHNICAL PARAMETERS
VEC-G Planetary Ball Mill Technical Parameters
Model | VEC-2G & VEC-2GL |
Min. Processing Volume | 50mL per jar (shared) |
Max. Processing Volume | 4×100 mL (VEC-2G/2GL) |
Main Disc Speed | 35-435 r/min (VEC-2G/2GL) |
Jar Rotation Speed | 70-870 r/min (VEC-2G/2GL) |
Operation Mode | Keypad (VEC-2G, VEC-4G, VEC-5G) |
Emergency Stop | No (VEC-2G) |
Grinding Chamber Light | LED blue light, auto-switch (VEC-2G/2GL/4G/4GL) |
Jar Volume Range | 50mL-100mL (VEC-2G/2GL) |
Grinding Jar Materials | Stainless steel (304/316), WC, Nylon (MC), PU PTFE, PP, PA, Zirconia (ZRO), Alumina (ALO), Agate (SIO) vacuum/PU/vacuum alumina/vacuum agate jars, etc. |
Grinding Media Diameter | 3-20 mm (shared) |
Grinding Media Mass | 100-400 g (VEC-2G/2GL) |
Grinding Media Materials | Stainless steel (304/316), WC, Agate (SIO), Zirconia (ZRO), Alumina (ALO), PTFE, PP, PA, PU, etc. (shared) |
Gear Ratio (Planet/Jar) | 1:2 (shared) |
Final Particle Size | <100 nm (shared) |
Grinding Mode | Dry/Wet grinding (shared) |
Cryogenic Cooling | Yes (optional add-on, shared) |
Inert Gas Protection | Yes (shared) |
Forward/Reverse Rotation | Yes (shared) |
Forward/Reverse Rotation | Yes (shared) |
