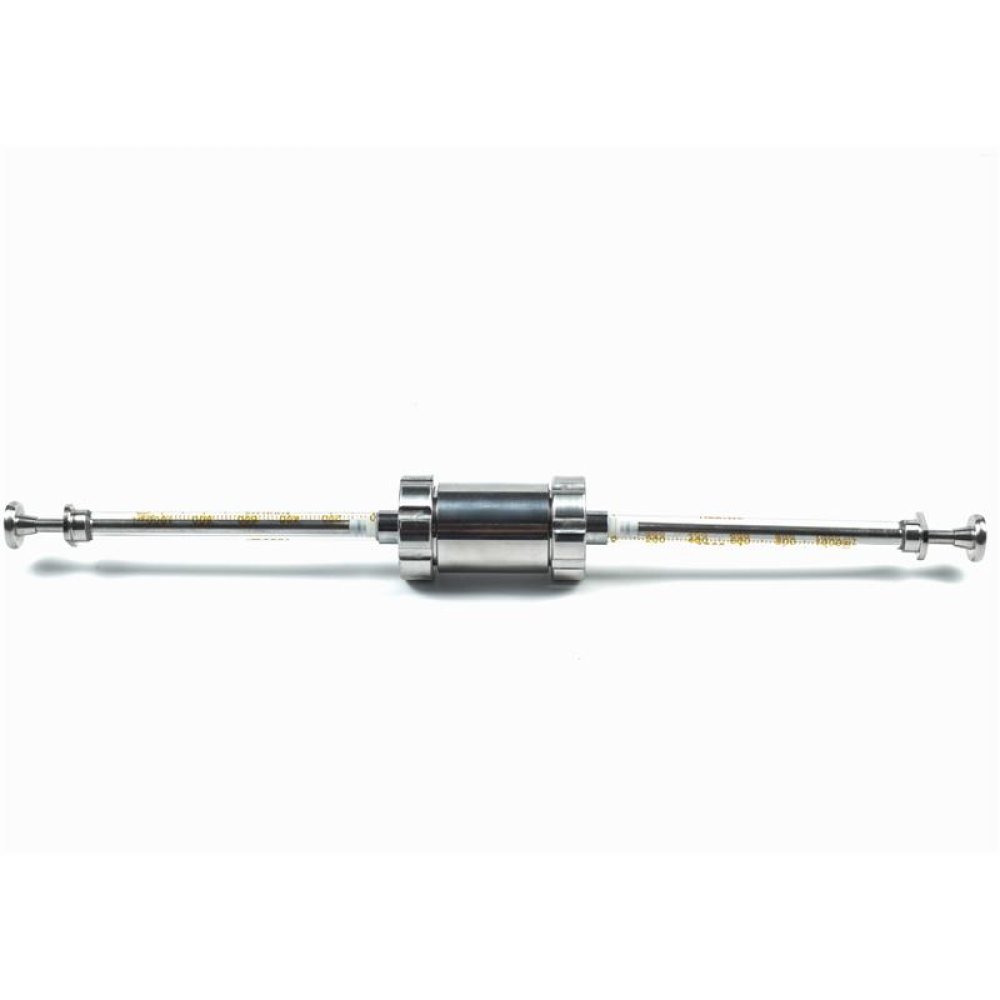

Manual Lipsome Extruder

Product Introduction:

The manual liposome extruder is a premium laboratory instrument engineered for the efficient preparation of uniform liposome nanoparticles. By leveraging sealed glass syringes and manual pressure to drive materials through precision membranes, this extruder delivers consistent, reproducible liposome formulations with controlled particle size, making it an essential tool for pharmaceutical R&D, nanomedicine development, and laboratory-scale liposome production.

(0) Reviews

Product Features

Equipped with a precision power drive system, this liposome extruder delivers stable and consistent extrusion pressure to force fluid samples through polycarbonate (PC) membranes and stainless steel microporous filter plates for uniform nanoscale particle size control.

Enables the production of samples with uniform particle size distribution at the nanometer scale.

The final particle size is adjustable and dependent on extrusion pressure and the selected PC membrane pore size.

Designed as a preferred device for liposome preparation in laboratories. Using sealed glass syringes, it applies manual driving force to push samples through the built-in membrane, generating highly uniform liposome nanoparticles.

Application

Preparation of liposomes and lipid nanoparticles (LNPs)

Development of liposomal drug delivery systems

Research on nanomedicine, gene delivery, and vaccine formulations

Particle size homogenization and nanosizing of lipid vesicles

Small-scale formulation trials in pharmaceutical R&D and laboratory studies

TECHNICAL PARAMETERS

Specification	Detail
Model	LE-1
Single Extrusion Volume	1 mL (Two Syringes, 1000 μL each)
Minimum Sample Processing Volume	0.1 mL
Residual Volume	0 mL
Membrane Diameter	19 mm
Membrane Pore Size Options	50 nm, 100 nm, 200 nm, 400 nm, 800 nm, 1000 nm, etc.
