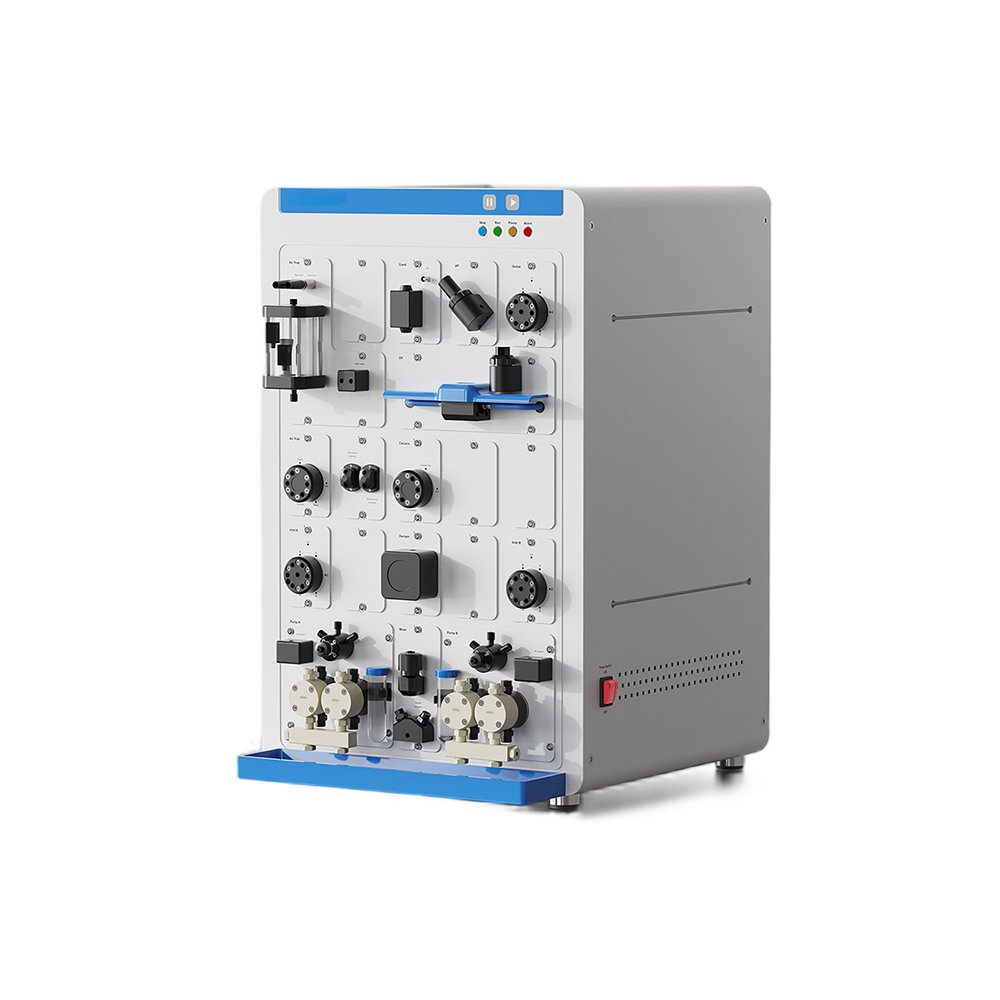

VecPilot 600 protein chromatography system is a benchtop fast protein liquid chromatography system（FPLC） engineered for pilot-scale bioprocessing. With fully flexible modular configuration, an ultra-wide operating flow rate range, and a 2 MPa pressure rating, it delivers reliable scalability for process development and small-scale production. Equipped with a premium imported UV detector featuring 4 adjustable wavelength bands (200–800 nm) as standard, the system supports all major chromatography techniques, making it the ideal solution for seamless lab-to-production scale-up.
VecPilot 600 protein chromatography system features
Modular design
The VecPilot600 features a fully modular design, allowing for flexible configuration to meet customers’ diverse process requirements, and supports chromatography columns with diameters ranging from 25 mm to 200 mm.
Easy operation
The system features a compact benchtop design, with all components in contact with the sample located at the front, ensuring ease of operation and compliance with hygiene standards.
High-flow piston pump
The system is equipped with a high-precision, high-flow piston pump, ensuring stable flow rates and precise gradient formation, covering a wide range of column specifications from laboratory-scale development to small-scale production.
High-precision detection system
The high-precision detection system monitors UV absorption at fixed or variable wavelengths, conductivity, pH and other key parameters in real time.
User friendly
The ChromX software offers an intuitive and user-friendly interface with a human-centred design, supporting fully automated control and automatic method editing to significantly enhance the efficiency of chromatographic workflows. The software integrates system control, method editing, data analysis and report generation functions, and features real-time monitoring, data logging and chromatogram analysis capabilities.
Laboratory-scale protein purification and process development
Separation and polishing of antibodies, enzymes, and recombinant proteins
Purification of nucleic acids, plasmids, mRNA, and viral vectors
Desalting, buffer exchange, and concentration of biological samples
Quality analysis and homogeneity testing of biomolecules
R&D and small-batch preparation of protein drugs, vaccines, and biological products
VecPilot 600 Protein Chromatography system Technical parameter
Component | Technical Parameters |
System Piston Pump (A/B Pump) | Flow rate range: 4-600ml/min (Dual pump stacked column mode: 1-1200ml/min) Qualification range: 3%-95% Pressure range: 0-2MPa (20bar, 290 psi) Viscosity: 0.7-10 cp |
DAD Detector | Imported DAD detector, 200-800nm variable four-wavelength Wavelength accuracy: ±1nm Wavelength repeatability: ±1 nmNoise: ±8×10⁻⁵ AU (@254nm, 1S) Fiber optic transmission, external flow cell, dual-beam design for high stability Standard flow cell: 3mm path, 70μl volume, max pressure 2MPa |
Conductivity Detector | Detection range: 0.1mS/cm – 999.9mS/cm |
Temperature Detector | Temperature range: 0 - 99°C; Temperature accuracy: ± 2°C in 2°C - 50°C |
pH Detector | Detection range: 1-14 (2-12; Accuracy: ±0.1) |
Inlet Valve | 6 inlets per single pump, 12 inlets for dual pumps, expandable to 22 inlets |
Outlet Valve | 4 outlets standard, expandable to 11 outlets |
Column Position Valve | Single column position, supports bypass, forward, reverse mode, pressure resistant 2MPa, all PEEK material |
Bubble Trap | Effectively removes air bubbles from the system, supports online, bypass, and emptying mode, pressure resistant 2MPa, PEEK |
Mixer | Magnetic induction technology, default 5mL, optional 12mL, PEEK |
Bubble Sensor | 2 units standard, ultrasonic induction |
Pressure Sensor | 3 imported titanium alloy pressure sensors standard: 1 after system pump, 1 pre-column, 1 post-column, detection range 0-2MPa |
Level Sensor | 2 units standard, detects high/low liquid level of bubble trap sensor, ultrasonic |
VecPilot 600 protein chromatography system is a benchtop chromatography system designed for pilot-scale applications. With its flexible configuration, it meets the requirements for process scale-up and commercial production across a range of chromatography techniques.
