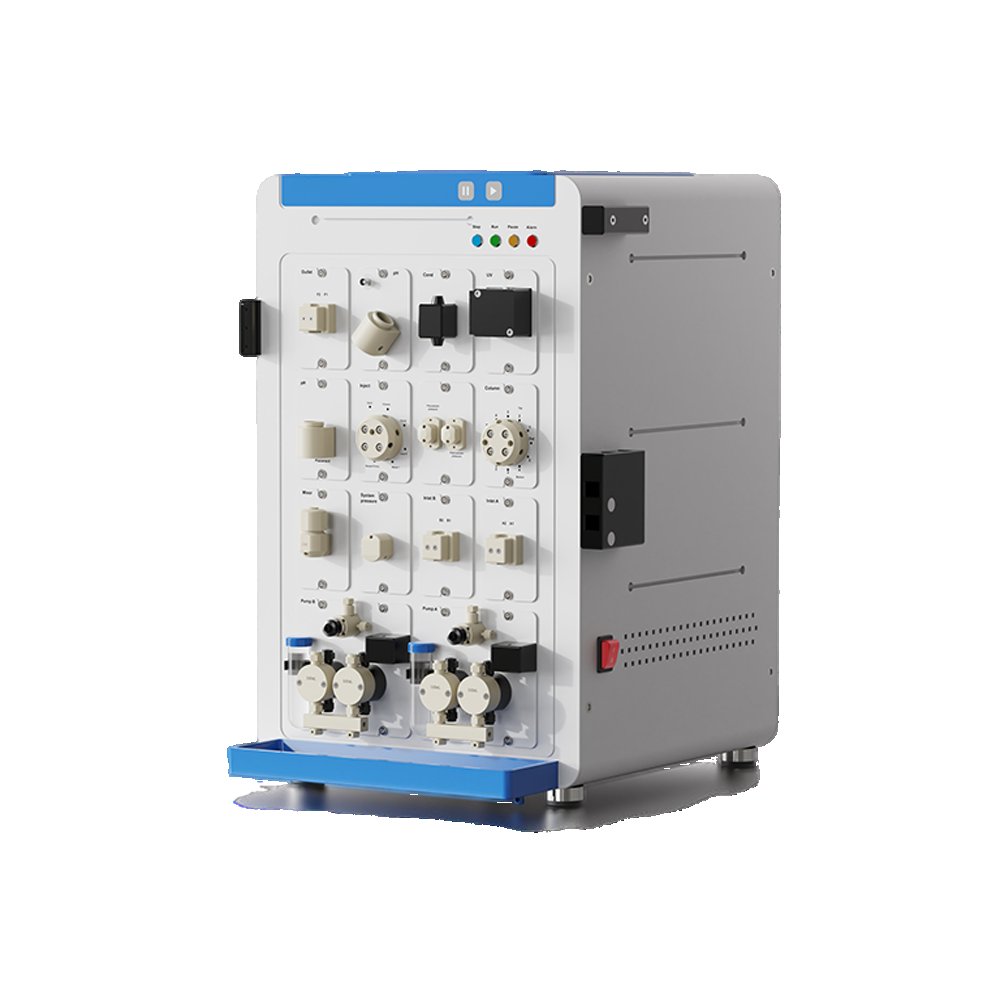

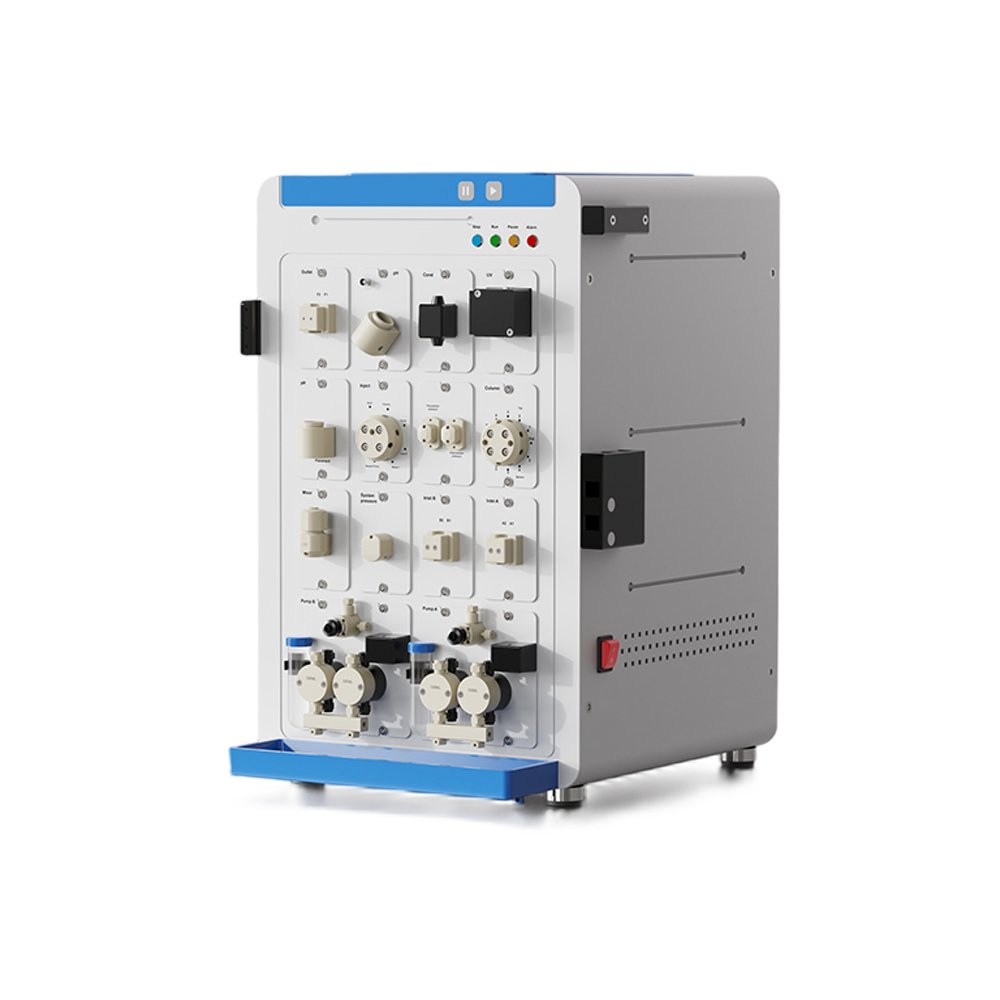

VecPure 25 Protein Chromatography System

Product Introduction:

VecPure 25 protein chromatography system is a fully modular, highly configurable fast protein liquid chromatography (FPLC) system that can be flexibly adapted to customer requirements. It is widely used for the purification of target substances ranging from microgram to gram scale, including proteins, peptides, nucleic acids, and polysaccharides.

Product Features

VecPure 25 protein chromatography system features

Fully Modular & Customizable Design

The FPLC system features a fully modular architecture that allows for flexible configuration tailored to specific customer process requirements. This adaptability enables the system to support a wide range of application scenarios and accommodate diverse purification workflows, from microgram to gram scale processing.

Premium High-Precision Components

Boasting industry-leading hardware as standard, the VecPure is equipped with a high-precision dual-piston pump and a comprehensive suite of low-dead-volume chromatography detectors. This premium configuration ensures exceptional flow accuracy, minimal sample loss, and reliable, reproducible separation results for proteins, peptides, nucleic acids, and polysaccharides.

Robust High-Pressure Tolerance

Constructed with high-pressure-rated pumps and valves, the system delivers robust overall pressure resistance. This makes it suitable for demanding high-performance chromatography applications, including ion exchange, gel filtration, and affinity purification, ensuring stable and efficient operation even under rigorous conditions.

Ultra-Wide Flow Rate Range

With an exceptionally wide flow rate range from 0.1 mL/min to 300 mL/min, the VecPure is fully compatible with all laboratory-scale chromatography columns. It seamlessly covers analytical-scale micro-purification to preparative-scale gram-scale production, eliminating the need for multiple instruments and optimizing lab efficiency.

Regulatory-Compliant Software Suite

Powered by the advanced ChromX chromatography software, the system provides intuitive control, comprehensive data management, and real-time monitoring. The software is fully compliant with FDA 21 CFR Part 11 regulations, ensuring data integrity, audit trail capabilities, and suitability for GMP-compliant biopharmaceutical R&D and manufacturing environments.

Application

Laboratory-scale protein purification and process development

Separation and polishing of antibodies, enzymes, and recombinant proteins

Purification of nucleic acids, plasmids, mRNA, and viral vectors

Desalting, buffer exchange, and concentration of biological samples

Quality analysis and homogeneity testing of biomolecules

R&D and small-batch preparation of protein drugs, vaccines, and biological products

TECHNICAL PARAMETERS

VecPure 25 Protein Chromatography System Technical parameter

Model	Vecpure 25	Vecpure 150
Standard Configuration
Dual Pump System	0.001-25mL/min	0.001-150mL/min
Pump System	Gradient types: Linear, Isocratic, Step gradient
Inlet Valves	A/B pumps each with 2 inlets, total 4 inlets,PEEK.
Column Valve	Standard single column valve, supports Bypass, Down-load, Up-load mode
Outlet Valves	2 standard outlets, PEEK
Injection Valve	Pressure resistant 20Mpa, supports sample loop, loading, injection mode
Conductivity Detector	Detection range: 0-999.999mS/concludes automatic temperature compensation function
Temperature Sensor	Reading range: 0-100°C Automatic temperature compensation for conductivity and pH
UV Detector (Dual Wavelength)	190-400nm, dual wavelengths adjustable simultaneously, UV Default: 2mm optical path
pH Detector	Detection range: pH 0-14Includes automatic temperature compensationEquipped with pH probe
Bubble Sensor	A/B pumps each with one unit Ultrasonic type, used for online monitoring and elimination of air bubbles in the column
Fraction Collector	Open collection type, supports 180×1.5mL, 120×15mL and 42×50mL centrifuge tube collection
Pressure Monitoring	Equipped with three titanium alloy pressure sensors System pressure, inlet pressure, column post pressure
pH Valve	Supports bypass, online, calibration mode
Buffer Inlet Valves	A/B pumps each with optional 8-channel inlet valves
Outlet Ports	Optional 12-channel large volume collection port
Optional Configuration
Column Valve	Single column valve, five-column valve
Pressure Monitoring	Sample pump pressure optional
Sample Pump	Flow rate options: 25, 100, 150mL/min
Sample Inlet Valves	Optional 2-channel or 8-channel sampe inlet valves
