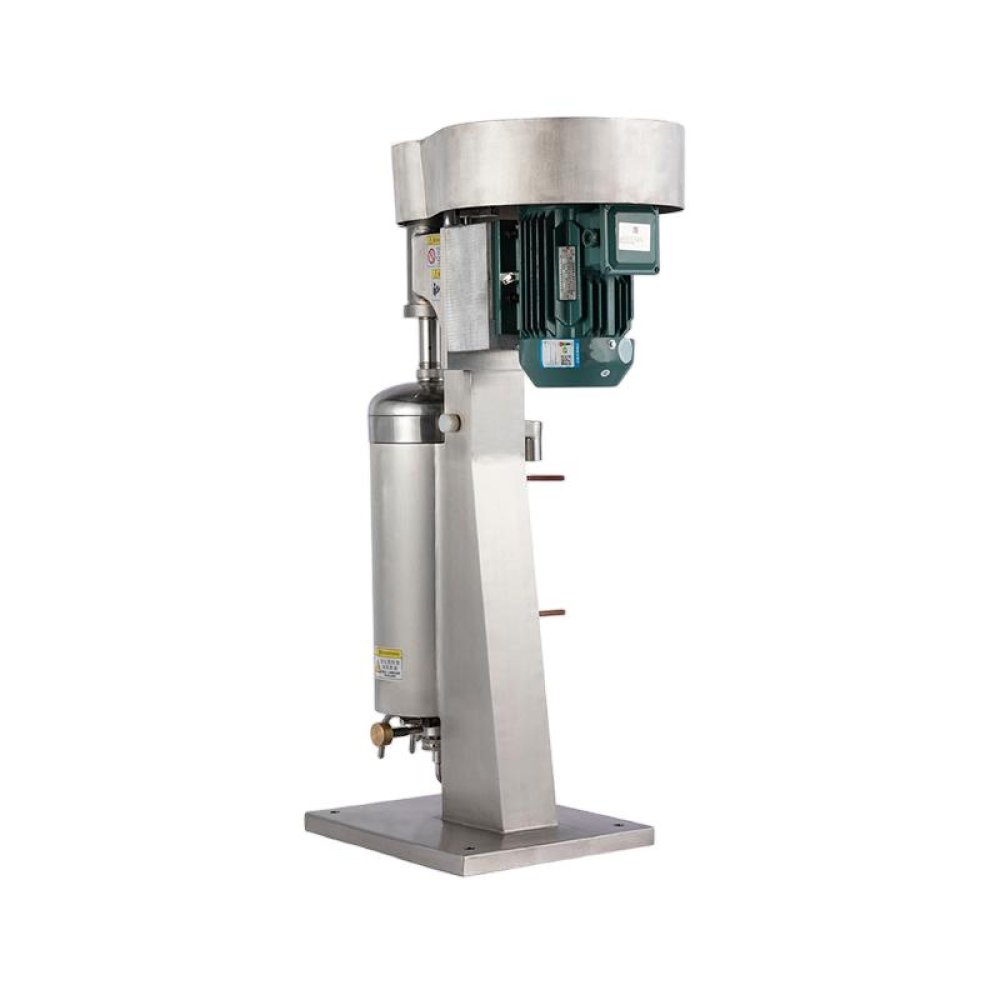

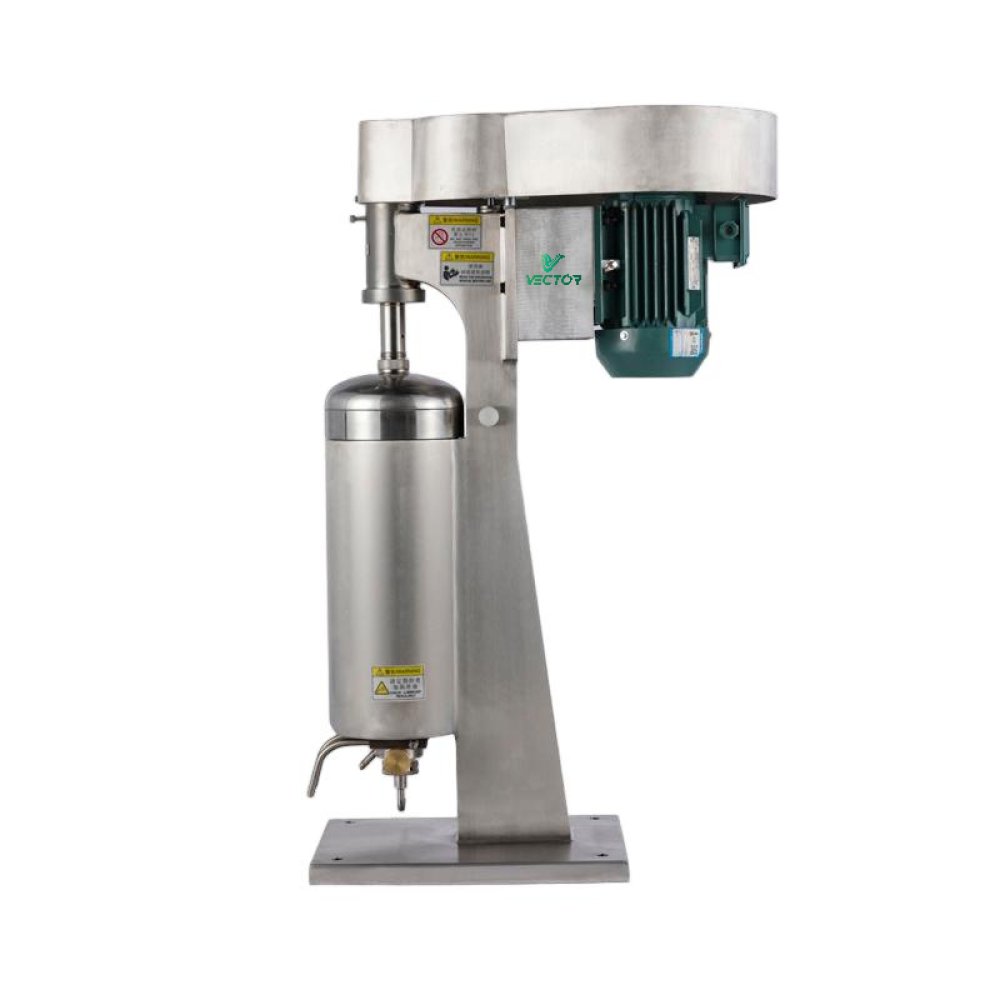

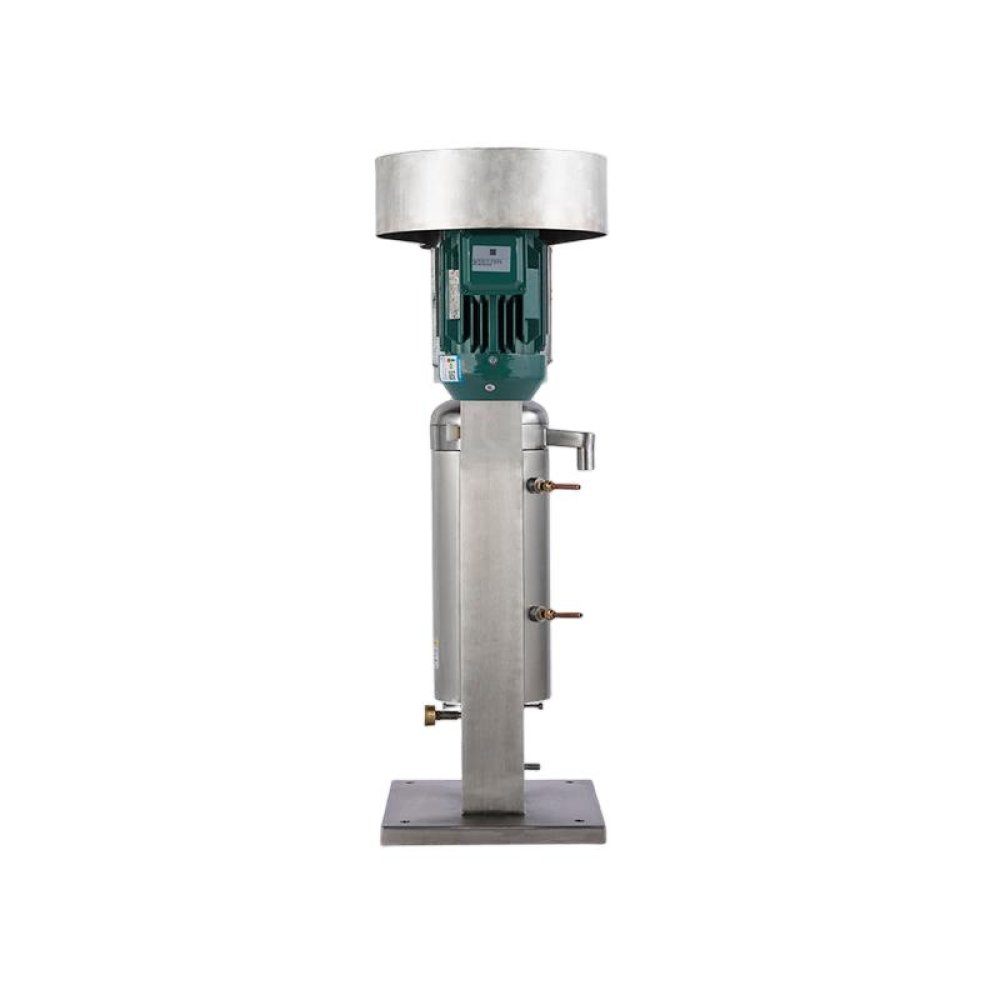

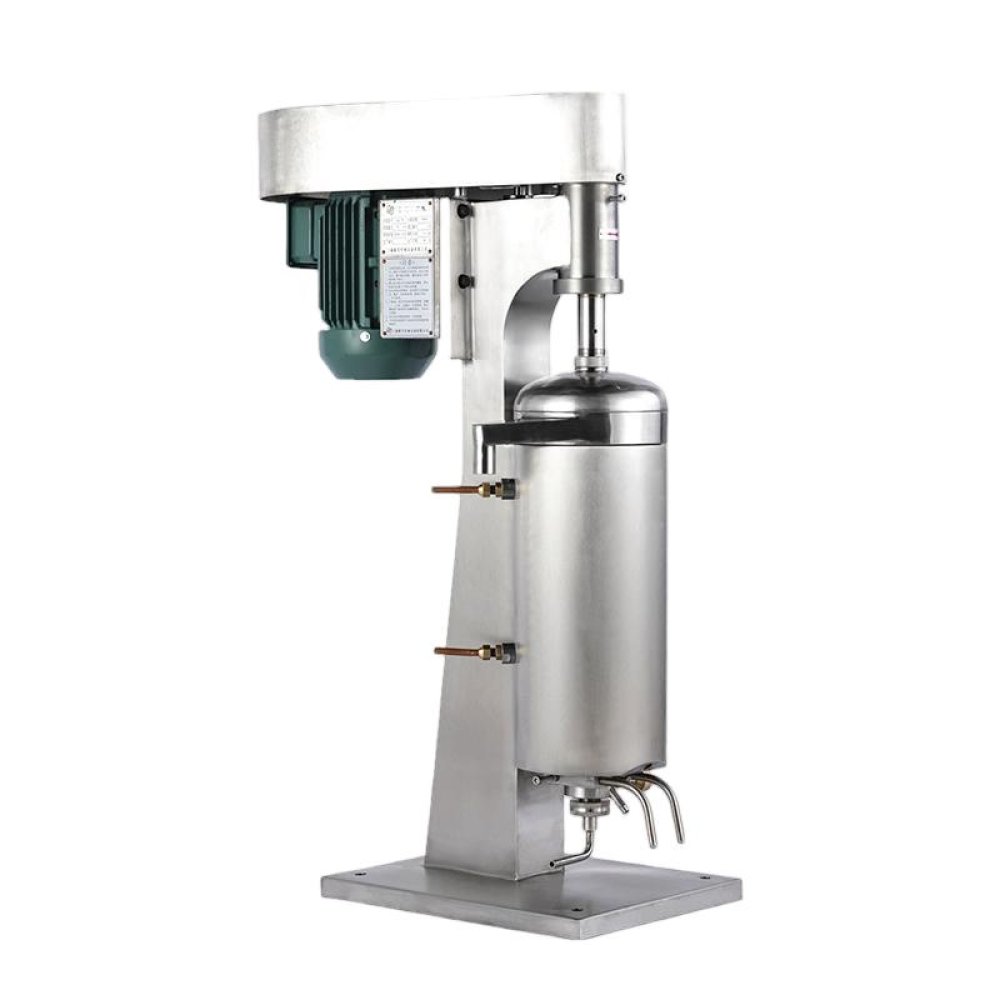

The VEC-GQ76 High Speed Tubular Centrifuge is a small high g-force solid-liquid separation machine made of 316L stainless steel for all wetted parts, running up to 20000rpm with 17008xg separating factor, ideal for low-concentration, fine-particle & high-viscosity raw material separation in biotech, herbal medicine, food & chemistry labs and research institutes.
The VEC-GQ76 tubular centrifuge is compact lab-type high-speed separator featuring ultrahigh separating factor up to 17008xg at 20000rpm. All parts contacting raw materials are made of sanitary 316L stainless steel to meet pharmaceutical & food-grade standard. It continuously runs automatically to produce high-purity clarified liquid and low-moisture solid residue, suited for low-concentration, fine-particle, high-viscosity feed with small density difference. With small footprint and stable running, it cuts manual cost efficiently. Its drum volume is 2L and max throughput reaches 0.5m³/h.
Biomedical and Life Sciences Laboratories: Clarification of biological fluids, cell suspensions and laboratory samples for use in universities and research institutions.
Herbal and Pharmaceutical Industries: Removal of fine impurities from plant extracts, such as herbs, and medicinal concentrates.
Health Food and Beverage Industries: Purification of raw materials for fruit juices, plant extracts and functional health beverages.
Fine Chemicals Industry: Separation of minute solid particles from high-viscosity chemical raw materials and liquid feedstocks.
Item | Parameter |
Model | VEC-GQ76 |
Separation Factor(xg) | 17008 |
Bowl Inner Diameter(mm) | 76 |
Effective Bowl Length(mm) | 490 |
Bowl Volume(L) | 2 |
Rotating Speed(r/min) | 20000 |
Max Flow Rate(m³/h) | 0.5 |
Motor Power(kw) | 1.5 |
Net Weight(kg) | 180 |
Overall Dimension(LWH,mm) | 650×380×1150 |
Optional | PLC control cabinet, mobile platform, temperature sensor, vibration sensor, feed peristaltic pump |
VEC-GQ200G high speed tubular centrifuge is a large capacity industrial solid liquid clarification separator. It delivers max speed of 11800 r/min and separation factor of 15600 xg, with 24 L drum volume and 3 m³/h water throughput.
VEC-GQ76 high speed tubular centrifuge with 17008xg separation factor & 20000rpm speed, all wetted parts in 316L stainless steel. Ideal for low-concentration high-viscosity solid-liquid separation in biotech, herbal medicine, food and chemical labs.
The 105 series tubular centrifuge includes VEC-GQ105, VEC-GF105 & VEC-GQ105G three models, high-speed industrial tubular separator with max 15040xg separation factor, available in round tank & square clean tank structure for solid-liquid, liquid-liquid-solid three-phase separation across biopharma, herbal medicine, food and fine chemical industries.
GQ150 tubular centrifuge belongs to 150 series high speed industrial separator with ultra-high separating factor and large-diameter rotor drum, all wetted parts stainless steel constructed, equipped with safety guard & dedicated cleaning workbench, ideal for tough solid-liquid and liquid-liquid-solid separation of dilute suspension with tiny particles & minimal density difference in industrial mass production.
GQ142G & GQ142GOS sanitary tubular centrifuge adopt full stainless steel open square cabinet with built-in large cooling coil and 316L wetted parts; GOS version equips imported international-brand core parts & high-hardness rotor, designed for temperature-sensitive raw liquid clarification in pharmaceutical, biological and high-end cosmetic production.
VEC-GQ142G-SIP customized tubular centrifuge is GMP-compliant sanitary separator supporting online SIP & manual online CIP, full 316L stainless steel construction with 23000xg high separating factor, touch screen operation and movable wrapped base for sterile pharmaceutical and biotech continuous solid-liquid clarification.
