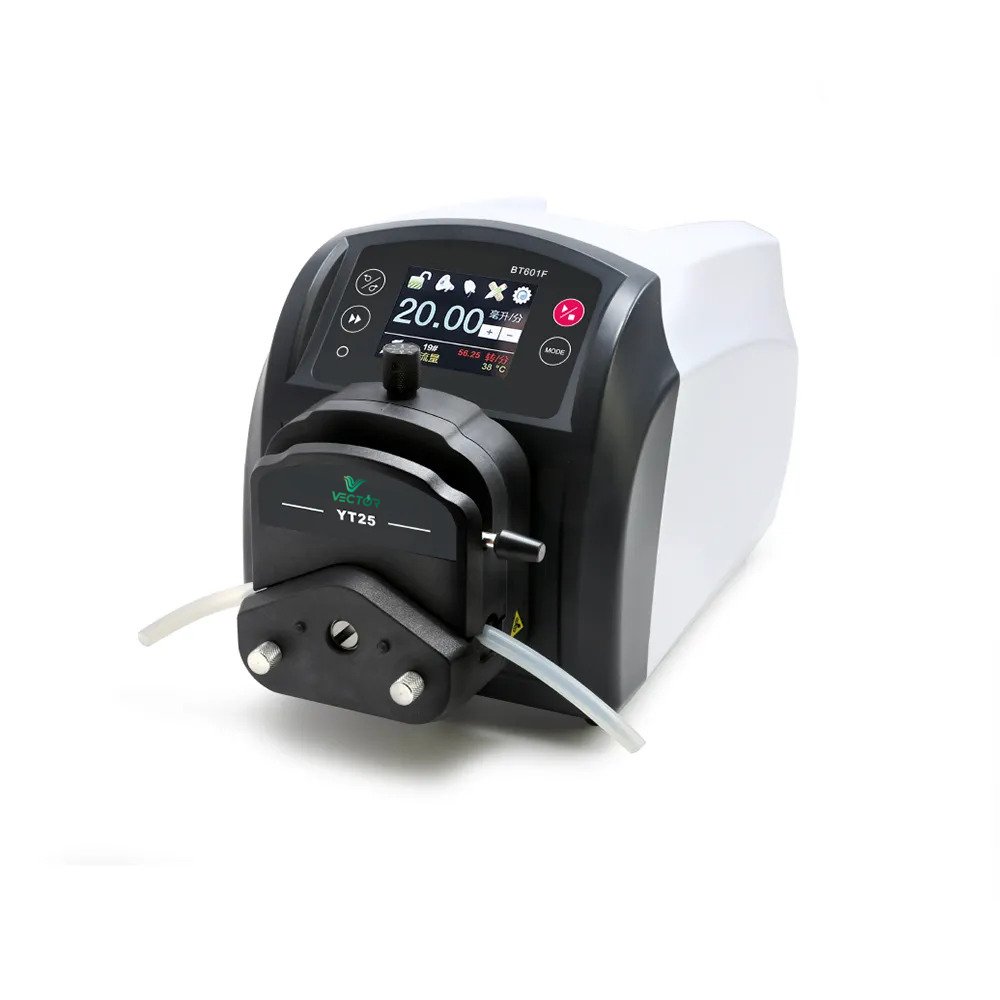

The BT601F Dispensing Smart Peristaltic Pump features a color LCD and touchscreen technology, offering a simple, intuitive, and clear user interface. It is primarily suitable for various complex liquid dispensing tasks, precise metering, and quantitative feeding. When high precision in liquid volume dispensing is required, the volume dispensing mode is more convenient; when high throughput is required, the time-based dispensing mode is more convenient; and when a specific volume of liquid needs to be divided into multiple portions, please use the duplicate dispensing mode. When set to flow mode, it functions exactly like a flow-type peristaltic pump. Intelligent temperature control technology is employed to minimize unnecessary fan noise. With RS485 communication and Modbus protocol compatibility, it connects easily with other control devices such as computers, HMIs, and PLCs.
- True-color touch screen + physical buttons for simple operation
- 4 precision dispensing modes: flow, volume, time and copy
- Supports 5 groups of preset parameters for batch dosing
- 0.1 rpm high resolution speed control with accurate flow calibration
- Basic functions: start/stop, forward/reverse, full speed and power-off memory
- Intelligent temperature control for low-noise stable operation
- Opto-isolated external signal and analog speed regulation support
- RS485 & Modbus communication for industrial system connection
- Dustproof and moisture-proof design with anti-interference & wide voltage adaptability
- Streamlined ABS housing, compatible with multiple pump heads
- Foot switch optional for hands-free dispensing
- Ideal for laboratory culture media and liquid dosing
Bacterial and cell culture
Microfluidic liquid transfer
Reagent dispensing
Culture media dosing and filling
Parameter | Specification |
Flow Rate Range | 0.005 ~ 3000 mL/min |
Speed Range | 0.1 ~ 600 rpm |
Speed Resolution | 0.1 rpm |
Speed Accuracy Error | ＜ ±0.2% |
Communication Interface | RS485 communication, compatible with Modbus protocol |
Power Supply Voltage | AC 100～240V, 50Hz/60Hz |
Power | ＜ 50W |
Operating Environment | Ambient temperature 0 ~ 40℃, relative humidity ＜ 80% |
Dimensions (L × W × H) | 258mm × 180mm × 197mm |
Protection Rating | IP31 |
Drive Weight | 3.9 kg |
External Control Interface | External input level: 5V,12V (standard); 24V (optional). External analog signal: 0-5V (standard); 0-10V, 4-20mA (optional) |
Dispensing Volume Setting Range | 0.001μL ~ 9999L (recommended filling volume ≥ 50μL) |
Dispensing Cycle Setting Range | 1 ~ 999 cycles; "0" stands for infinite loop |
Dispensing Interval Setting | 0.1 ~ 999.9 sec/min/hr, adjustable time unit |
