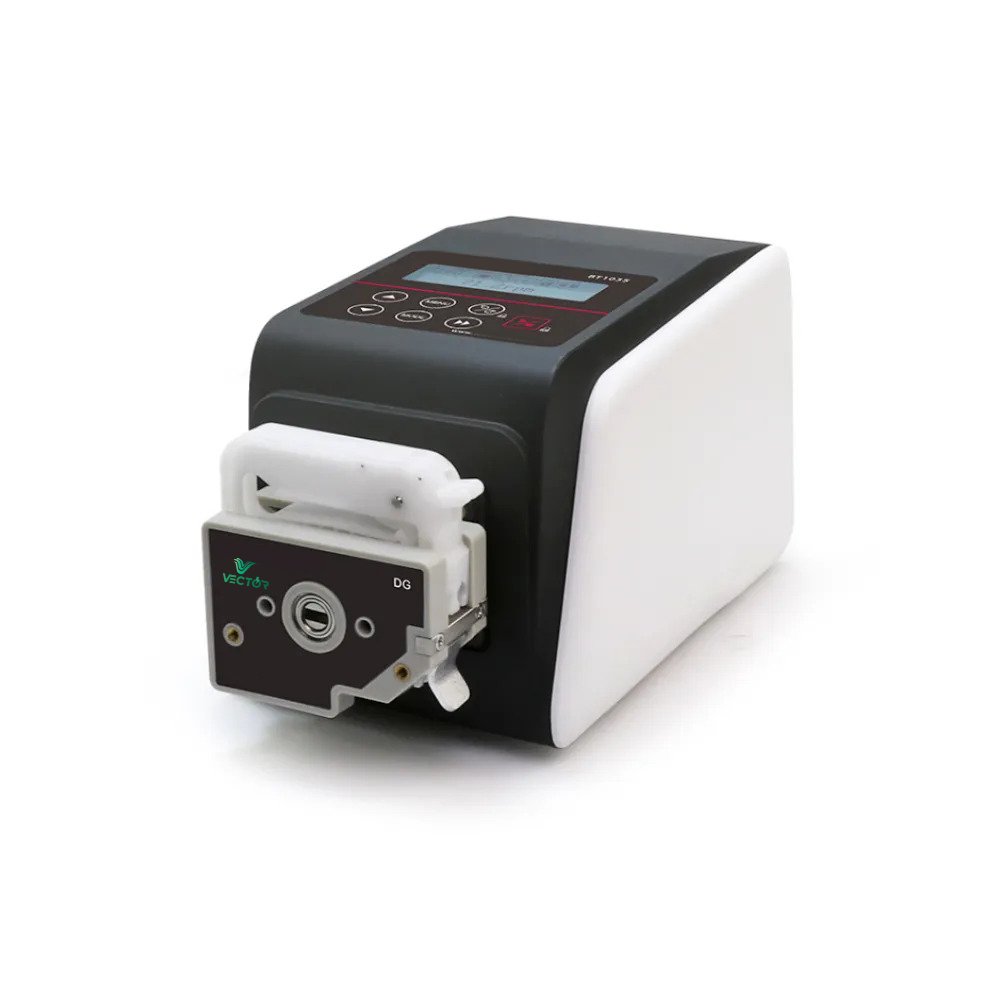

BT103S Variable-Speed Peristaltic Pump

Product Introduction:

The BT103S variable-speed peristaltic pump is driven by a high-quality stepper motor, with a speed range of 0.1 to 100 rpm and a speed accuracy error of <±0.5%. Its single-channel flow rate ranges from 0.00011 to 500 ml/min. The pump can be remotely controlled via software, and its operating status can be monitored in real time. Equipped with an RS485 communication interface compatible with the Modbus protocol, the pump can connect to host devices such as computers, microcontrollers, PLCs, variable frequency drives, and human-machine interfaces via various signal modes to enable centralized system control.

Product Features

Industrial membrane keys for easy operation and outstanding durability
Driven by high-quality stepper motor, delivering precise speed and stable operation to achieve high-accuracy fluid transfer
Standard functions: forward/reverse rotation, start/stop, full speed, speed regulation and power-off memory
Supports setting of running time, interval time and cycle counts to satisfy timed & quantitative dosing, liquid dispensing and flow testing
Equipped with slow stop and suck-back function to effectively prevent liquid dripping after shutdown
Key lock function to avoid accidental operation
Optional Software for remote control: start/stop, speed adjustment, timed operation; monitoring alarms including stop alert and tubing replacement reminder
Streamlined injection-molded housing, concise, aesthetic and easy to clean
Circuit board coated with conformal coating for dustproof and moisture-proof performance
Excellent anti-interference capability and wide voltage design, suitable for complex power supply environments
External analog speed regulation; external signals control start/stop and rotation direction with galvanic isolation
RS485 communication compatible with Modbus protocol, configurable communication parameters for connection with various controllers
Supports stall alarm and liquid leakage alarm (optional)
Optional external thermal printer for real-time printing of operating parameters
Compatible with multiple high-performance pump heads for flexible combinations of pump head and driver

Application

Material transfer and liquid batching
TFF and DFF ultrafiltration processes
Fluidized bed system feeding
Chemical additive and admixture dosing

TECHNICAL PARAMETERS

Parameter	Specification
Flow Rate Range	0.00011 ~ 500 mL/min
Speed Range	0.1 ~ 100.0 rpm
Speed Resolution	0.1 rpm
Speed Accuracy Error	< ±0.2%
Power Supply Voltage	AC 100～240V, 50Hz/60Hz
Power	< 30W
Operating Environment	Ambient temperature 0～40°C, relative humidity < 80%
Dimensions (L × W × H)	235 × 140 × 145 mm
Protection Rating	IP31
Operation Interval	0.1～999 sec/min/hr/day, adjustable time unit
Cycle Times	1～999 cycles; "0" for infinite loop
External Digital Communication	RS485 communication, compatible with Modbus protocol, DB15 external control interface
Drive Weight	2.8 kg
External Control Signal Output	Start/stop and direction status output
External Control Signal Input	Start/stop and direction control, adaptive 5–24V; analog signal 0-5V/0-10V/4-20mA configurable
