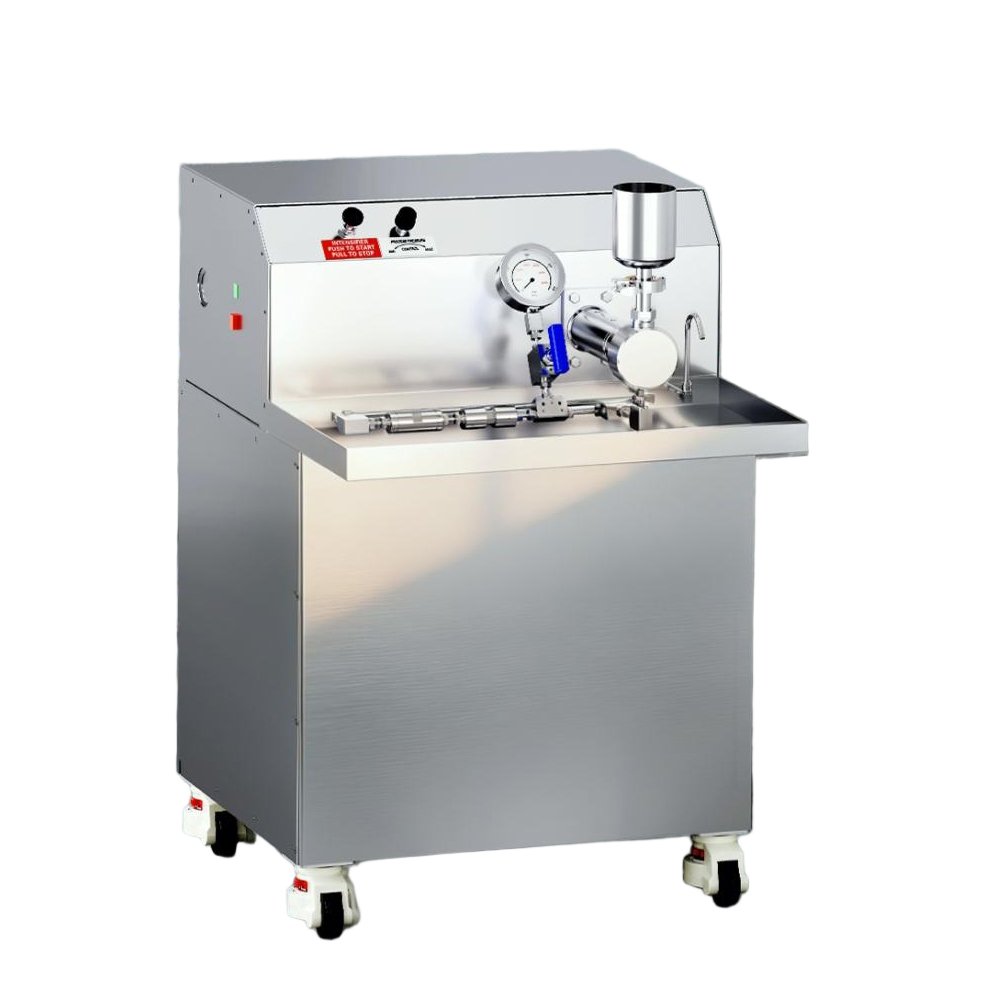

Pilot Type High Pressure Microfluidizer Homogenizer
VEC-MH24 pilot type high pressure microfluidizer homogenizer is a reliable, continuous operating machine with working pressure of 30,000 psi. Suitable for small-scale production.
Pilot Type High Pressure Microfluidizer Homogenizer
Product Introduction:
VEC-MH24 pilot type high pressure microfluidizer homogenizer reliably maintains a continuous operating with working pressure of 30,000 psi. By maximizing the energy density per unit volume of fluid, the homogeniser delivers consistent submicron particle and droplet sizes, making it ideal for laboratory research and cosmetic manufacturing applications.
Utilising high-pressure microfluidisation technology with a fixed-geometry diamond interaction chamber and zirconia ceramic plungers, the VEC-MH24 efficiently processes a wide range of fluids in just 1–2 cycles—including simple oil-in-water emulsions, solid dispersion in liquid suspensions, and cell disruption. Furthermore, the process is highly repeatable, ensuring seamless scalability from laboratory trials to full-scale production.
Product Features
VEC-MH24 pilot type high pressure microfluidizer homogenizer features
The pilot-scale high-pressure microfluidization homogeniser operates at pressures of up to 30,000 psi (2,070 bar).
Flow rate up to 400 mL/min at 30,000 psi (2,070 bar).
Scalable to production scale.
Wear-resistant diamond-coated interaction chamber – the core homogenisation component.
Special high-strength steel and a more robust design to extend pump head service life.
Ceramic (zirconia) plungers, extending seal life.
In-line cleaning design, no disassembly required.
Intuitive touchscreen operation.
Explosion-proof options available.
Application
· Pharmaceutical emulsions & nano-drug processing
· Nanoparticle & liposome preparation
· Cosmetic homogenization
· Graphene & nanomaterial dispersion
· Microbial cell disruption (E. coli, yeast, algae)
TECHNICAL PARAMETERS
VEC-MH24 Pilot Type High Pressure Microfluidizer Homogenizer Technical parameter
Parameter | Specification |
Model | VEC-MH24 |
Operating Pressure | 30,000 psi (2070 bar) |
Flow Rate | 400 ml/min (24 L/H) |
Min. Processing Volume | 100 mL |
Plunger Qty. | 1 pc |
Power | 380V, 50Hz, 3.7KW |
Dimension (L×W×H) | 900×850×1500 mm |
Maximum Feed Particle Size | < 300 μm |
·
