Pilot Type High Pressure Microfluidizer Homogenizer
VEC-MH24 pilot type high pressure microfluidizer homogenizer is a reliable, continuous operating machine with working pressure of 30,000 psi. Suitable for small-scale production.

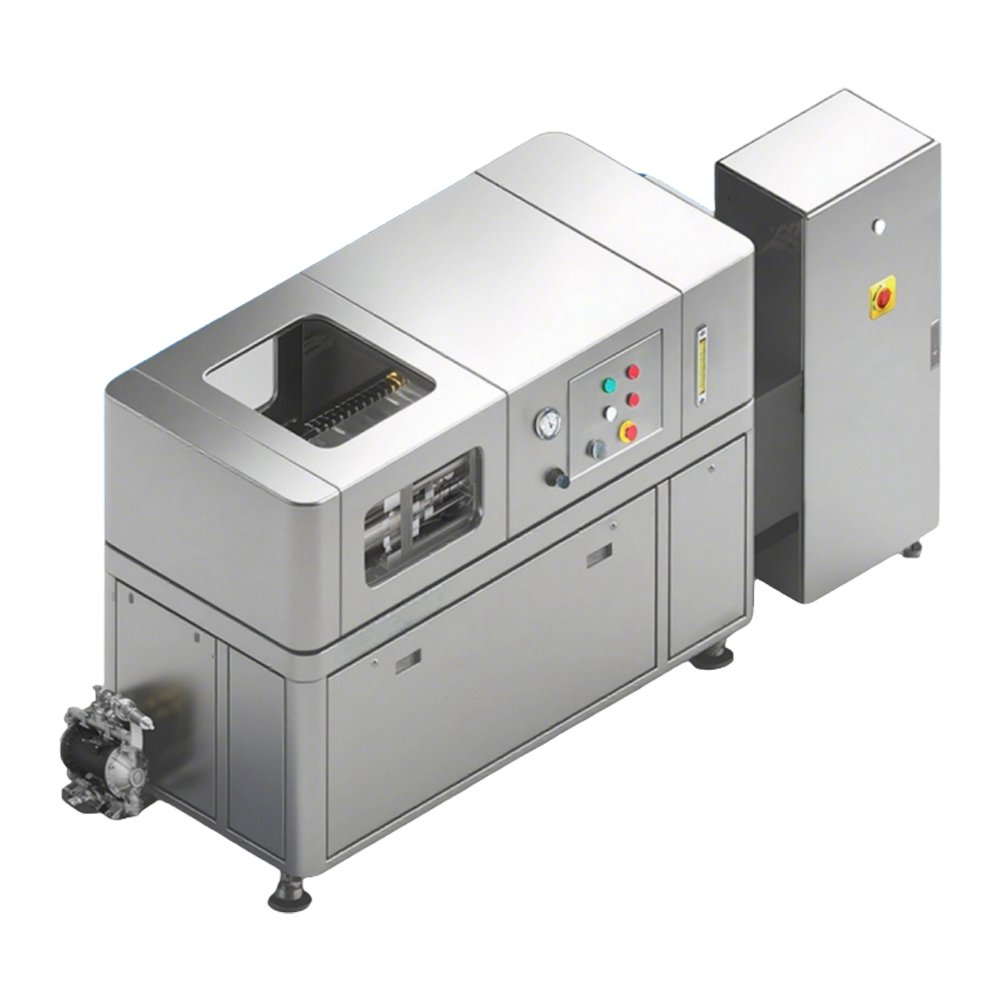

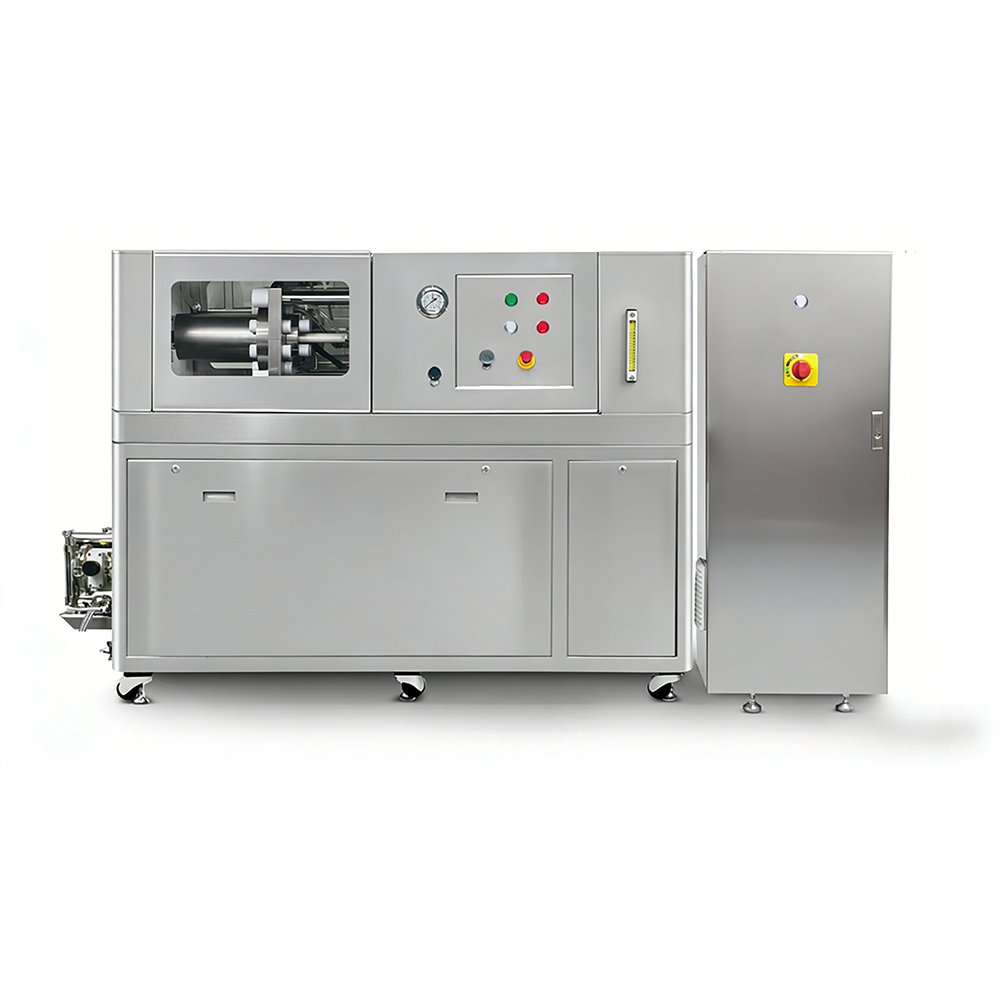

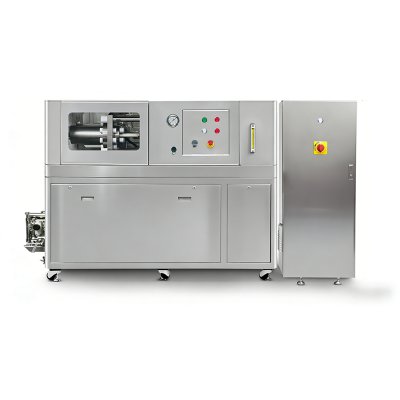

Production Type High Pessure Microfluidizer Homogenizer
Product Introduction:
VECTOR production type high pessure microfluidizer homogenizer is designed exclusively for large-scale production, the VEC-MH Series high-pressure microfluidization homogenization system delivers full assurance of production cleanliness and safety.
It provides reliable solutions for industries with stringent requirements for hygiene and scale, including pharmaceuticals, cosmetics, biotechnology, aesthetic medicine products, new energy materials, food and beverage, and more.
Product Features
VECTOR production type high pessure microfluidizer homogenizer features
Particle size control: Industrial-grade high-pressure micro-fluidization homogeniser can achieve highly uniform and reproducible micron- and nanometre-scale particle size distributions, thereby delivering consistent and reliable results.
Temperature Control Accuracy: Equipped with an integrated sanitary-grade material heat exchanger for precise temperature regulation of process fluids.
Hygienic Standards: Features a 316L stainless steel main body, fully compliant with GMP requirements for biopharmaceutical and cosmetic manufacturing.
Automation Level: PLC intelligent control system enables smart, automated regulation of pressure and temperature for seamless operation.
Diamond Interaction Chamber: Customizable microchannel dimensions with enhanced pressure resistance, tailored to diverse process requirements.
Pressurised Feeding System: Optimised for feeding high-viscosity materials, with a maximum viscosity of up to 100,000 cps.
Application
· Pharmaceutical emulsions & nano-drug processing
· Nanoparticle & liposome preparation
· Cosmetic homogenization
· Graphene & nanomaterial dispersion
· Microbial cell disruption (E. coli, yeast, algae)
TECHNICAL PARAMETERS
VECTOR Production Type High Pessure Microfluidizer Homogenizer Technical parameter
VEC-MH60 | VEC-MH120 | VEC-MH240 | VEC-MH500 | |
Operating Pressure | 30,000 psi (2070 bar) | 30,000 psi (2070 bar) | 30,000 psi (2070 bar) | 30,000 psi (2070 bar) |
Flow Rate(L/H) | 60 | 120 | 240 | 500 |
Plunger Qty.(pc) | 1 | 2 | ||
Power | 380V, 11.5KW | 380V, 18.5KW | 380V, 37KW | 380V, 75KW |
Dimension (L×W×H,mm) | 2780×860×1460 | 2780×860×1460 | 2780×860×1460 | 2780×860×1460 |
Weight(kg) | 800 | 1000 | 1300 | 2100 |
Optional Configuration | International brand touchscreen control; IPC; audit trail; inlet/outlet temperature sensors; explosion-proof design; upgraded feeding module for high-viscosity materials | |||
·
