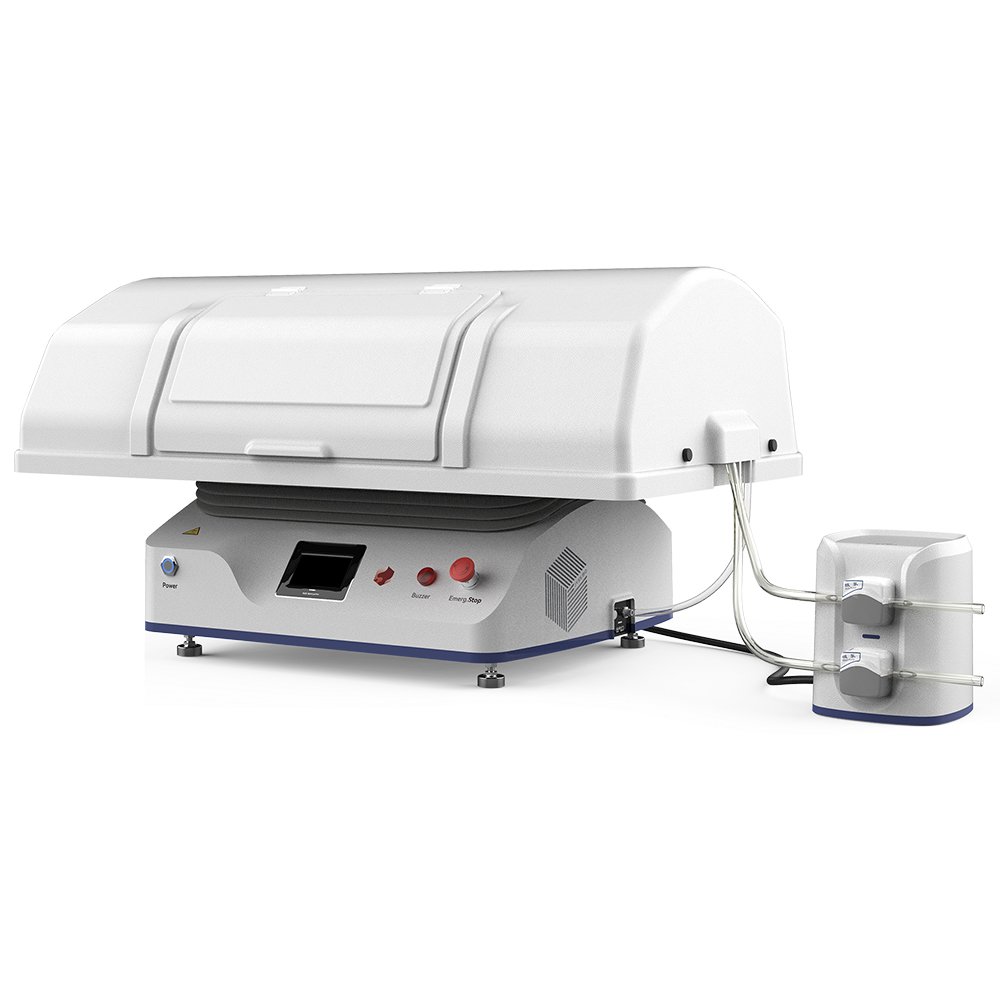

Wave Bioreactor
Product Introduction:
The GER Series Wave-induced Bioreactor is a highly efficient cell culture system. It achieves fluid mixing and oxygenation through wave-induced agitation, and can be used with optional sensor modules, automated process control software, and dedicated GER single-use wave bags. With a working volume of up to 25 L, it provides complete solutions for applications ranging from basic life science research, seed culture cultivation to cGMP-compliant manufacturing in the biopharmaceutical industry.
Outstanding Culture Performance
Ensures rapid mixing and enhanced gas mass transfer. No sparging is required for oxygen transfer, preventing cell damage and eliminating the use of antifoam agents. It improves cell condition, boosts cell density and maximizes product yield.
Strong Platform Versatility
Suitable for the cultivation of most suspension cells and microcarriers. Compatible with batch, fed-batch and perfusion culture modes.
Flexible Configuration & Easy Operation
Compatible with various sizes of culture bags to reduce hardware investment. Minimizes vessel transfer, lowers contamination risk and saves labor time. Avoids cross-contamination, as well as cleaning, sterilization and validation processes.
Precise & Reliable Control System
Enables accurate control of rocking angle and rotation speed. Integrated with pH and DO sensors for real-time measurement of key process parameters. Supports full-range monitoring of the cell culture process.
Designed for the production of monoclonal antibodies, vaccines, cell and gene therapy products. Typical applications include:
Suspension culture of mammalian cells, such as CHO and HEK293 cells
Insect cell culture, such as Sf9 cells
Batch and fed-batch culture of suspension cells
Adherent cell culture on microcarriers, such as Vero cells
Continuous perfusion culture of immune cells, stem cells and T cells
TECHNICAL PARAMETERS
Item | 50L wave bioreactor |
Total volume | 50L |
Maximum working volume | 25L |
Minimum working volume | 5L |
Range of speed | 2-35 rpm |
Control accuracy of speed | ±1 rpm |
Angle range | 2-12° |
Angle control accuracy | ±0.5° |
pH control | Single-use optical electrode with a control range of 5.5-8.5 and control accuracy of ±0.1 |
DO control | Single-use optical electrode with the control range of 0-100 %, air saturation and control accuracy of ±5% |
DO monitoring | Single-use optical electrode, monitoring range of 0-100%, pure oxygen and measurement accuracy of ±2% |
Temperature control | Range of control: Room temperature to 50 °C, control accuracy of ±0.2 °C |
Temperature control | PT1000, measuring range of 50 ~ 300 °C, and measuring accuracy of ±0.2 °C |
Weighting | Measuring range of 0-100kg, measuring accuracy of ±1% |
Mass flow controller for CO2 and N2 | Maximum range of flowmeter: 2L |
Accuracy: ±2% of full range | |
Mass flow controller for air and O2 | Maximum range of flowmeter:5L |
Accuracy: ±2% of full range | |
Peristaltic pump ‑ow (ml/min) | 0-300ml/min；1.2L/min optional |
