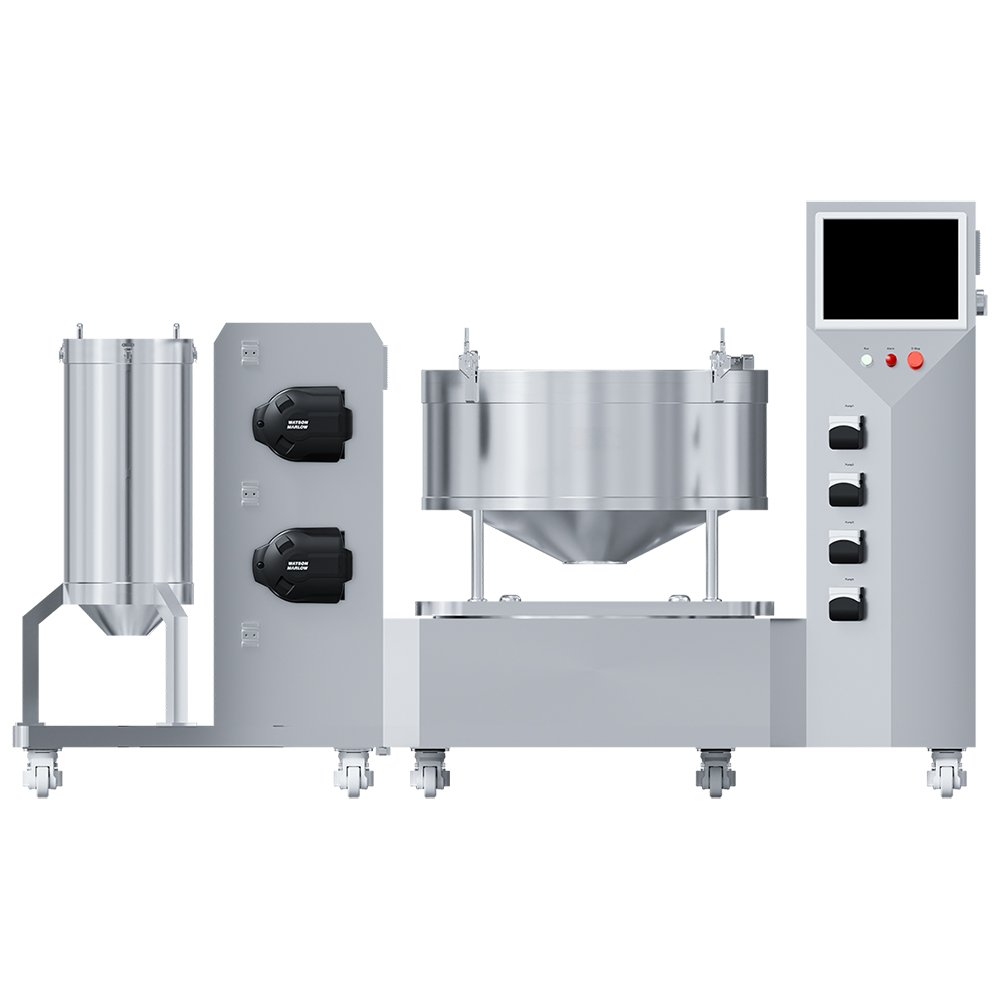

Adherent Single-Use Bioreactor for Anchorage-Dependent Cell Culture

Adherent Single-Use Bioreactor

Product Introduction:

Excellent axial flow mixing and mass transfer performance.

High-quality components for stable system operation.

Modular design with customized support and easy operation.

Three-level authority, audit trail and transferable electronic data reports.

Intuitive touchscreen software with clear feedback logic.

Flexible macro/micro bubble aeration & complete FAT, SAT, IQ/OQ services.

The CPB adherent bioreactor builds upon the operating principle of the CUR flow-through bioreactor by incorporating an infusion module. The CUR system is defined as a mixing/mass transfer module, which operates in conjunction with the culture module to utilise a novel external circulation-based sheet carrier infusion culture process. The mixing/mass transfer module provides a growth environment for the cells, whilst the system enables online control of parameters such as pH, temperature, dissolved oxygen and circulation rate, thereby optimising the microenvironment for cell growth. The sheet-like carriers are fixed within the culture bag, and the cells adhere to and grow on these carriers, enabling high-density cell culture.

Vero cells

MDBK cells

CEF cells

PER.C6 cells

HEK293 adherent cells

MRC-5 cells

WI-38 cells

BHK-21 adherent cells

TECHNICAL PARAMETERS

Specification	4 L	10 L	100 L
Volume (L)	4	10	100
Dimensions (Length × width × height) (mm)	1500500650	1980770695	239010501475
Weight (kg)	85	335	776
Power (kw)	0.8	1	2.2
Range of speed	45-70	45-70	40-60
