Jet-Flow Bioreactor for High-Density Mammalian Cell Culture

Jet‑Flow Bioreactor

Product Introduction:

Non-bubble-type interfacial oxygen transfer mechanism with high oxygen transfer efficiency;

No impellers or bottom vents, eliminating the need for defoamers;

Low shear stress, eliminating the need for anti-shear agents;

Inverted truncated conical vessel design provides a large gas-liquid interface area and a stable flow field;

Increased Froude number (Fr), ensuring good process scalability and reproducibility;

Facilitates high-density, high-vitality cell culture;

Intelligent control system with a user-friendly interface;

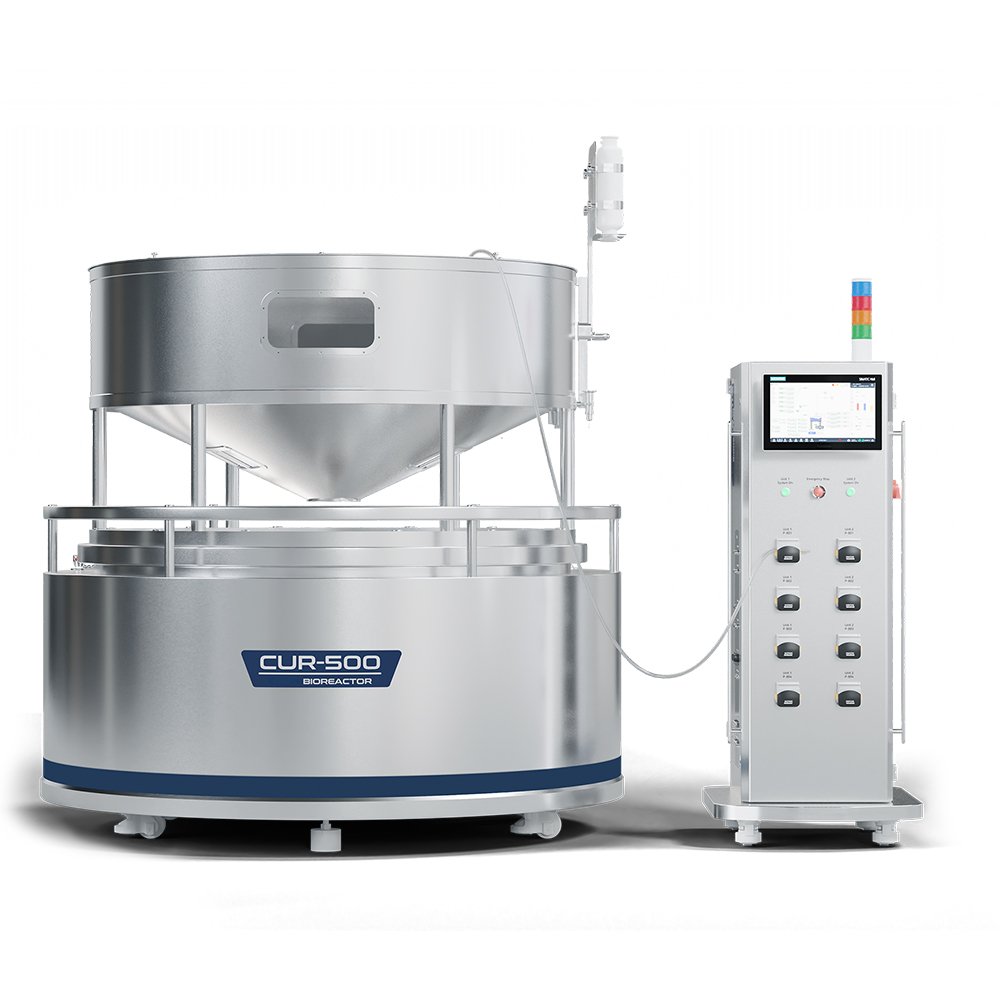

The CUR Series Jet‑Flow Bioreactor utilizes a non‑sparging interfacial oxygen transfer mechanism for fluid mixing.This advanced mass transfer method meets large‑scale production requirements while avoiding cell damage caused by surface tension from bubbling aeration and high shear stress from impellers in conventional bioreactors.

Within its normal operating speed range, the average shear rate inside the vessel is below 20 s⁻¹, enabling high‑density and high‑viability culture for shear‑sensitive cells.

Enables local online monitoring of key parameters such as pH, DO, temperature and rotational speed; all data is collected in real time, with the ability to generate reports and graphs;

Supports remote monitoring of parameters and processes; provides users with electronic records and electronic signatures compliant with FDA 21 CFR Part 11;

Short lead times; consumables undergo integrity testing;

Fixed specifications; customisable piping, fittings and membrane materials;

Suspension cell culture:

CHO,

HEK293,

Sf9, Sf21,

hybridoma,

immune cells

TECHNICAL PARAMETERS

Specification	2 L	5 L	50 L	300 L	500 L	1200 L
Speed-accuracy	±1 rpm
pH range accuracy	0 ~ 12 ±0.02
DO range accuracy	0 ~ 100% ±5%
Temperature range accuracy	< 50°C ±0.1°C
Dimensions (Length × width × height) (mm)	700440480	9286681143	140010001400	208017901489	250221341600	258021801851
Working volume (L)	0.5 ~ 2	2 ~ 5	15 ~ 50	50 ~ 300	120 ~ 500	300 ~ 1200
Weight (kg)	80	112	370	760	1000	1320
Power (kw)	0.4	0.6	1	4	6.5	7.5
Range of speed	25 ~ 90	25 ~ 90	25 ~ 70	20 ~ 35	20 ~ 35	20 ~ 30
