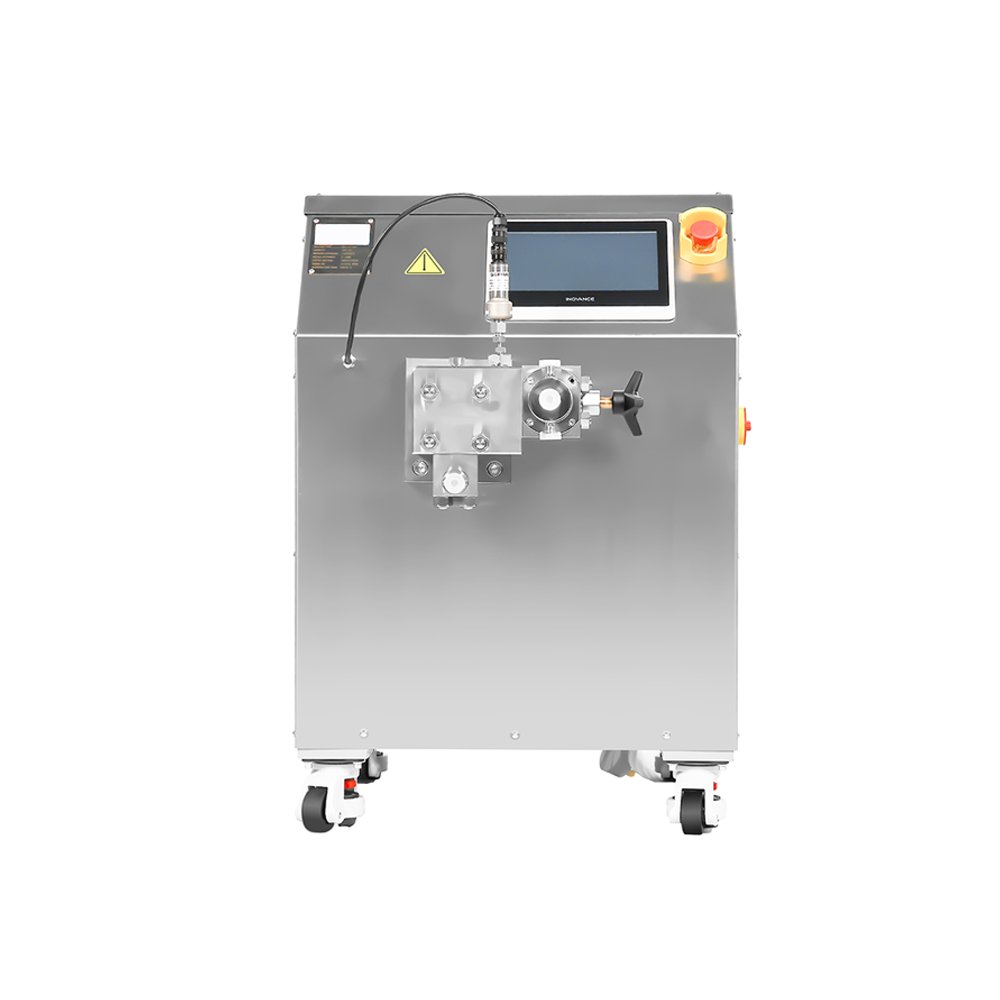

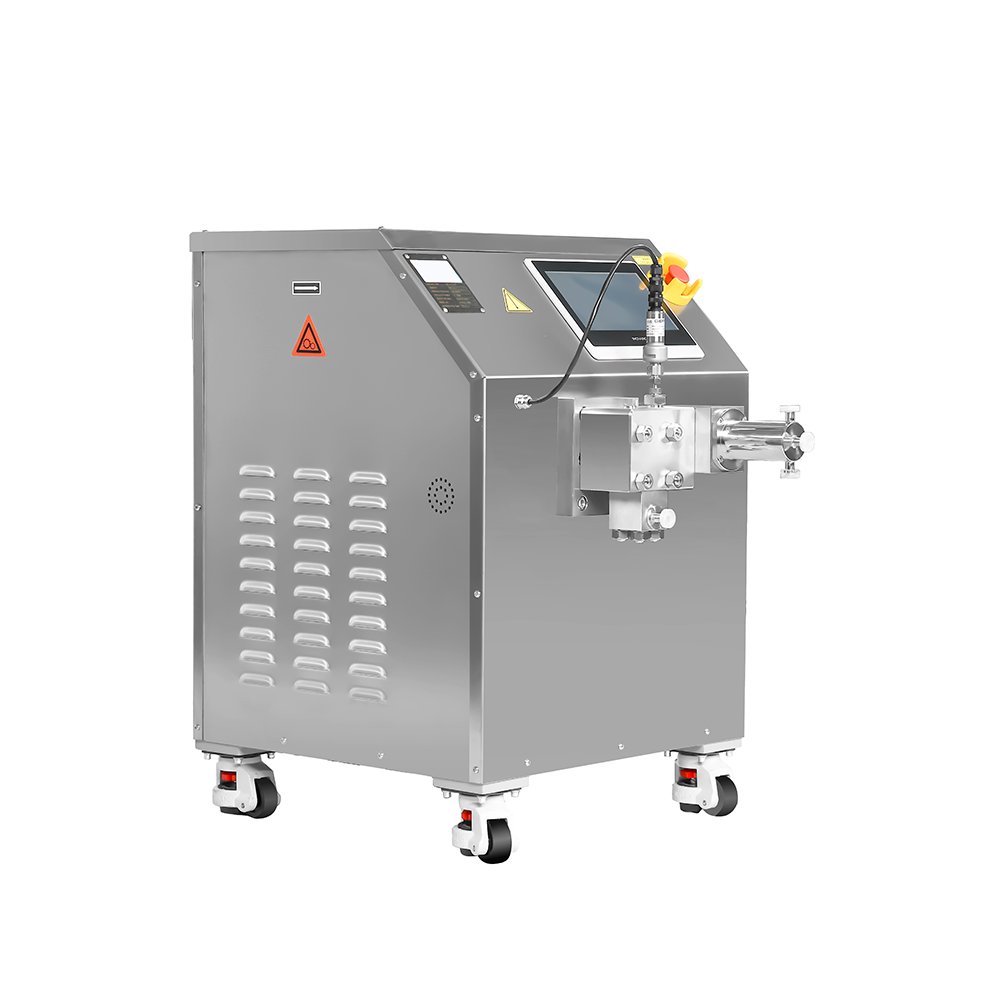

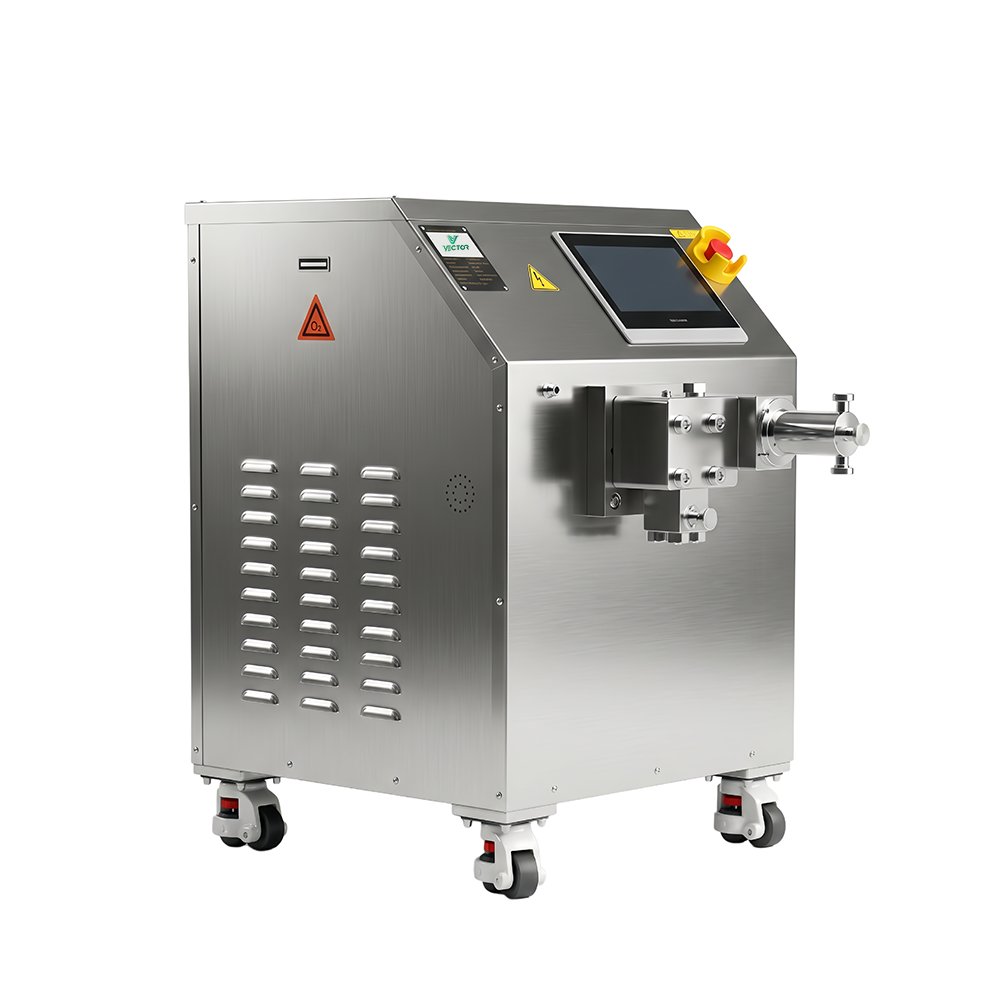

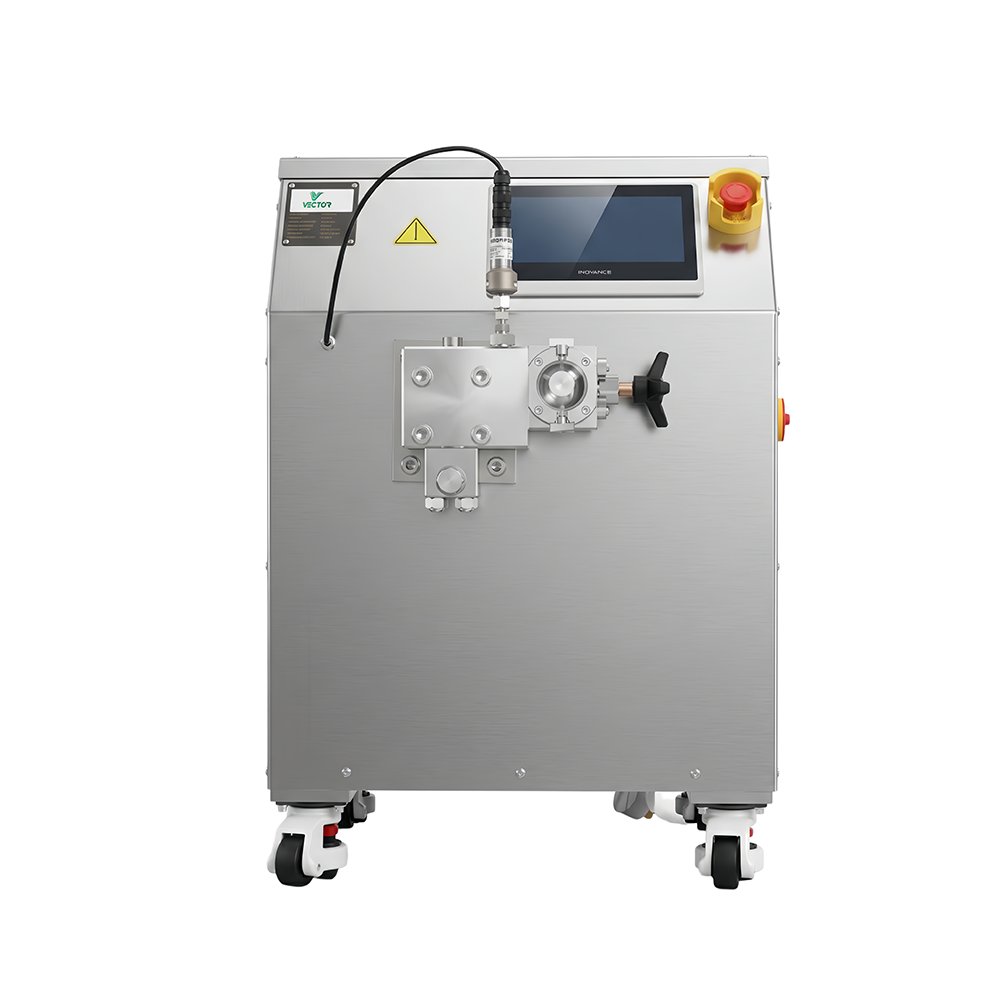

VEC-Classic pilot type high pressure homogenizer is specially designed for small batch production and lab scale R&D across diverse industries. It delivers reliable performance and supports stable scale‑up from laboratory to pilot production. Widely used in biotechnology R&D, microbial fermentation, cell lysis, intracellular extraction, pharmaceutical development, cosmetic processing, food research, and advanced nanomaterial production, it provides consistent and repeatable results for your small‑scale manufacturing and process development.
VEC-Classic pilot type high pressure homogenizer features
· All components that come into contact with the homogenized product are manufactured using 316L or higher-grade sanitary stainless steel, providing excellent hygiene and superior corrosion resistance.
· High-performance zirconia ceramic plunger delivers outstanding wear resistance, exceptional corrosion resistance, and an extended service life.
· Sanitary pressure sensor offers a 0–2000 bar range with high precision and ±1 bar accuracy, ensuring stable and reliable pressure monitoring.
· Sanitary tri-clamp piping features a 3D design for complete drainability and effortless cleaning.
· 7-inch touchscreen interface with intelligent PLC control system enables real-time pressure curve display and user-friendly operation.
· Comprehensive safety system includes overpressure protection, emergency stop, alarm, and safety interlock for secure and reliable operation.
· Microbial cell disruption (E. coli, yeast, algae)
· Pharmaceutical emulsions & nano-drug processing
· Nanoparticle & liposome preparation
· Graphene & nanomaterial dispersion
· Food, beverage & cosmetic homogenization
VEC-Classic Pilot Type High Pressure Homogenizer Technical Parameter
Model | VEC-Classic40 | VEC-Classic60 |
Operating Pressure BAR | 1500 | 1000 |
Flow Rate （L/H） | 30~40 | 50~60 |
Min. Processing Volume（mL） | 60 | 60 |
Motor KW | 5.5 | 7.5 |
Plunger Qty. | 1 | 1 |
Plunger Material | Zirconia | Zirconia |
Inverter（KW） | 5.5 | 7.5 |
VECTOR laboratory type high pressure homogenizer is meticulously designed for experimental research and development. With minimum batch size of 10 ml, stable operating pressure of 1,800 bar, it is an ideal choice for all types of laboratories.
VEC-Classic pilot type high pressure homogenizer is suitable for the precise homogenisation of materials in laboratory, pilot-scale and small-scale production， such as in the biopharmaceutical, food processing, cosmetics and new materials sectors.
The VEC-Classic production type high pressure homogeniser supports automated production and offers customised explosion-proof and sterile solutions to meet the diverse requirements of industries .
