VEC-Tissuelyser-L

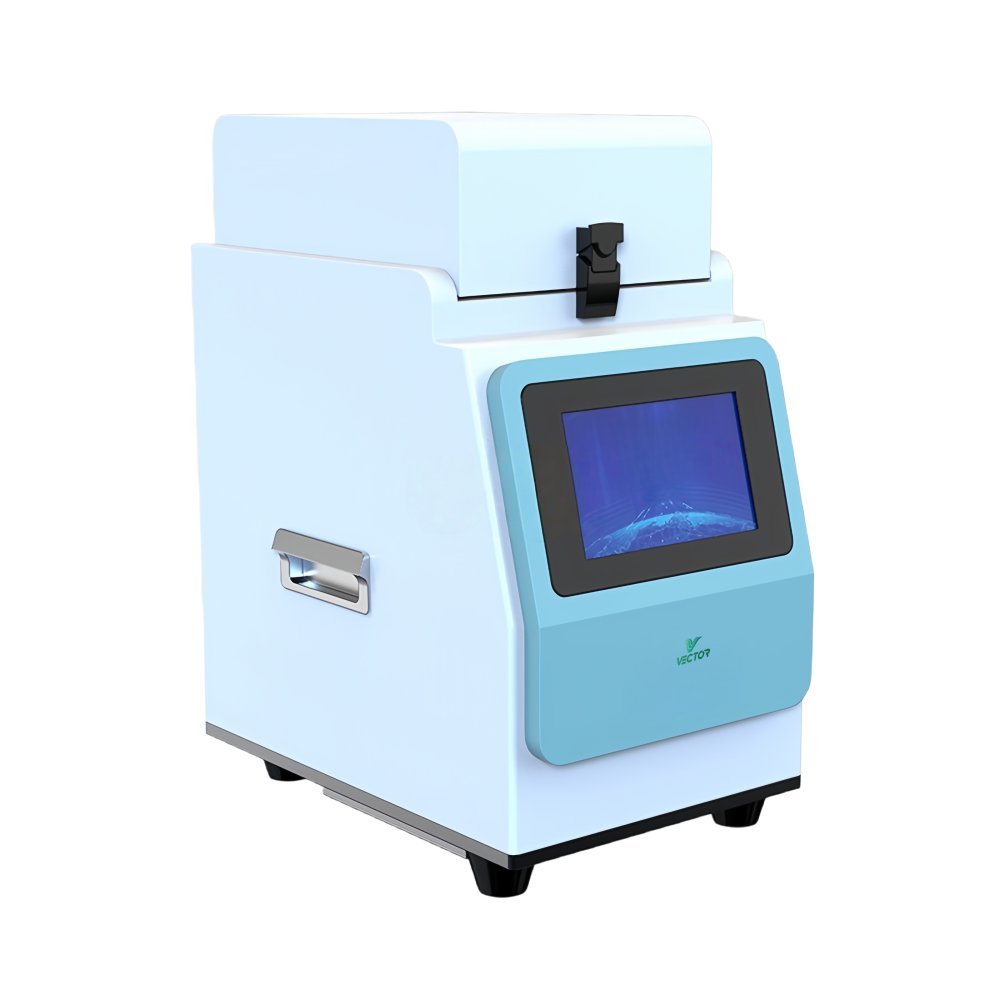

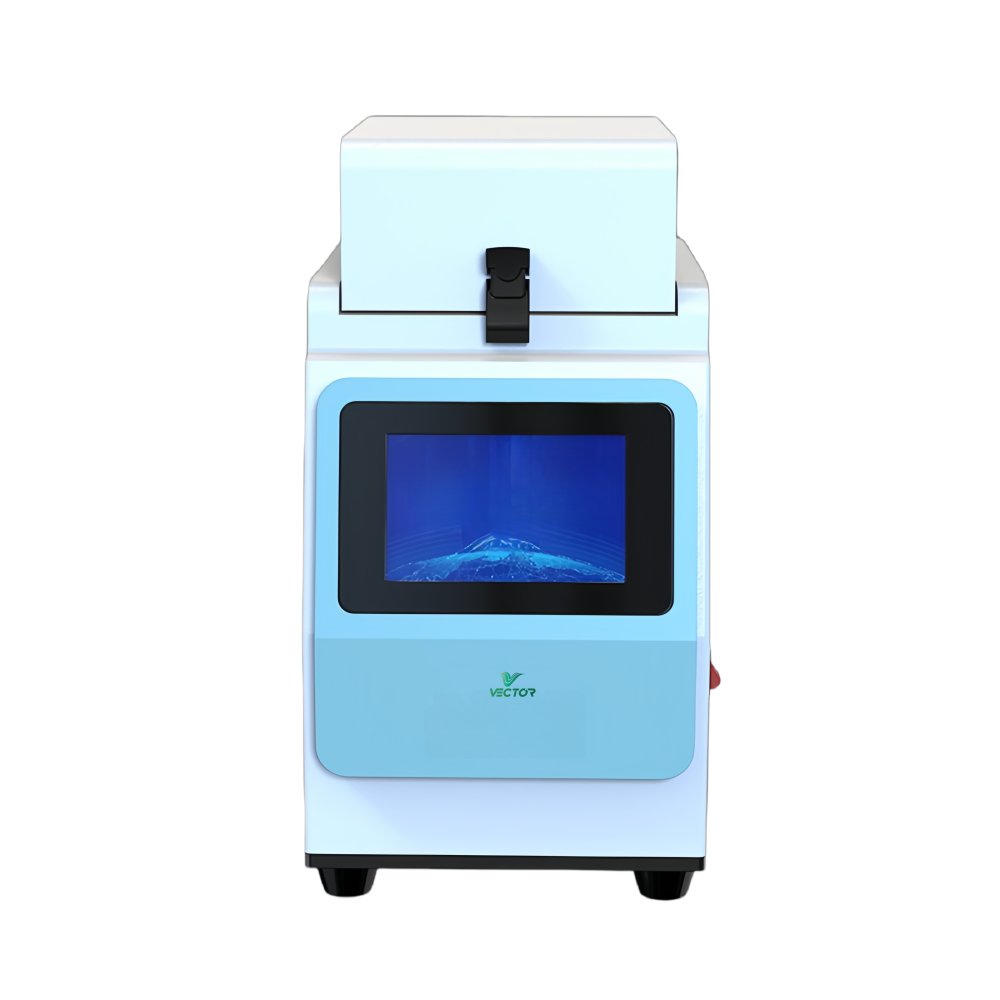

VEC-Tissuelyser-L is a high-throughput multi-sample tissue homogenizer. It is a rapid, highly efficient, multi-tube, and cross-contamination-free grinding device.
VEC-Tiss Basic Type Grinder
Product Introduction:
The VEC-Tiss basic type grinder adopts a unique vertical-up-down integrated vibration mode. Through the high-frequency reciprocating vibration, impact and shearing of the grinding beads (zirconia, steel beads, glass beads, ceramic beads), it quickly achieves the purpose. This enables the ground samples to have more thorough, more uniform, better sample repeatability, and no cross-contamination between samples.
VEC-Tiss basic type grinder features
· High operational efficiency with numerous options：The system can handle up to 2ml * 12/24/48 samples within 1 minute. The extracted protein has a higher speciYc activity and the nucleic acid fragments are longer.
·No cross-contamination：During the crushing process, the sample tubes remain fully sealed, ensuring that the samples are completely retained within the tubes and avoiding cross-contamination between samples as well as external contamination.
·User-friendly operation interface.
·Excellent stability：The integrated vibration mode ensures more：thorough grinding and better stability; it is quiet; it has a dedicated emergency stop physical button to prevent accidents; the driving system uses an original brushless silent pulse motor, ensuring stable performance.
Suitable for homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, oscillation of animal and plant tissues and cells. Widely applied in fields such as biochemistry, microbiology, animal and plant biology, and food.
TECHNICAL PARAMETERS
VEC-Tiss Basic Type Grinder Technical Parameters
Model | VEC-Tiss-12/24/48 |
Application | Homogenization, grinding, cell disruption, homogenate preparation material dispersion, sample mixing, oscillation |
sample handling | Within 15 seconds, the processing capacity can handle 12/24/48 samples simultaneously including the applicability of liquid nitrogen freezing adapters with 12 bit, 24bit and 48 bit configurations. |
Compatible sample volume | 122mL/242mL/48*2mL can be customized into various specifications of grinding tubes as per your requirements. |
Operation | Touch screen |
Feed size | No requirements. Adjust according to the adapter |
Discharge size | ~5μm |
Clamp device | Fastening device with automatic center positioning |
Homogenization rate | 0-70Hz/s |
Operation time | 0 seconds -9999 seconds, variable |
Accelerate and decelerate | Reach a higher/lower speed within 2 seconds |
Noise level | <65DB |
Grinding way | Wet grinding, dry grinding and low temperature grinding |
Dimension | 260*380*495mm |
