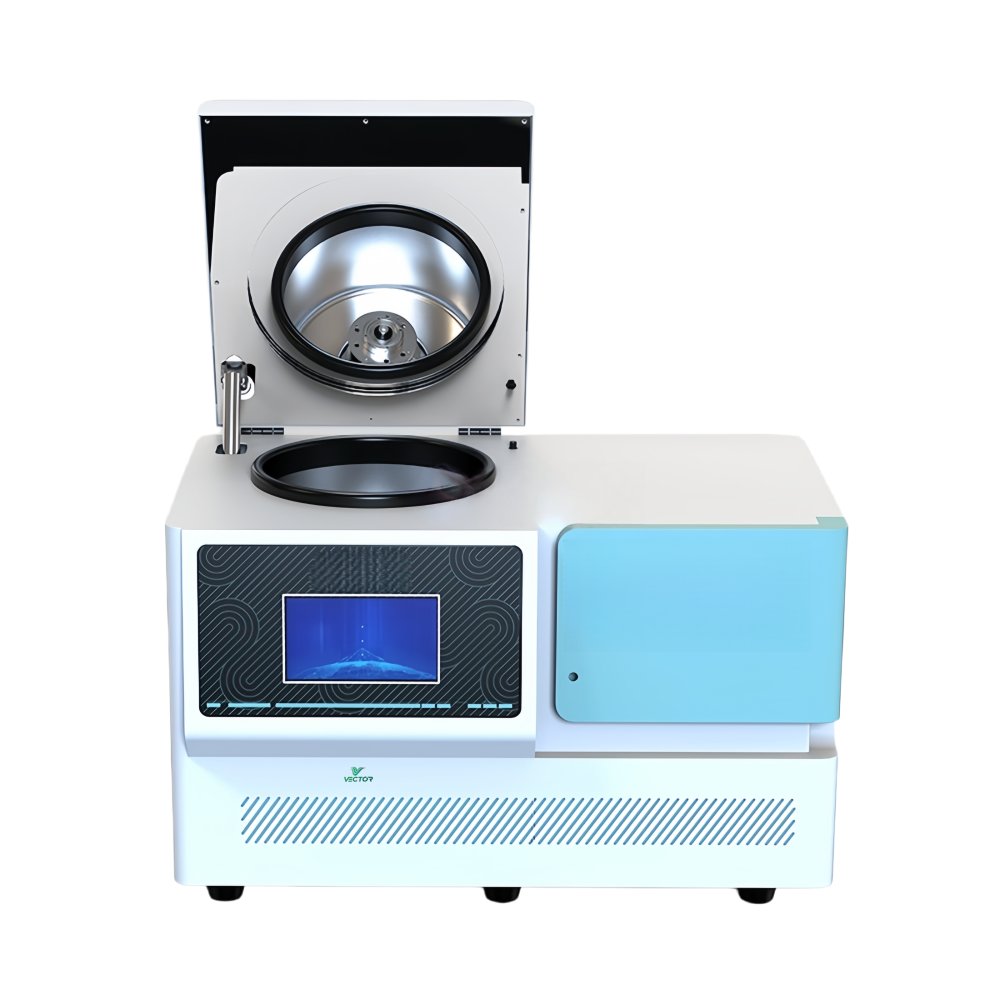

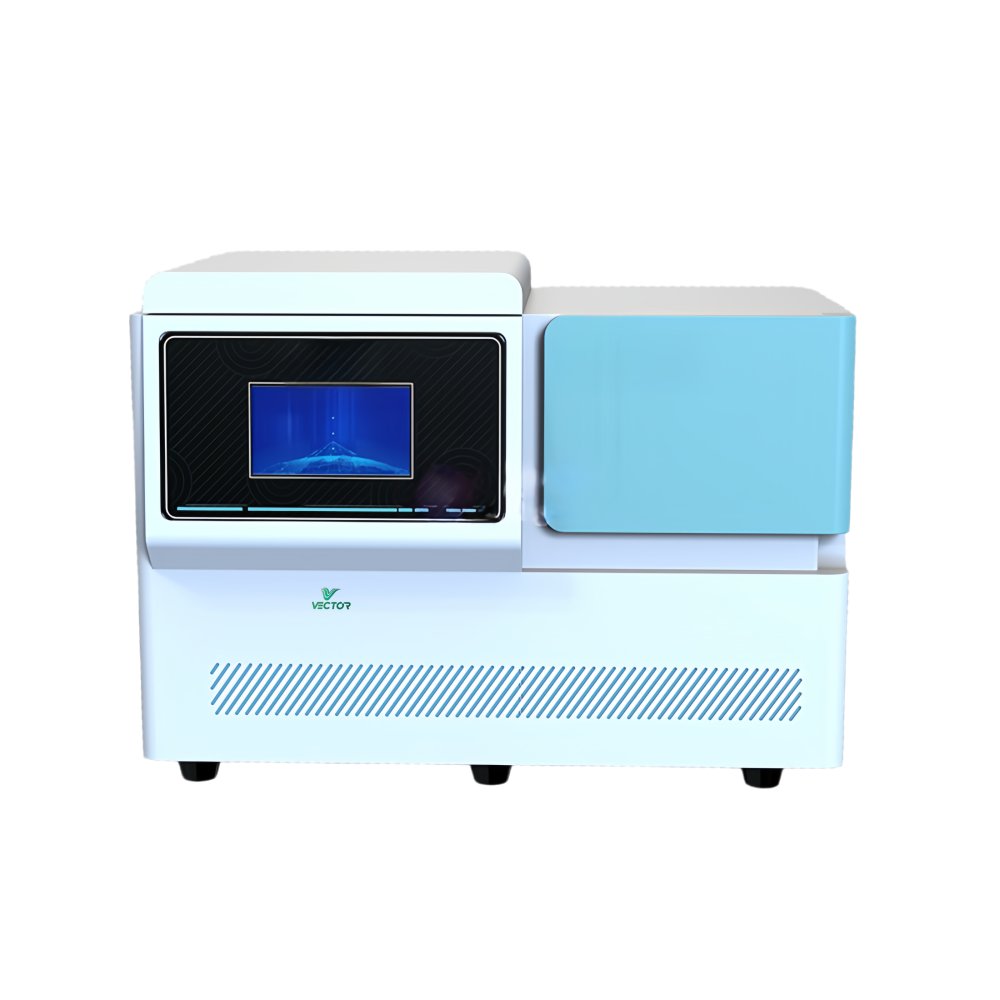

VEC-FS-C Automatic Freezing Grinder
Product Introduction:
VEC-FS-C automatic freezing grinder is equipped with a refrigeration function, capable of reaching -50°C or -30°C, which better protects the activity of the samples. Among them, the vacuum freeze grinder has a unique vacuum device, which not only increases the grinding speed but also reduces noise interference. The cryogenic grinding platform grinder is equipped with a low-temperature grinding platform device, which better protects the activity of the samples.
Product Features
VEC-FS-C automatic freezing grinder features
· Refrigeration adjustable: -50°C to room temperatureHigh-throughput
· Sample processing: Can handle up to 192 samples.
· Excellent grinding effect: Output particle size is 5um.
· Fully enclosed grinding: No cross-infection.
· Stable repeatability: The same grinding procedure yields the same result.
· Program storage: Can store 20 sets of custom grinding programs.
· Time-saving and labor-saving, fast and convenient.Low noise: <55dB, using brushless variable-frequency motor.
· No need for liquid nitrogen operation, high safety.
· No wear-prone parts design, electromagnetic locking protectionStainless steel inner cavity, convenient for cleaning and disinfection。
· No regular maintenance required.
Application
Widely used for the extraction and purification of nucleic acids, proteins and intracellular active substances from samples such as animals, plants and microorganisms; it can also be used for grinding heat-sensitive materials and plastics, and for routine crushing of soft and medium-hard samples such as textiles, PCB boards, paper and soil.
TECHNICAL PARAMETERS
VEC-FS-C Automatic Freezing Grinder Technical Parameters
Model | VEC-FS-C |
Application | Tissue Homogenization, Cell Lysis, Material Dispersion, Grinding |
Max. Sample Capacity | 192 Samples Simultaneously |
Compatible Volumes | 0.2-0.5mL (24/32/48/64 places), 2mL (24/32/48/64/96 places), 5mL (4/12/24 places) 10-15mL (8 places), 25mL/50mL (2 places), 96-Well Plates |
Control & Display | Touchscreen Interface, Intuitive Operation |
Data Storage | 20 Sets of Customizable Modes (Heart/Spleen/Lung/Kidney/Bone/Skin/Hair) |
Mixing Mode | Continuous Cycle Mode for Consistent Results |
Temperature Control | -50°C to RT, ±0.5°C Accuracy |
Key Performance | Particle Size ~5μm; Accel/Decel: 2s to Max/Low Speed |
Dynamic Range | Frequency 0-70Hz; Time 0-9999s |
Grinding Options | Wet, Dry, Cryogenic Grinding |
Components | 2+ Stations, Self-Centering Fixture, PTFE/Alloy Steel Adapters |
Ball Specs | 0.1-30mm (Stainless/Chrome/Zirconia/Tungsten/Quartz) |
Safety | Lid Lock, Overrun Protection |
Dimensions/Weight | 700×410×450mm / 82.5kg |
