High-Energy Planetary Ball Mill for Ultra-Fine Grinding of Diverse Materials

VEC-SF Planetary Ball Mill

Product Introduction:

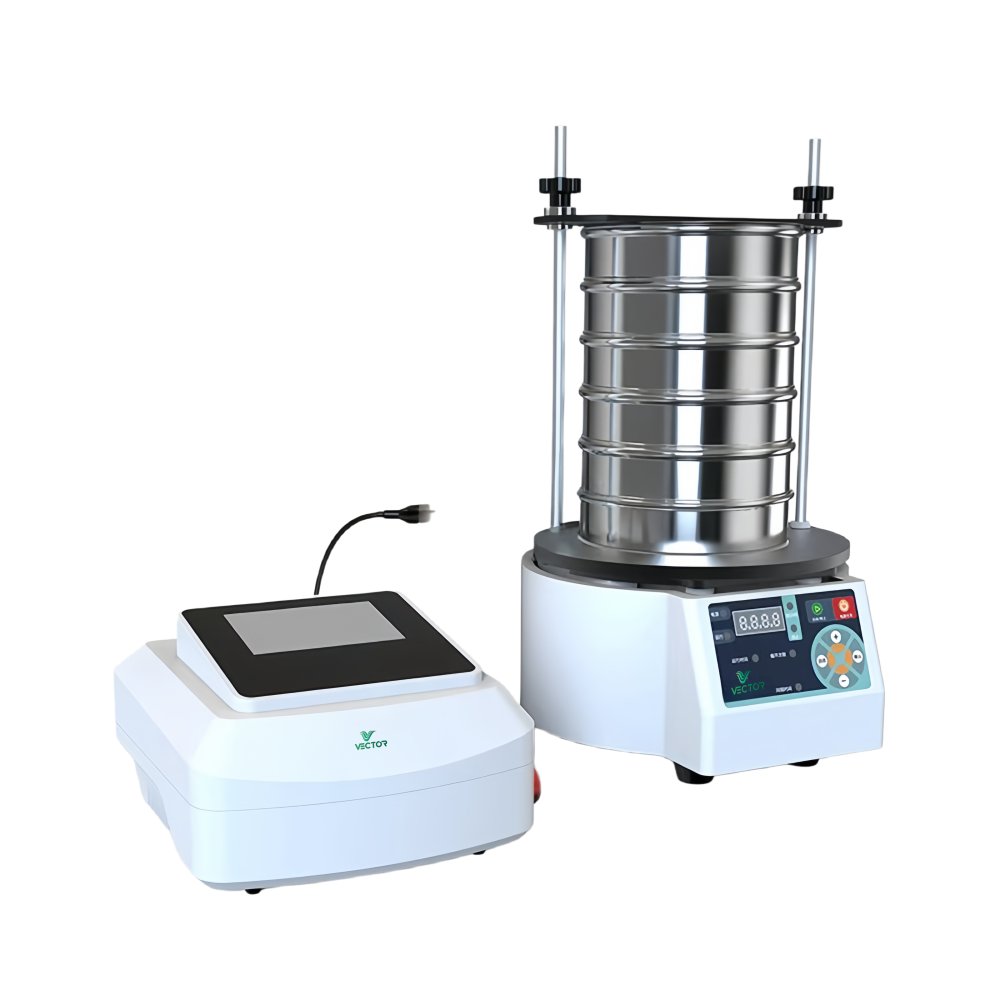

The VEC-SF planetary ball mill disperses the materials on the screen through their respective vibration methods and allows them to pass through the sieve holes. The smaller particles pass through the sieve holes and fall into the collection container below, while the larger particles remain on the screen, thereby enabling the particle materials to undergo size analysis and screening classification.

Product Features

VEC-SF planetary ball mill features

· It operates smoothly and quietly with low noise and high efficiency, ensuring that the

samples are evenly distributed across the entire mesh surface.

· The top cover is made of stainless steel, in line with pharmaceutical standards, preventing powder from overflowing during the sieving process.

· The ultrasonic wave has a power adjustment function. Depending on the specific properties of different materials, such as their specific gravity, particle size, and structural characteristics, different powers can be selected to achieve high efficiency sieving.

· The industrial-grade sieve has a 100-mesh coarse mesh material of brass, mainly due to the good ductility of the brass mesh. The 100-mesh fine ones are made of 304 stainless steel. The sieve

Application

VEC-SF planetary ball mill is widely applied in industries such as pharmaceuticals, mining, metallurgy, chemical engineering, building materials, and food, and is used for quality control of raw materials and particle size detection of products, etc.

TECHNICAL PARAMETERS

VEC-SF Planetary Ball Mill Technical Parameters

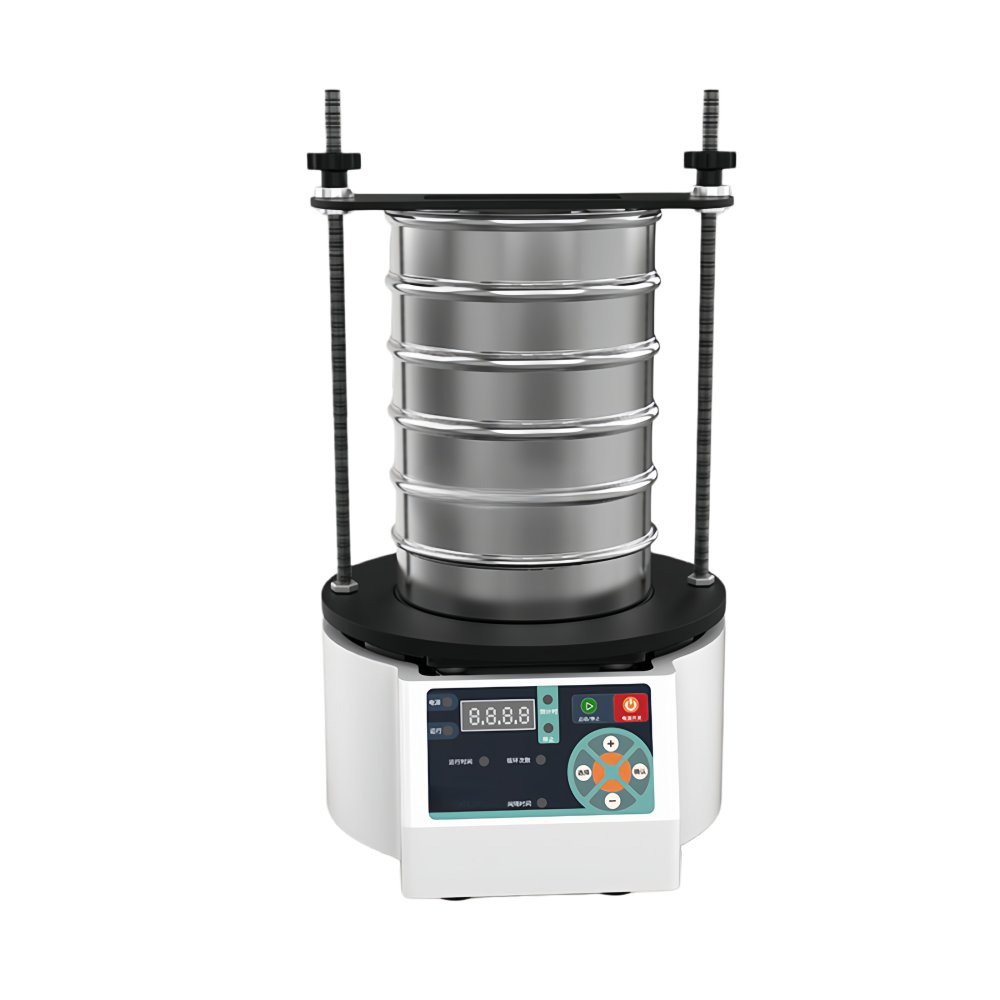

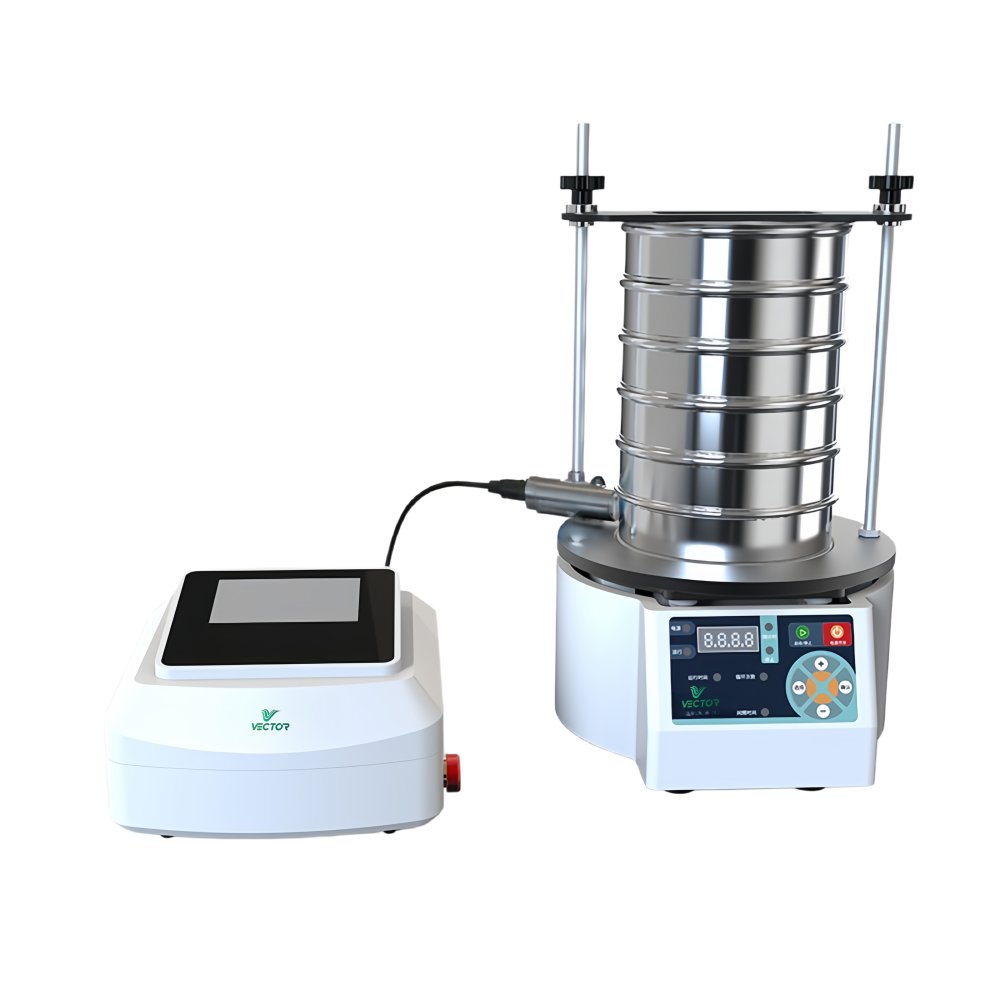

Name	Mechanical Vibratory Sieve Shaker VEC-SF-U2	Ultrasonic Vibratory Sieve Shaker VEC-SF-U1	Ultrasonic Vibratory Sieve Shaker (Wet) VEC-SF-U1-WT	Mechanical Vibratory Sieve Shaker (Wet) VEC-SF-U2-WT
Model	VEC-SF-U2	VEC-SF-U1	VEC-SF-U1-WT	VEC-SF-U2-WT
Standard Sieves	1-8 layers	1-8 layers	1-6 layers	1-6 layers
Single Batch Capacity	≤3 kg	≤3 kg	≤3 kg	≤3 kg
Time Setting	0-99 min 59 s	0-9999 s (shared for dry/wet ultrasonic/electromagnetic models)	1-9999 s
Measuring Range	0.038-3 mm	5 μm-125 mm	5 μm-125 mm	20 μm-125 mm
Dry/Wet Sieving	Dry only	Dry only	Dry & Wet	Dry & Wet
Power	125 W	125 W	250 W	250 W
Frequency	/	Ultrasonic generator frequency: 18~35 kHz	/	/
Speed	1420 r/min	/	3000 r/min	3000 r/min

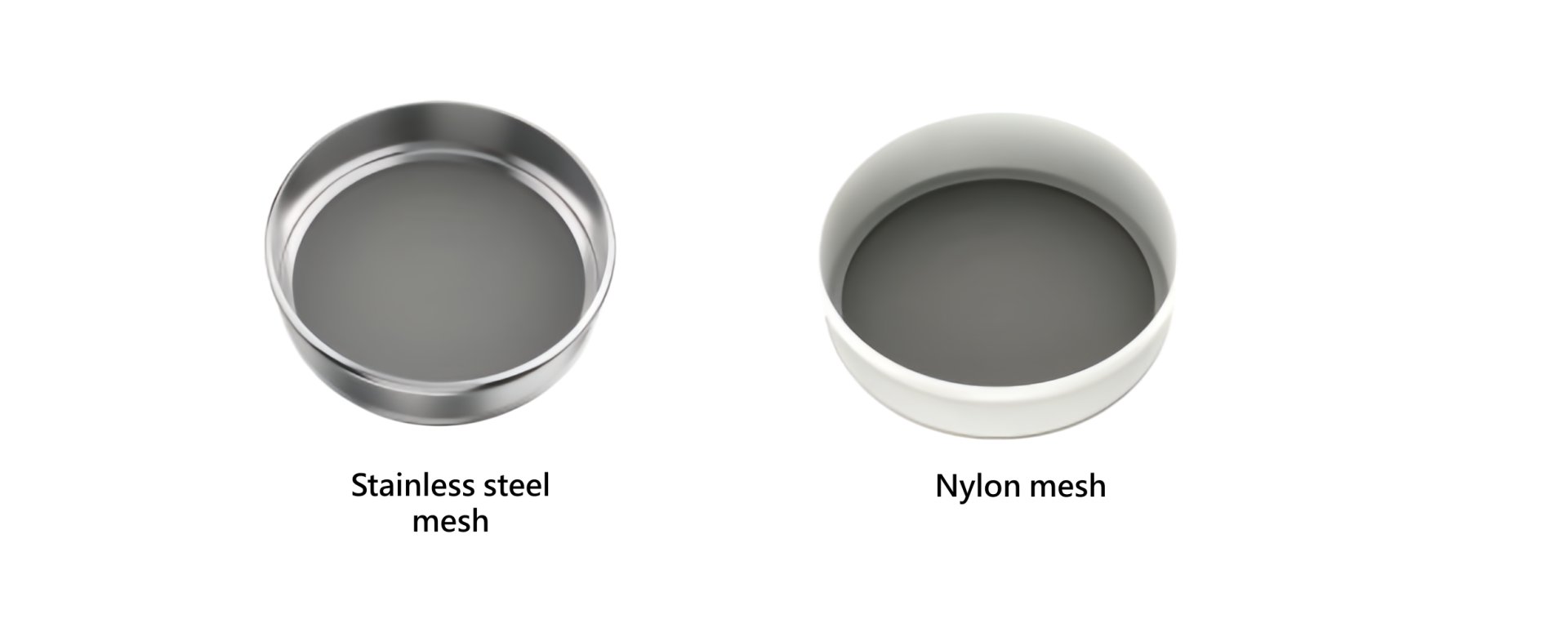

Sieve Mesh

Stainless Steel Mesh			Nylon Mesh
Mesh Count	Mesh Count	Mesh Count	Mesh Count	Mesh Count	Mesh Count
10 mesh	120 mesh	280 mesh	10 mesh	120 mesh	220 mesh
20 mesh	150 mesh	300 mesh	20 mesh	140 mesh	250 mesh
30 mesh	180 mesh	400 mesh	30 mesh	150 mesh	300 mesh
50 mesh	200 mesh	450 mesh	50 mesh	160 mesh	350 mesh
80 mesh	220 mesh	500 mesh	80 mesh	180 mesh	400 mesh
100 mesh	250 mesh	600 mesh	100 mesh	200 mesh	500 mesh
