Automated High-Throughput Grinder for Multi-Sample Biological & Industrial Processing

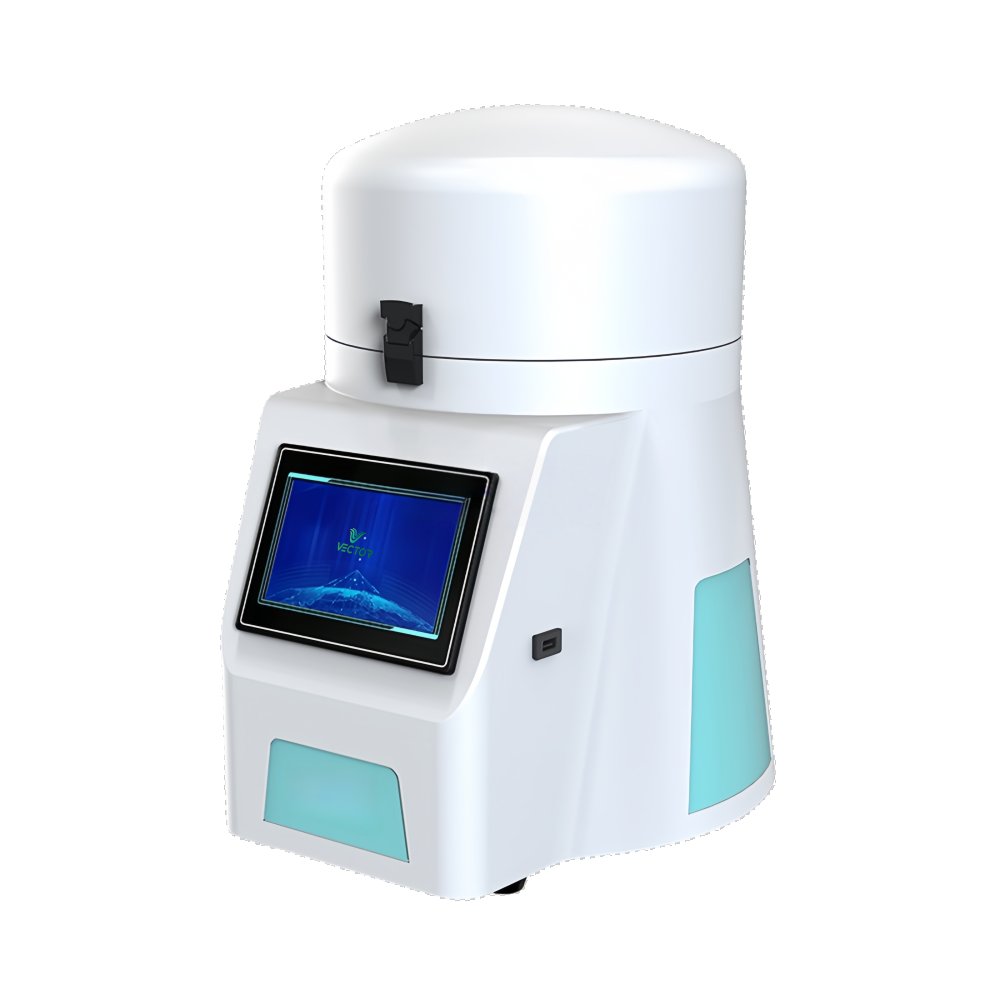

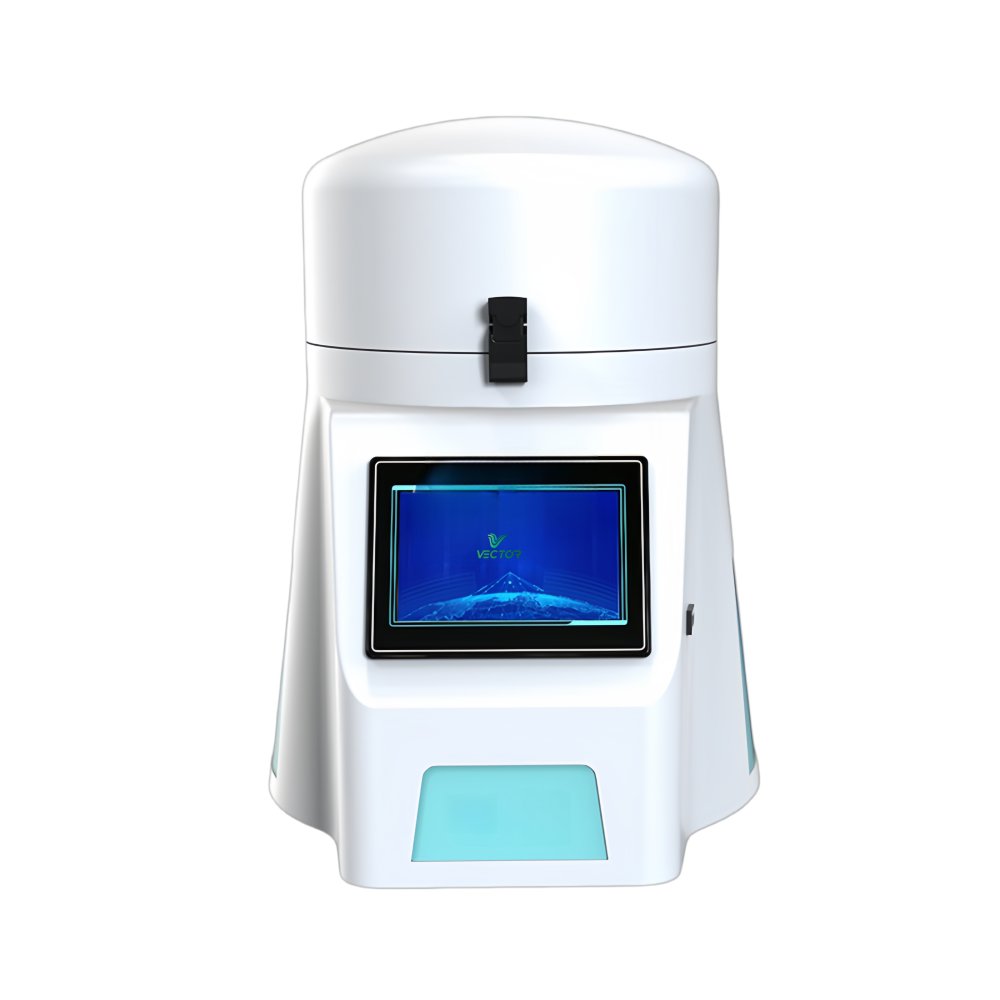

VEC-FS High-Throughput Automatic Grinder

Product Introduction:

The VEC-FS high-throughput automatic tissue grinder is a flexible, fast and highly efficient multi-functional biological sample grinder that integrates grinding, disruption and homogenization functions. Through vertical up-and-down and left-and-right shaking, it generates an 8-shaped three-dimensional high-speed vibration, which assists the tapping and impact of grinding beads (glass beads, ceramic beads, steel beads, etc.) to achieve the purpose of grinding, disruption and homogenization of the samples. The special three-dimensional integrated vibration mode ensures more thorough and complete sample grinding.

Product Features

VEC-FS High-throughput automatic grinder features

· Flexible grinder: By changing different main units and adapters, it can handle up to 384 tubes;

· High safety: The samples work in a sealed disposable grinding tube, protecting the safety of the operators;

· No waste: The samples work in a sealed disposable grinding tube, not wasting any sample, in and out as they come;

· High automation level: Start with one click, wait for the result;

· High stability: With lid-opening protection function, built-in noise-reducing cover and adapter pressing cover, multiple protections;

· Simple operation: Just one knob is needed to fix the adapter;

· Imported components authorized by Germany's IBIDI, with more powerful effect.

Application

It is suitable for grinding and crushing various animal and plant tissues, microbial samples, food, medicine, volatile samples, plastics, polymers, hair, bones, chlorophyll A, soil and other samples.

TECHNICAL PARAMETERS

VEC-FS High-Throughput Automatic Grinder Technical Parameters

Model	VEC-FS-24L	VEC-FS-32L	VEC-FS-48L	VEC-FS-64L
Sample Throughput	24(0.2-0.5) mL、242 mL、4/12/245 mL 8(7-15 ) mL、2*25/50 mL Grinding Jars	32(0.2-0.5) mL、322 mL、4/12/245 mL、8(7-15 ) mL 2*25/50 mL Grinding Jars	48(0.2-0.5) mL、482 mL、4/12/245 mL、8(7-15 ) mL 2*25/50 mL Grinding Jars	64(0.2-0.5) mL、642 mL、4/12/245 mL、8(7-15 ) mL 2*25/50 mL Grinding Jars
Customizable	Custom grinding tubes of various specifications available	Custom grinding tubes of various specifications available	Custom grinding tubes of various specifications available	Custom grinding tubes of various specifications available
Rated Power	90 W	150 W	200 W	250 W
Frequency	0-70 Hz	0-70 Hz	0-70 Hz	0-70 Hz
Particle Size	~5 μm	~5 μm	~5 μm	~5 μm
Time Setting	0-9999 seconds, user-definable	0-9999 seconds, user-definable	0-9999 seconds, userdefinable	0-9999 seconds, user-definable
Noise Level	< 55 DB	< 55 DB	< 55 DB	< 55 DB
Grinding Ball Diameter	0.1-30 mm	0.1-30 mm	0.1-30 mm	0.1-30 mm
Grinding Ball Material	Stainless Steel, Chrome Steel Zirconia Oxide, Tungsten Carbide, Quartz Sand	Stainless Steel, Chrome Steel, Zirconia Oxide Tungsten Carbide, Quartz Sand	Stainless Steel, Chrome Steel, Zirconia Oxide Tungsten Carbide, Quartz Sand	Stainless Steel, Chrome Steel, Zirconia Oxide Tungsten Carbide, Quartz Sand
Grinding Mode	Wet grinding, Dry grinding, Cryogenic grinding	Wet grinding, Dry grinding, Cryogenic grinding	Wet grinding, Dry grinding, Cryogenic grinding	Wet grinding, Dry grinding, Cryogenic grinding
Display Mode	Touch screen display for intuitive and convenient operation	Touch screen display for intuitive and convenient operation	Touch screen display for intuitive and convenient operation	Touch screen display for intuitive and convenient operation
Data Storage	Stores up to 20 sets of experimental data customizable modes for different samples	Stores up to 20 sets of experimental data customizable modes for different samples	Stores up to 20 sets of experimental data customizable modes for different samples	Stores up to 20 sets of experimental data customizable modes for different samples
Cycle Mode	Cycles through pre-set parameters continuously to minimize human interference	Cycles through pre-set parameters continuously to minimize human interference	Cycles through pre-set parameters continuously to minimize human interference	Cycles through pre-set parameters continuously to minimize human interference
