VEC-Tissuelyser-L
VEC-Tissuelyser-L is a high-throughput multi-sample tissue homogenizer. It is a rapid, highly efficient, multi-tube, and cross-contamination-free grinding device.

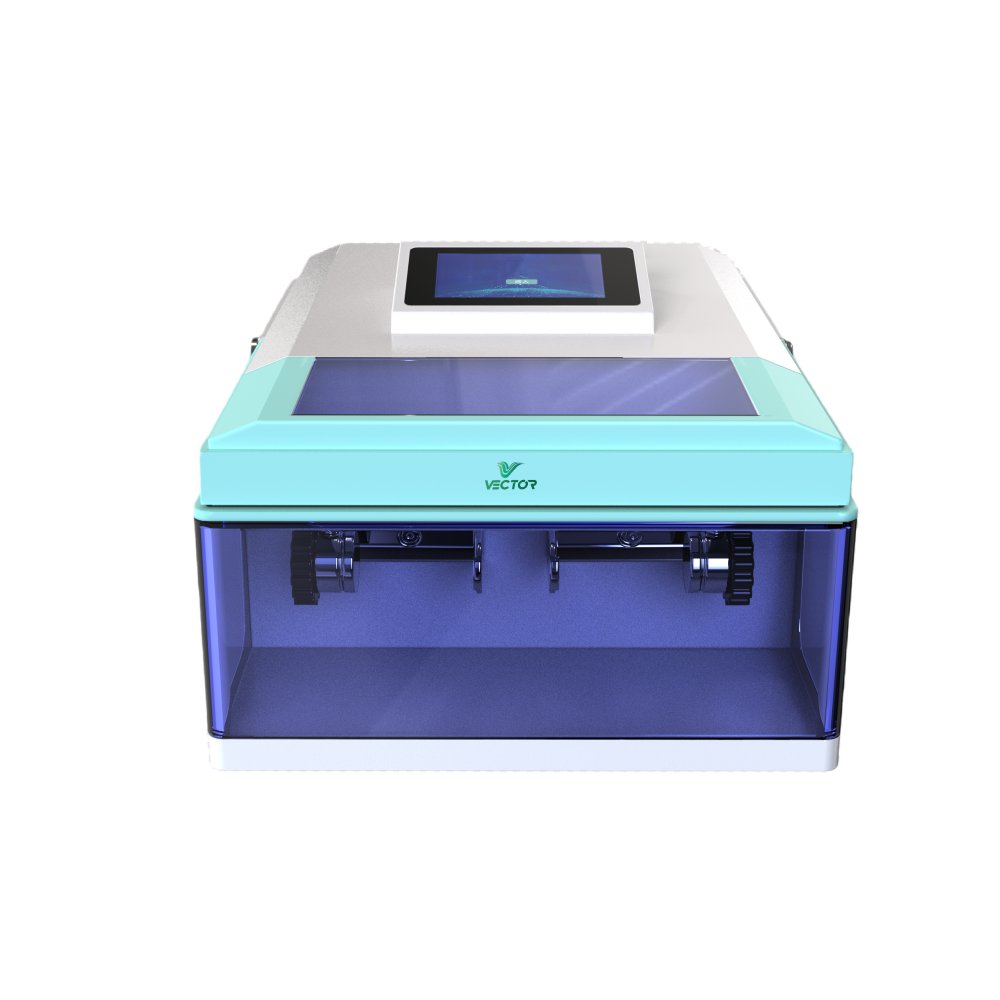

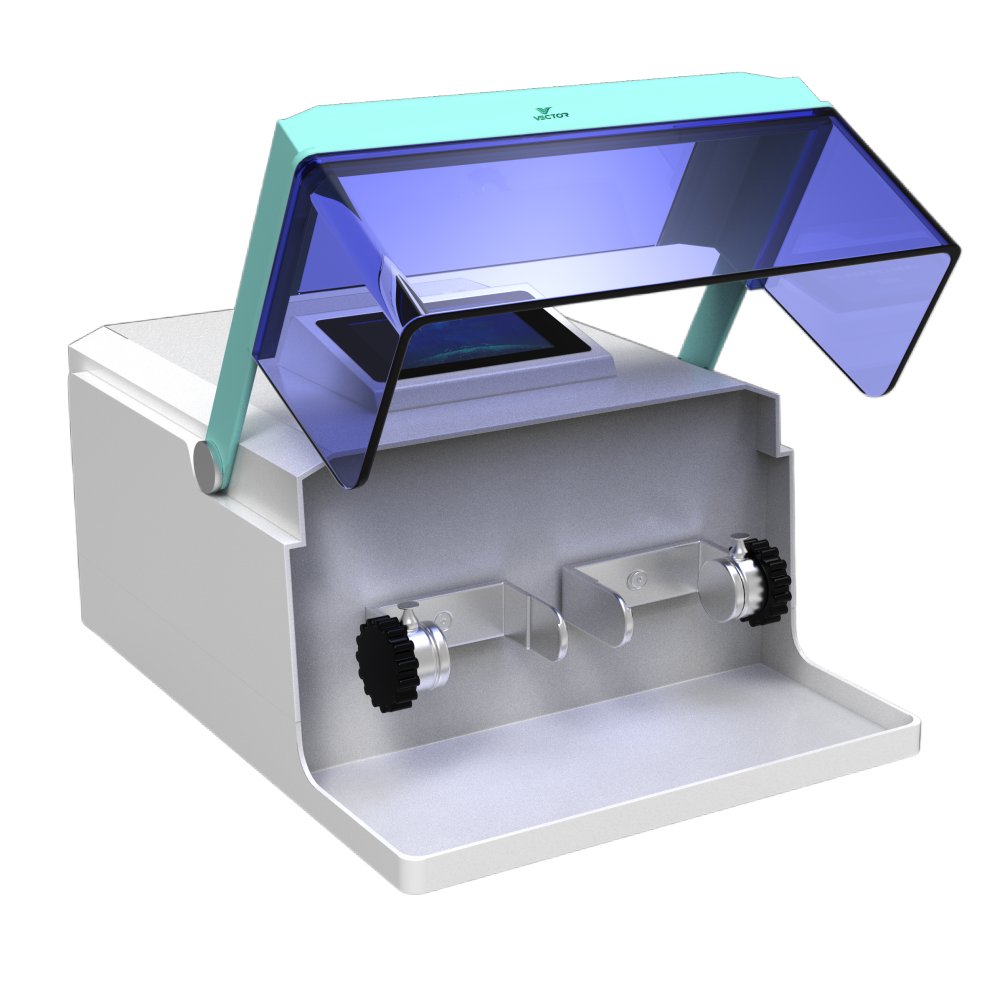

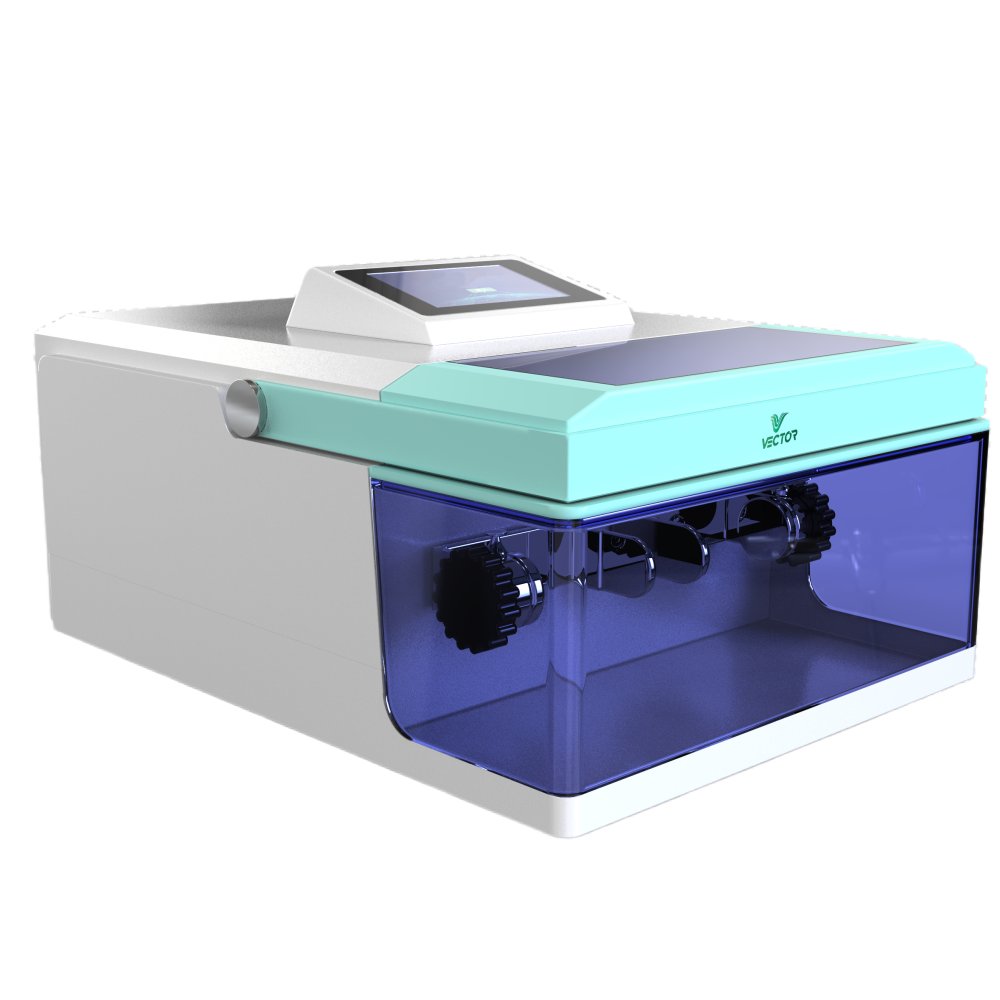

VEC-Tissuelyser-II High-Throughput Grinder
Product Introduction:
The VEC-Tissuelyser-II high-throughput grinder uses an electric motor to drive a pair of horizontally vibrating arms. Through the irregular impacts and friction caused by the grinding beads as they move back and forth within the sample tube, it can easily achieve the grinding, pulverization, mixing and cell lysis of the samples within seconds to minutes.
Grinding can achieve a particle size of 5 micrometres. Designed to meet the requirements of physical and chemical analysis laboratories, it is equipped with grinding jars of various volumes and materials, enabling dry, wet and cryogenic grinding, as well as cell lysis and DNA/RNA extraction.
Product Features
VEC-Tissuelyser-II high-throughput grinder features
· High-performance: Capable of rapid and e[cient grinding of 192 samples, with a shaking timer ranging from 0 to 9999 seconds. Adapters can be easily swapped to accommodate different sample volumes.
· Comprehensive range of accessories: Choose from adapters for 2mL x 28, 2mL x 48, 5mL x 12, or 2mL x 96 centrifuge tubes, or 25mL/50mL grinding jars.
·Intelligent operation: Featuring a large touchscreen display, the system is simple to operate and safe to use, delivering highly reproducible grinding results.
·Zero sample contamination: The compartmentalised design utilises sealed sample tubes to prevent crosscontamination.
·Preservation of sample properties: By pre-chilling both the samples and the grinding jars, the system successfully processes heat-sensitive and elastic materials, minimising sample evaporation and preserving the sample composition.
Application
VEC-Tissuelyser-II high-throughput grinder is widely applied in various industries such as biomedicine, forensic science, criminal investigation, agriculture, geology and chemical engineering, ROHS, toys, environmental quality inspection, and universities. Among them, the high-throughput soil grinding instrument is highly favored by soil grinders.
TECHNICAL PARAMETERS
VEC-Tissuelyser-II High-Throughput Grinder Technical Parameters
Model | Tissuelyser-II |
Maximum injection size | ≤8mm |
Final output particle size | ~5 μm (There are differences in grinding fineness for different materials) |
Handle the sample volume | 1 192pc |
Specifications | 2ml* 96 well plate 2/2ml28*2/25m grinding jar *2/50ml grinding jar *2 |
2ml* 96well plate 2/2ml28*2/25m grinding jar *2/50ml grinding jar *2 | 2(Number of grinding jars that can be accepted) |
Vibration frequency setting | 0-70Hz |
Typical crushing time | 2min |
Dry grinding | Yes |
Wet grinding | Yes |
Cryogrinding | Yes |
Clamp device | Fastening device with automatic center positioning |
Types of grinding jars | Screw cap type grinding jar |
Screw cap type grinding jar | Titanium alloy, stainless steel, Teflon, polyethylene (other materials can be customized) |
Grinding tube size | 15ml/25ml/50ml |
The crushing time setting is digitally displayed | 0 seconds -9999 seconds |
Drive | inverter motor |
Power | 150W |
Dimension | 490mm380mm270mm |
Weight | 26.7kg |
Motor power | 90W |
Speed | 2800rpm |
INQUIRE IMMEDIATELY
