VEC-Tissuelyser-L

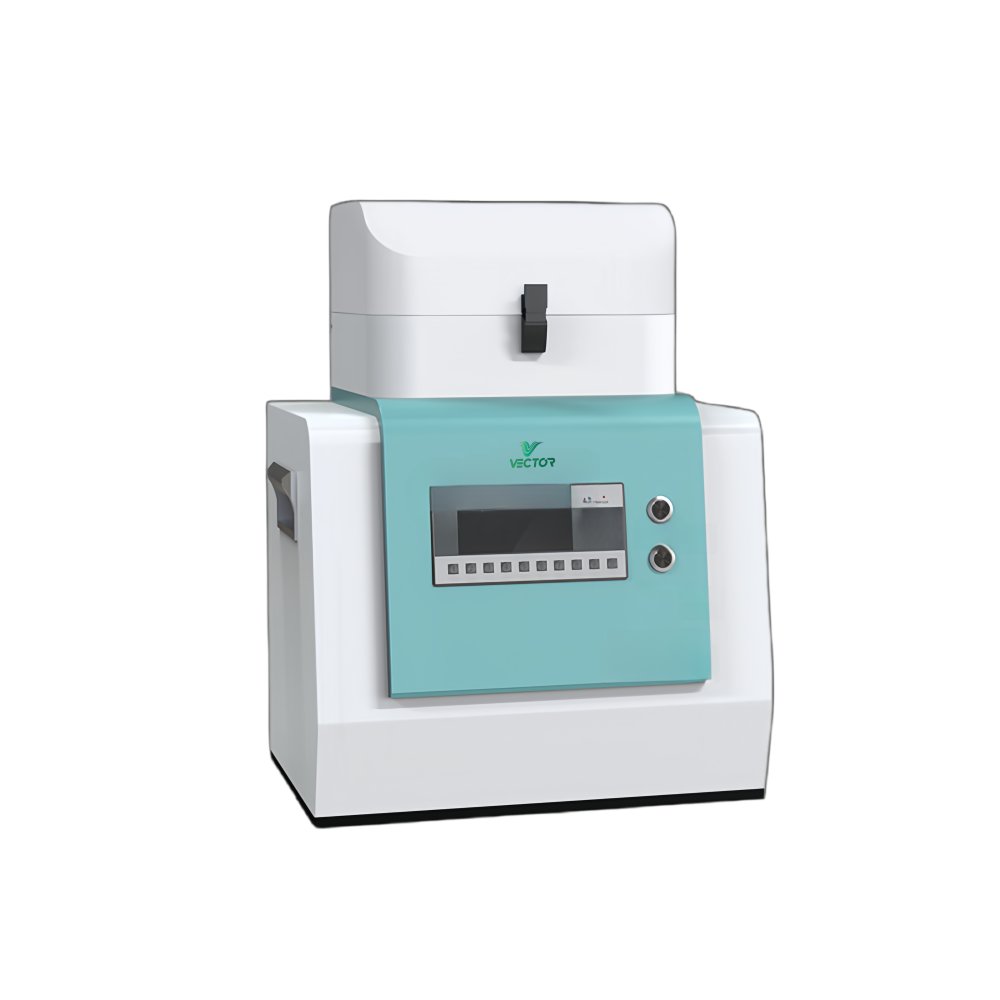

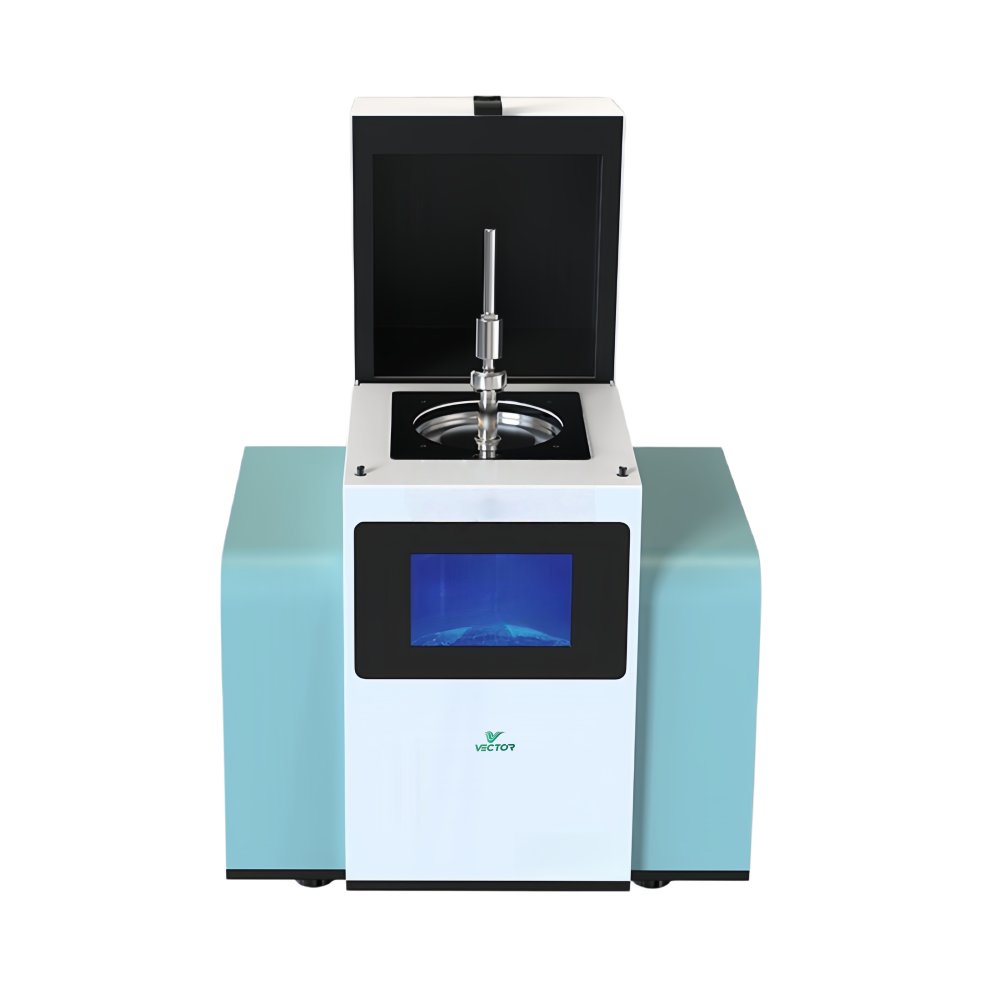

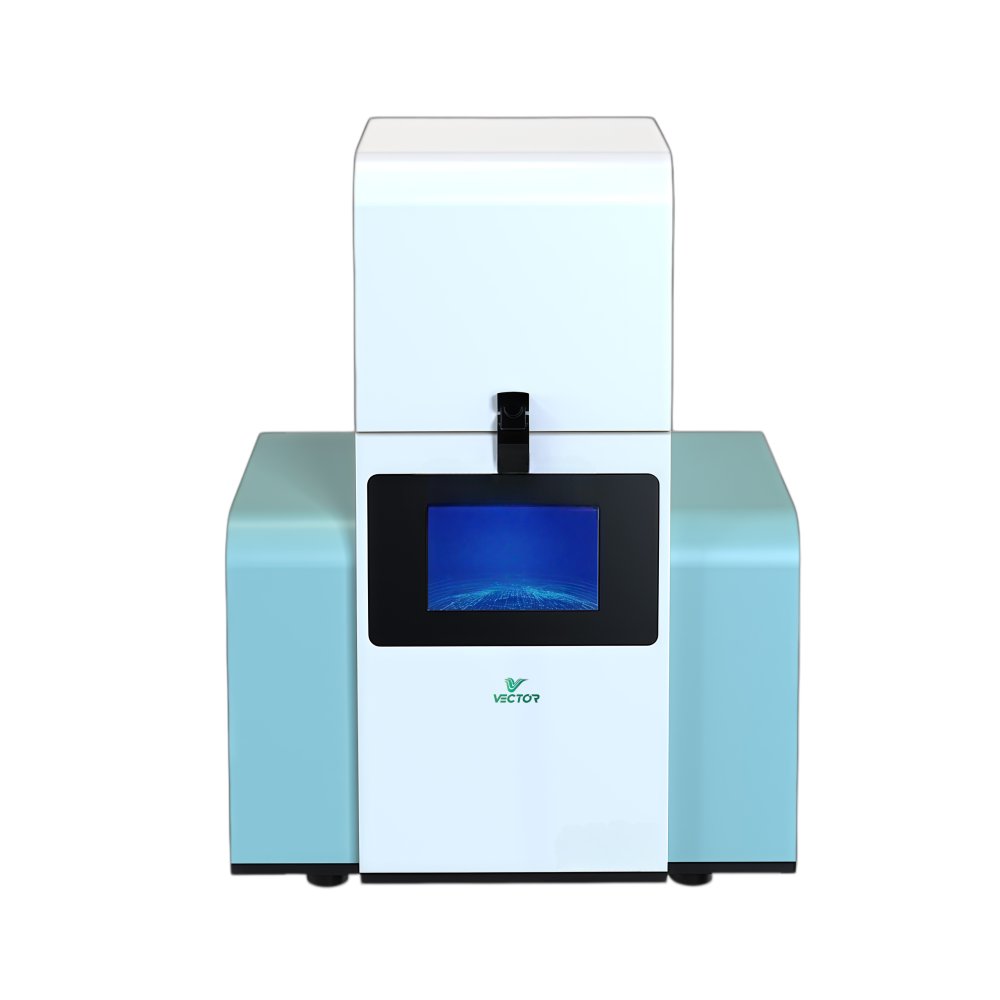

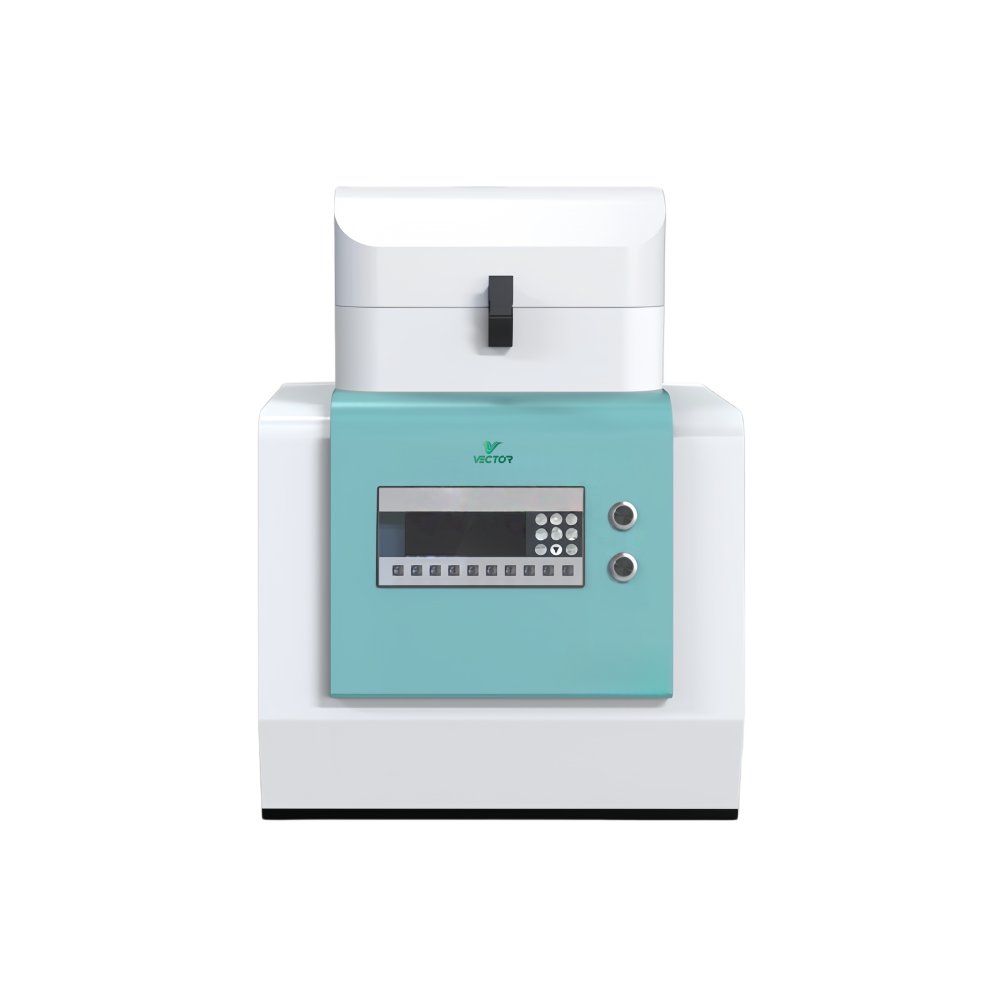

VEC-Tissuelyser-L is a high-throughput multi-sample tissue homogenizer. It is a rapid, highly efficient, multi-tube, and cross-contamination-free grinding device.
VEC-Tissuelyser-L
Product Introduction:
VEC-Tissuelyser-L is a high-throughput multi-sample tissue homogenizer. It is a rapid, highly efficient, multi-tube, and cross-contamination-free grinding device. It is a multi-tube, and cross-contamination-free grinding device. It can perform dry grinding, wet grinding, low-temperature grinding, sample mixing, and homogenization processing.
Product Features
VEC-Tissuelyser-L high-throughput multi-sample tissue homogenizer features
· Suitable for low-temperature operation; sample adapters can be immersed in liquid nitrogen prior to grinding
to prevent cross-contamination.
· Prevents cross-contamination between samples and contamination from external sources.
· Applying the same programme to samples from the same tissue yields consistent grinding results.
· Features a lid-opening safety mechanism, ensuring excellent safety and stability.
· User-friendly interface design for straightforward operation.
· High sample throughput, excellent grinding results, saving time and effort.
Application
Suitable for grinding and crushing various animal and plant tissues, microbial samples, food, medicine, volatile samples, plastics, polymers, textiles, resins, criminal investigation and judicial samples, as well as environmental protection systems, etc.
TECHNICAL PARAMETERS
VEC-Tissuelyser-L Technical Parameters
Model | VEC-Tissuelyser-24L | VEC-Tissuelyser-32L | VEC-Tissuelyser-64L | VEC-Tissuelyser-96L |
Display | Keypad version | Keypad version | Keypad version | Keypad version |
Sample Throughput | 24*(0.2-0.5 mL) 242 mL 6/8(7-15) mL 2*25/50 mL grinding jars | 32*(0.2-0.5 mL) 322 mL 6/8(7-15) mL 2*25/50 mL grinding jars | 64*(0.2-0.5 mL) 642 mL, 125 mL 8*(7-15) mL 2*25/50 mL grinding jars | 96*(0.2-0.5 mL) 962 mL, 485 mL 24*(7-15) mL,425 mL 225/50 mL grinding jars |
Power | 90 W | 150 W | 250 W | 300 W |
Frequency | 0-70 Hz (shared) | 0-70 Hz (shared) | 0-70 Hz (shared) | 0 70 Hz (shared) |
Grinding Ball Diameter | 0.1~30 mm (shared) | 0.1~30 mm (shared) | 0.1~30 mm (shared) | 0.1~30 mm (shared) |
Grinding Ball Material | Stainless steel, chrome steel, zirconia, tungsten carbide quartz sand (shared) | Same as left | Same as left | Same as left |
Grinding Mode | Dry grinding, wet grinding, cryogenic grinding (shared) | Same as left | Same as left | Same as left |
Time Setting | 0~9999 s, user adjustable (shared) | Same as left | Same as left | Same as left |
Noise Level | < 55 dB (shared) | < 55 dB (shared) | < 55 dB (shared) | < 55 dB (shared) |
Upgradable Cryo Function | Yes (shared) | Yes (shared) | Yes (shared) | Yes (shared) |
